Heavy Duty Galvanized Steel Anti-slip Trench Cover Floor Bar Grating
Price:
Negotiable
MOQ:
2PCS
Delivery Time:
Shipped in 20 days after payment
Brand:
Gnee
Product Description
Heavy Duty Galvanized Steel Welded Serrated Anti-slip Trench Cover Floor Bar Grating
Press-locked steel bar grating manufactured through a precision process of slotting, pressure lock plug insertion, and finishing. At each intersection point, horizontal poles are pressed into the loading flat steel and securely fixed. In some configurations, flat steel is also used for the horizontal poles.
Applications
This versatile grating is widely used for flooring, catwalks, mezzanines, decking, stair treads, fencing, vault bin floors, ramps, docks, warehouses, trench covers, window and machinery safety guards, wash racks, ventilation screens, storage racks, suspended ceilings, and drainage pit covers.
Customization Options
- Bearing bar depth
- Bearing bar thickness
- Bearing bar pitch
- Cross bar pitch
- Span and width (mesh size)
Common Applications

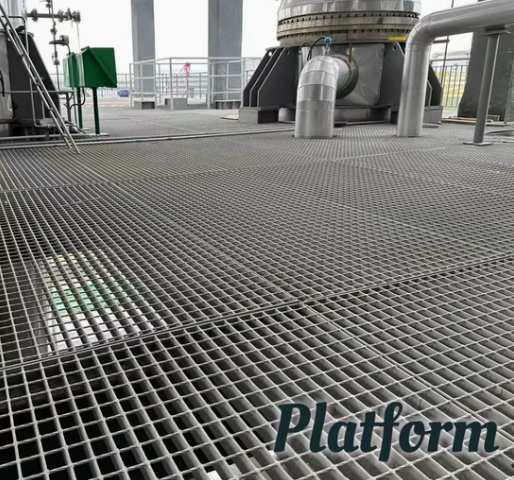

Flooring, catwalks, decking, stair treads, fencing, ramps, docks, trench covers, drainage pit covers, maintenance platforms, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment areas, and heavy equipment zones.
Product Specifications
Series 1: Standard Load Steel Sizes
| Bearing Bar Pitch | Cross Bar Pitch | 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G203/50/60 | G253/50/60 | G323/50/60 | G403/50/60 | G205/50/60 | G255/50/60 |
Series 2: Heavy Duty Load Steel Sizes
| Bearing Bar Pitch | Cross Bar Pitch | 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
|---|---|---|---|---|---|---|---|
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G605/30/50 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/50/60 | G405/50/60 | G455/50/60 | G505/50/60 | G555/50/60 | G605/50/60 |
Product Images
