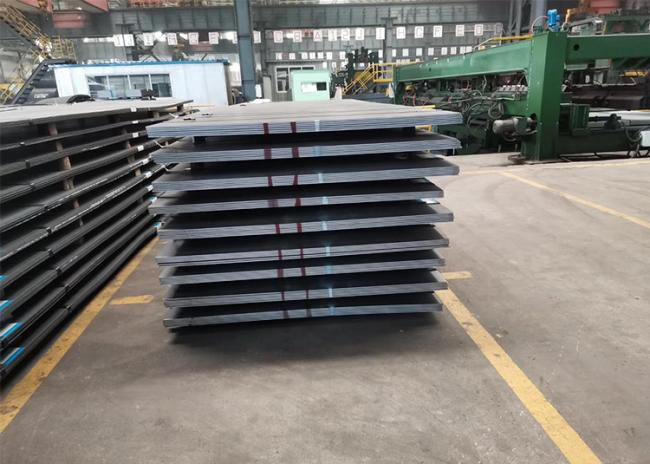

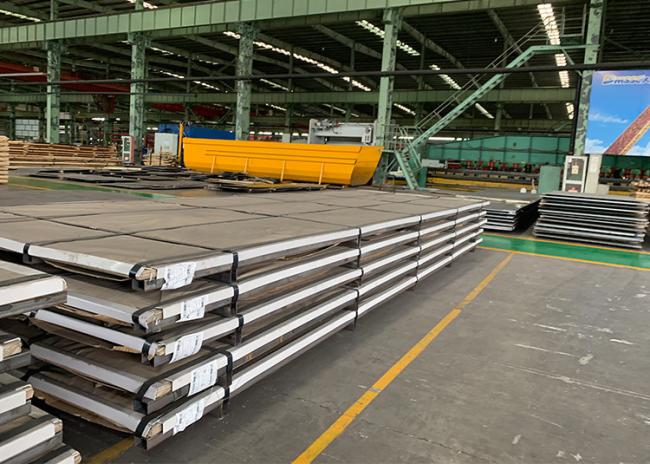

Astm A516 Gr70 Boiler Plate Astm A516 Grade 70 Pressure Vessel Steel Plate
Astm A516 Gr70 Boiler Plate Astm A516 Grade 70 Pressure Vessel Steel Plate
|
Product Name
|
Pressure vessel steel plate/sheet price per kg
|
|
Standard
|
ASTM,AISI,DIN,JIS,GB,EN
|
|
Thickness
|
1mm-300mm
|
|
Width:
|
600mm-3200mm
|
|
Length
|
1m-12m,as to requirement
|
STM A516 is the standard specification for making pressure vessels (such as oil tanks), material in carbon steel for moderate and lower temperature services, it will improve the notch toughness of the steel during the welding work. ASTM A516 Grade 70 - Common Use Grade
ASTM A516 Grade 70 Plate is also called out as ASME SA516-70. This steel plate grade is a medium carbon alloy that also contains amounts of manganese, phosphorus, sulfur, and silicon. A516 is primarily used for service in welded pressure vessels where improved notch toughness is required.
| A516 Grade 70 Chemical Composition | |||||
| Grade | The Element Max (%) | ||||
| C | Si | Mn | P | S | |
| A516 grade 70 | |||||
| Thick <12.5mm | 0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick12.5-50mm | 0.28 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick50-100mm | 0.30 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick100-200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Thick>200mm | 0.31 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
| Grade | A516 Grade 70 Mechanical Property | |||
| Thickness | Yield | Tensile | Elongation | |
| A516 grade 70 | mm | Min Mpa | Mpa | Min % |
| 6-40 | 260 | 485-620 | 21% | |
| 40-100 | 260 | 485-620 | 17% | |
We Gnee specialized in wear resistant Steel Plate,weather resistant steel plate,alloy steel plate,high strength steel plate,wear resistant composite plate, tank plate, high pressure vessel plate, ship steel plate.We have friends all over the word,we welcome them come to our company visiting,working together and inspecting the product before delivery.We expect you visiting our company,and have a nice trip.
Our main product include Steel plate/Pipe/Round steel/Stainless steel and so on,Middle east/Southeast Aisa and south America is our main market.All of our product passed International testing organization Inspection.
A: Our company located in Tianjin China.
Q: How long is your delivery time?
A: Generally is 7-10 working days of goods in stock, or 20-30 days if goods are not in stock, it is according to quantitiy.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q:. What kind of terms of payment?
A: T/T, L/C,Western Union Alipay,Cash are available.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
