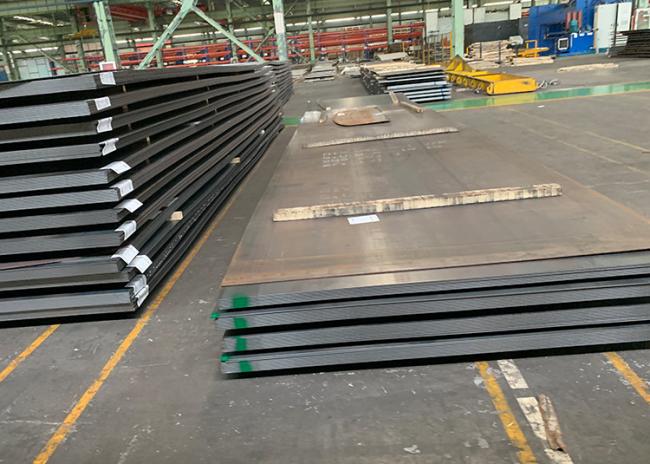

Astm A517 Grade P Steel Plate A517 Hot Rolled Steel Sheet Astm A517 Hot Rolled Steel Plates
The ASTM A517 specification is the Standard Specification for Pressure Vessel Plates, Alloy Steel, High-Strength, Quenched and Tempered material used in the application of fusion welded boilers and pressure vessels.
| Product name | astm a517 plate price per kg |
|
Technical Standard |
ASTM |
| Grade | A517 grade P |
| Width | 1500~3500mm |
| Length | As request |
| Width Tolerance | +/-5% |
| Thickness | 2-60mm |
| Bundle Weight | Usually 5MT, as per customer’s request |
| Surface | Plain or checkered |
| Certificates | SGS |
| Shiping | Buyer's marks and common information of the goods, including commodity / standard / grade / net weight ,etc |
| Package | Mill's standard exporting package(bared with strips) |
A517 grade P Chemical Composition Max (%)
| Grade | C | Si | Mn | P | S | Ni |
| A517 grade P | 0.10-0.23 | 0.18-0.37 | 0.40-0.78 | 0.035 | 0.035 | 1.15-1.55 |
| Cr | Mo | B | ||||
| 0.79-1.26 | 0.41-0.64 | 0.001-0.005 |
A517 grade P Mechanical Property
| Grade | Thickness | Yield | Tensile | Elongation |
| A517 grade P | mm | Min Mpa | Mpa | Min % |
| 6-65 | 690 | 795-930 | 16% | |
| 65-150 | 620 | 725-930 | 14% |
Application of A517 Grade A steel plate:
A517 grade A steel plate is the Specification for Pressure Vessel Plates, High-Strength, Alloy Steel, Quenched and Tempered material suitable to use in the boilers and pressure vessels application.Typical applications include unfired vessels and tanks.
