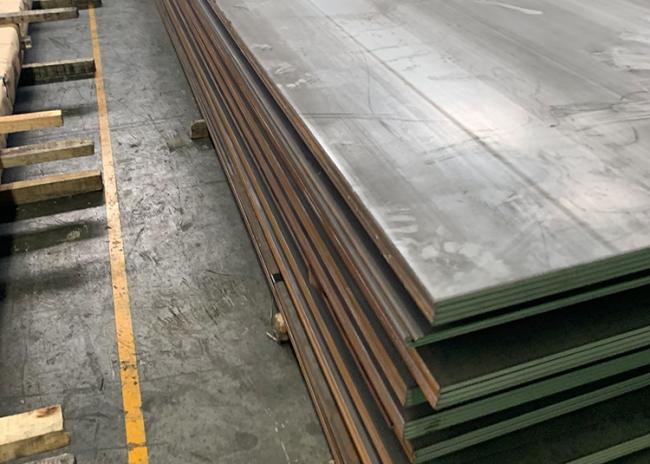

P265gh Steel Plate P265gh Hot Rolled Steel Sheet P265gh Hot Rolled Steel Plates
P265gh Steel Plate P265gh Hot Rolled Steel Sheet P265gh Hot Rolled Steel Plates
Grade P265GH is the Heat Resistant Pressure Vessel Steels defined in the EN 10028 system. It is a non-alloy steel. The material is designed for high temperature applications. Therefore it is mostly utilized in high temperature applications in the oil and gas sector, chemical processing industries and petrochemical sectors.
P265GH Chemical Composition Max (%)
| Grade | C | Si | Mn | P | S | Al(min) | N |
| P265GH | 0.20 | 0.40 | 0.80-1.40 | 0.025 | 0.015 | 0.020 | 0.012 |
| Cr | Cu | Mo | Nb | Ni | Ti | V | |
| 0.30 | 0.30 | 0.08 | 0.020 | 0.30 | 0.03 | 0.02 |
P265GH Mechanical Property
| Grade | Thickness | Yield | Tensilmie | Elongation | Impact Energy(KV J) min | ||
| P265GH | mm | Min Mpa | Mpa | Min % | -20° | 0° | +20° |
| ≤ 16 | 265 | 410-530 | 22 | 27 | 34 | 40 | |
| 16> to ≤40 | 255 | 410-530 | 22 | 27 | 34 | 40 | |
| 40> to ≤60 | 245 | 410-530 | 22 | 27 | 34 | 40 | |
| 60> to ≤100 | 215 | 410-530 | 22 | 27 | 34 | 40 | |
| 100> to ≤150 | 200 | 400-530 | 22 | 27 | 34 | 40 | |
| 150> to ≤250 | 185 | 390-530 | 22 | 27 | 34 |
40 |
|
|
Ordinary carbon structural steel plate
|
Q235A,Q275A,Q295A,SS400,AS3678-250, A36,SM400A, St37-2,
SA283GrA, S235JR, S235j0, s235j2, s275 Jr, s275j0, s275j2,s275n, S275NL, etc
|
|
Low alloy high strength steel plate
|
Q345A,Q355B,Q390A,Q420A,S420N,S420N, LS420M,S460M,
S420ML/S460ML,AS3678-300,AS3678-350,S460N,S460NL,SM490B,SM490YB, A572Gr50,A572Gr65, St52-3,S355JR, A709Gr50,A633C/D,
A633E,SM520,SM570,S315, StE355,StE460,S355JR, S355JO,S355J2,S355J2W,S355K2,S355N,S355NL
|
|
Offshore structural steel plate
|
S355G2+N,S355G3+N,S355G5+M,S355G6+M,S355G7+M,S355G7+N,
S355G8+M,S355G8+N,S355G9+M,S355G9+N,S355G10+M,S355G10+N
|
|
Steel plates for boilers and pressure vessels
|
SA387Gr11,SA387Gr22,15MnNiR,12Cr1MoVR, A515Gr60,(S)A515Gr65,(S)A515G70,(S)A516Gr60,(S) A516gr65, (s) a516gr70, (s) a516gr415, (s),A516gr485, (with s-handle) ASME standard,without ASTM standard), spv355, spv450,19Mn6,15Mo3 16Mo3,A573Gr70,SA285GrC,SB41,SP235GH,HII/P265GH, P295GH,P275NH,P275NL1,P355GH,P355NH,P355NL1,SA662GrC, P460nh,,A537CL1, a537cl2 (quenched and tempered steel),etc
|
|
Steel plate for bridge
|
Q235qc,Q345qc,Q370qc,Q420qc,Q345qDNH,Q370qDNH,A709-50F-2,A709-50T-2
|
Boiler and pressure vessel steel plate: professional pressure vessel steel plate used for the manufacture of the main equipment and parts of pressure vessels. The vast majority of pressure vessels are made of welded steel plates. In the manufacturing process, the pressure vessel steel plate must be subjected to hot and cold processing and welding, so the pressure vessel steel plate is required to have good technological performance, as well as a certain strength and enough toughness, so that under normal working conditions under the external load without brittle failure.
