A192 Seamless Boiler Tube And Heat Exchanger Tube Carbon Seamless Steel Pipe Galvanized Seamless Steel Pipe
|
PRODUCT NAME
|

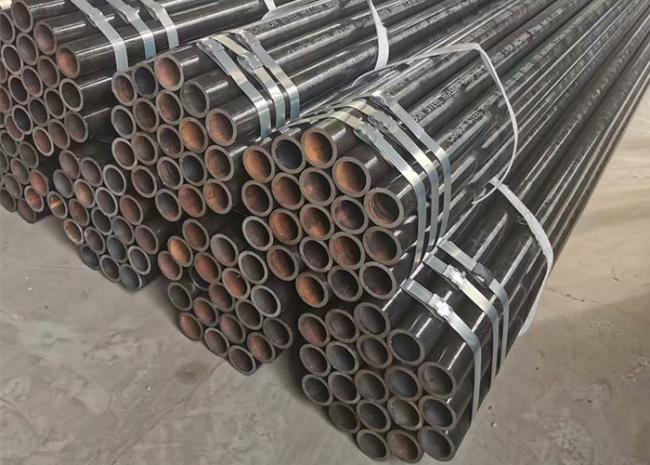

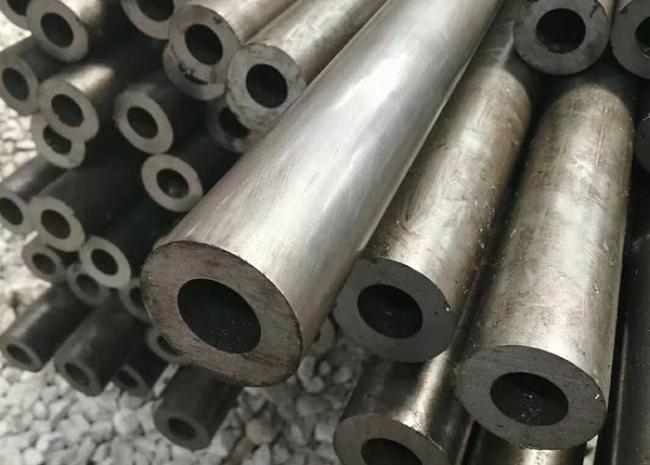

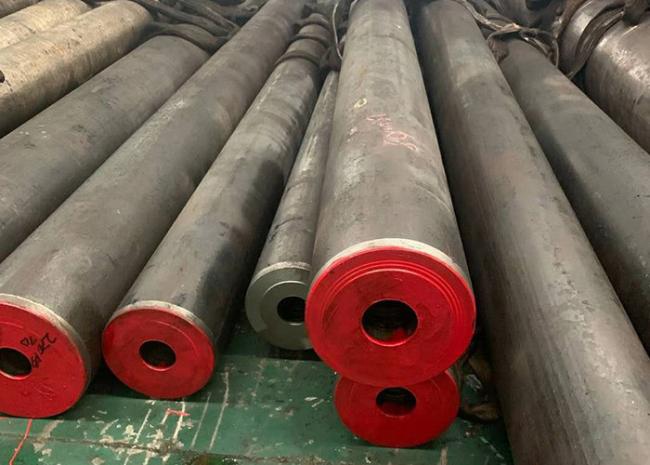

mild steel price for small size A179 and A192 seamless boiler tube and heat exchanger tube
|
||
|
MATERIAL
|
Carbon Steel
|
||
|
Color
|
Bare pipes , Black/Red/Varnish pipes,or Hot Dip Galvanzied pipes
|
||
|
STANDARD
|
ASTM A106 Gr.B; ASTM A53 Gr.A and Gr.B; API 5L Gr.A and Gr.B; A179 and A192
GB8163. GB8162, GB3087, ASME B36.10M |
||
|
GRADE
|
20# , 10# ,45#, 16Mn, GR.B, X42, X52
|
||
|
SIZE
|
OD: 1/4 inch ---32 inch
WT: SCT20, STD, SCH40, SCH80, SCH120, SCH160
LENGTH: 5.8M; 6M; 11.8M , 12M or as customer's requirement
|
||
|
APPLICATION
|
low and medium pressure boiler, high pressure boiler, ship-building, liquid survice,petroleum cracking, chemical fertilizer equipment, drawing-oil-equipment and structure purposes.
|
||
|
CERTIFICATE
|
API 5L-0655; ISO9001
|
||
Material Grades
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
Additional Testing : NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Dimensions : All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API.
| High Temperature Seamless Pipe | ASTM A106 Gr. B/C, API 5L Gr. B, ASTM A53 Gr. B |
| Heat Exchanger Seamless Tube | ASTM A179 |
| Low Temperature Seamless Pipe | ASTM A333 Gr. 3/6 |
| Low Temperature Seamless Tube | ASTM A334 Gr. 6 |
| High Yield Seamless Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield Seamless Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
| Atmospheric & Low Temp EFW Pipes | ASTM A671 Gr. CC60/CC65/CC70 |
| High Pressure & Moderate Temp EFW Pipes | ASTM A672 Gr. B60/B65/B70/C55/C60/C65/C70 |
| High Yield ERW/SAW Pipe | API 5L Gr. X42/X46/X52/X56/X60/X65/X70/X80 PSL-1/PSL-2 |
| High Yield ERW/SAW Pipe | ISO 3183 Gr.L245, L290, L320, L360, L390, L415, L450, L485 |
Additional Testing : NACE MR0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc.
Dimensions : All Pipe is manufactured and inspected/tested to the relevant standards including ASTM, ASME, API.
carbon steel pipe astm specifications Chemical Composition
| Grade | C≤ | Mn | P≤ | S≤ | Si≥ | Cr≤ | Cu≤ | Mo≤ | Ni≤ | V≤ |
| A | 0.25 | 0.27-0.93 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| B | 0.30 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
| C | 0.35 | 0.29-1.06 | 0.035 | 0.035 | 0.10 | 0.40 | 0.40 | 0.15 | 0.40 | 0.08 |
carbon steel pipe astm specifications Mechanical Properties
| Grade | Rm Mpa Tensile Strength | Mpa Yield Point | Elongation | Delivery Condition |
| A | ≥330 | ≥205 | 20 | Annealed |
| B | ≥415 | ≥240 | 20 | Annealed |
| C | ≥485 | ≥275 | 20 | Annealed |
We,Gnee steel located in Tianjin, China, is very close to XinGang port, as a large investment group, engaging in steel products manufacturing, exporting, steel products stockist.
We are specialized in producing high-tech ERW (Electric Resistance Welded) and SSAW (Spiral Submerged Arc welded) pipes. Our company has advanced φ610 mm high-frequency straight seam resistance welding machine, and φ3048mm spiral submerged arc welded machine. As well, besides ERW and SSAW factories, we have another three associated factories for LSAW and SMLS production throughout China.
FAQ
Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of High pressure a192 a179 seamless carbon boiler tube for sale for free charge but need pay the cost of freight.
