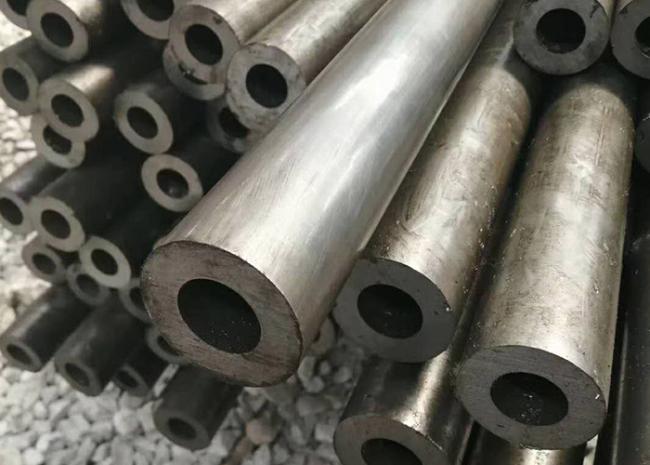

30cr Mo Alloy Seamless Plain Ends 5mm Stainless Steel Tube Sch40
30cr Mo Alloy Steel Tube Carbon Steel Seamless Plain Ends Sch40 Seamless Carbon Alloy Steel Pipe
| Prodect | Alloy Steel Pipe |
| Wall Thickness | 6-40mm |
| Out Diameter | 10.3-508mm |
| Length | 5.8-13m ,5.8m fixed in 20ft container ,11.8m fixed in 40ft container |
| Standard | GB/T8162-2008,GB/T8163-2008,GB6479-2000,GB9948-2006,GB5310-2008,ASME SA210,DIN17175 |
|
Material |
12CrMoV,15CrMo,12Cr1MoVG ,15CrMoG,10CrMo910,13CrMo44,15Mo3,16Mn,16Mo,12CrMo,15CrMo,,Cr2Mo,Cr5Mo,27SiMn,40Cr,42CrMo, 30CrMo,135CrMoV 45CrMo,45Cr,50Cr,45CrNiMo,A335 P1,A335 P2,A213 T2,A335 P12,A213 T2,A335 P11,A119 T11,A213 T11,A335P22,A199 T22, A213 T22,A335 P5,A213 T5,A335 P5,A199 T9,A213 T9 |
| Surface | Black painted ,vanished as request |
| End | Plain or Beveled (Can be Protected By Plastic Pipe Cap)Thread With Couplings Or Sockets,Plastic Caps And Steel Rings Can Be Provided If Possible |
|
Application |
1).Petroleum,Chemical enterprise, superheater of boiler, heat exchanger 2).High temperature resistant transmission fluid pipe in power station 3).Ship with pressure pipe 4).The exhaust purification devices 5).Construction |
| Type | Seamless |
|
Alloy pipe Advantage |
1) High temperature resistance, 2) Low temperature resistance 3) Corrosion resistance 4) The heat transfer coefficient 5) Recycling 6) Simple construction, good stability, not affected by temperature and metamorphism |
| Payment | TT ,L/C,West Union |
| Packing | Standard seaworthy packing with plastic caps and strapped bundles or as required |
| Market | Mild east, North/South America, Europe, Asia,Africa etc |
| Delivery time | Within 7-10 days,have large stock |
| Chemical properties (%) | |||||||
| Material | C | Si | Mn | P | S | Mo | Cr |
| % | % | % | max | max | % | max | |
| A335 P2/12CrMo | 0,10 - 0,20 | 0,10 - 0,30 | 0,30 - 0,61 | 0,025 | 0,025 | 0.44-0.65 | 0.5-0.81 |
| A335 P5/Cr5Mo | max. 0,15 | max. 0,50 | 0,30 - 0,60 | 0,025 | 0,025 | 0,45-0,65 | 4,00-6,00 |
| A335 P9/ Cr9Mo | max. 0.15 | 0.5-1.0 | 0.3-0.6 | 0.025 | 0.025 | 0.9-1.1 | 8-10 |
| A335 P11/12CrMoV | 0,05 - 0,15 | 0,50 - 1,00 | 0,30 - 0,60 | 0,025 | 0,025 | 0,44-0,65 | 1,00-1,50 |
| A335 P12/12CrMo | 0,05 - 0,15 | max. 0,50 | 0,30 - 0,61 | 0,025 | 0,025 | 0,44-0,65 | 0,80-1,25 |
| A335 P22/ Cr2Mo | 0,05 - 0,15 | max. 0,50 | 0,30 - 0,60 | 0,025 | 0,025 | 0,87-1,13 | 1,90-2,60 |
| A213 P91 | 0,08 - 0,12 | 0,20 - 0,50 | 0,30 - 0,60 | 0.02 | 0.01 | 0.85-1.05 | 8.00-9.50 |
ASTM A335 Alloy Steel Pipe
| Mechanical properties | |||
| Material |
Tensile N/mm2 |
Strength Min. N/mm2 |
Yield % min. |
| A335 P2 | min. 380 | 205 | 30 |
| A335 P5 | min. 415 | 205 | 30 |
| A335 P9 | min.415 | 205 | 22 |
| A335 P11 | min. 415 | 205 | 30 |
| A335 P12 | min. 415 | 205 | 30 |
| A335 P22 | min. 510 | 400 | 20 |
| A213 P91 | min. 585 | 415 | 20 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are trader.We specialize in seamless stainless steel pipe/tubes
Q:How do you guarantee the quality of your products?
A:a)100%PMI Test
b)100%Eddy Current Test or Hydrostatic Test
c)Size and surface inspection according to specification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, you just need to pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
