API 5L Seamless Steel Pipe , 10mm Stainless Steel Pipe 15crmo 12cr1mov

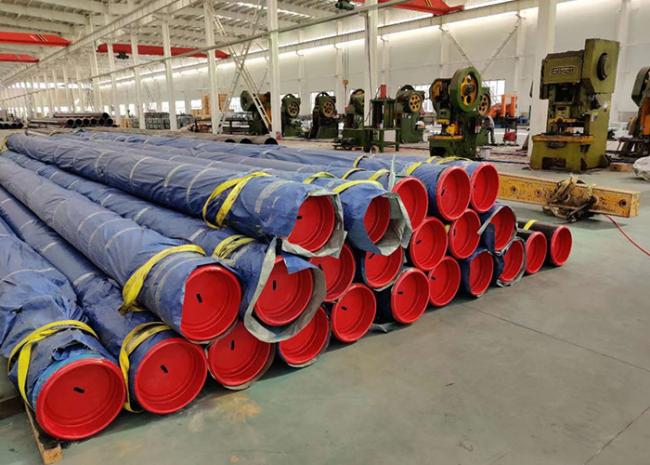

API 5L Seamless Pipe And Tube Seamless Carbon Alloy Steel Pipe 15crmo 12cr1mov Alloy Steel Tube
ANSI / API 5L specifies the manufacture of two product levels (PSL1 and PSL2) of seamless and welded steel pipe for the use of a pipeline in the transportation of petroleum and natural gas. For material use in a sour service application, refer to Annex H; for offshore service application, refer to Annex J of API 5L 45th Edition.
Grades: API 5L Grade B, X42, X52, X56, X60, X65, X70, X80
Product Specification Level: PSL1, PSL2, onshore and offshore sour services
Outer Diameter Range: 1/2” to 2”, 3”, 4”, 6”, 8”, 10”, 12”, 16 inch, 18 inch, 20 inch, 24 inch up to 40 inch.
Thickness Schedule: SCH 10. SCH 20, SCH 40, SCH STD, SCH 80, SCH XS, to SCH 160
Manufacturing Types: Seamless (Hot Rolled and Cold Rolled), Welded ERW (Electric resistance welded), SAW (Submerged Arc Welded) in LSAW, DSAW, SSAW, HSAW
Ends Type: Beveled ends, Plain ends
Length Range: SRL (Single Random Length), DRL (Double Random Length), 20 FT (6 meter), 40FT (12 meter)or customized
Protection Caps in plastic or iron
Surface Treatment: Natural, Varnished, Black painting, FBE, 3PE (3LPE), 3PP, CWC (Concrete Weight Coated) CRA Clad or Lined
Tolerance of Outside Diameter
| Standard | Out Diameter | Tolerance of Pipe End | Tolerance of Pipe Body |
| API 5L | 219.1~273.1 | +1.6mm, -0.4mm | ±0.75% |
| 274.0~320 | +2.4mm, -0.8mm | ±0.75% | |
| 323.9~457 | +2.4mm, -0.8mm | ±0.75% | |
| 508 | +2.4mm, -0.8mm | ±0.75% | |
| 559~610 | +2.4mm, -0.8mm | ±0.75% |
Tolerance of Wall Thickness
| Standard | Grade | Out Diameter | Wall Thickness |
| API 5L | A | 219.1~457 | +15%, -12.5% |
| B | 508~610 | +17.5%, -12.5% | |
| X42-X80 | 508~610 | +19.5%, -8% |
| Standard | Class | Grade | Chemical Analysis(%) | Mechanical Properties(min)(Mpa) | ||||
| C | Mn | P | S | Tensile Strength | Yield Strength | |||
| API 5L | PSL1 | B | 0.26 | 1.20 | 0.030 | 0.030 | 414 | 241 |
| X42 | 0.26 | 1.30 | 0.030 | 0.030 | 414 | 290 | ||
| X46 | 0.26 | 1.40 | 0.030 | 0.030 | 434 | 317 | ||
| X52 | 0.26 | 1.40 | 0.030 | 0.030 | 455 | 359 | ||
| X56 | 0.26 | 1.40 | 0.030 | 0.030 | 490 | 386 | ||
| X60 | 0.26 | 1.40 | 0.030 | 0.030 | 517 | 414 | ||
| X65 | 0.26 | 1.45 | 0.030 | 0.030 | 531 | 448 | ||
| X70 | 0.26 | 1.65 | 0.030 | 0.030 | 565 | 483 | ||
| PSL2 | B | 0.22 | 1.20 | 0.025 | 0.015 | 414 | 241 | |
| X42 | 0.22 | 1.30 | 0.025 | 0.015 | 414 | 290 | ||
| X46 | 0.22 | 1.40 | 0.025 | 0.015 | 434 | 317 | ||
| X52 | 0.22 | 1.40 | 0.025 | 0.015 | 455 | 359 | ||
| X56 | 0.22 | 1.40 | 0.025 | 0.015 | 490 | 386 | ||
| X60 | 0.22 | 1.40 | 0.025 | 0.015 | 517 | 414 | ||
| X65 | 0.22 | 1.45 | 0.025 | 0.015 | 531 | 448 | ||
| X70 | 0.22 | 1.65 | 0.025 | 0.015 | 565 | 483 | ||
| X80 | 0.22 | 1.85 | 0.025 | 0.015 | 621 | 552 | ||
Seamless carbon steel tubing or piping, also referred to as drawn piping starts with a solid bar or block of carbon steel. The piece of carbon steel is then put through a process of drilling, extrusion, or oxygen lance to create a hollow pipe. Once the tubing is hollow it is then placed through a die and mandrel phase to create a larger interior diameter providing various sizes of seamless carbon steel tubing.
FAQ
1, What is your time of making a sample?
Usually we will take 1~3 days to make the sample
2, What is your MOQ?
1-3 tons accordingto different size for stocks.
3,What is your delivery time?
For stocks, we can send the goods to loading port within 7 days after receiving your deposit For production period, it usually needs about 15days- 30 days after receiving the deposit
4, What is your shipping port?
Tian jin port, Shanghai Port
5, What is your Main exporting countries?
European, Middle east, South America, Southeast Asia market are our main market
