SGS Approve DIN 1.6582 3m Length Hot Rolled Mild Steel 34CrNiMo6

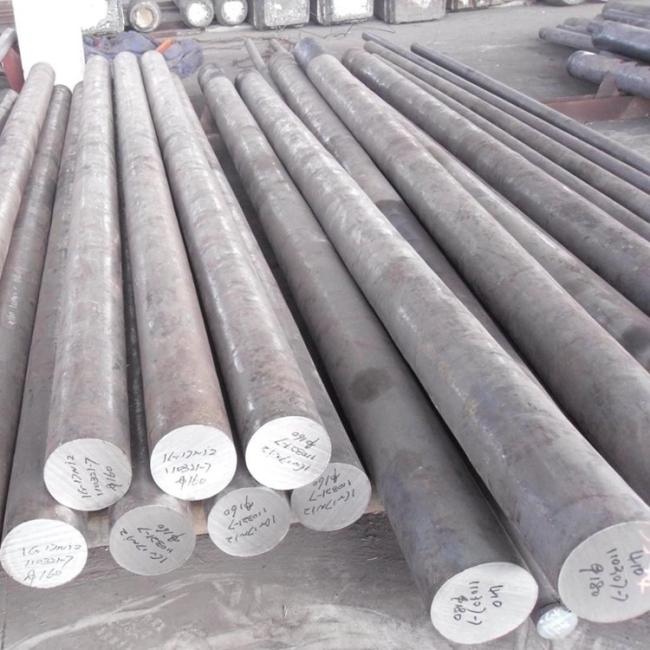

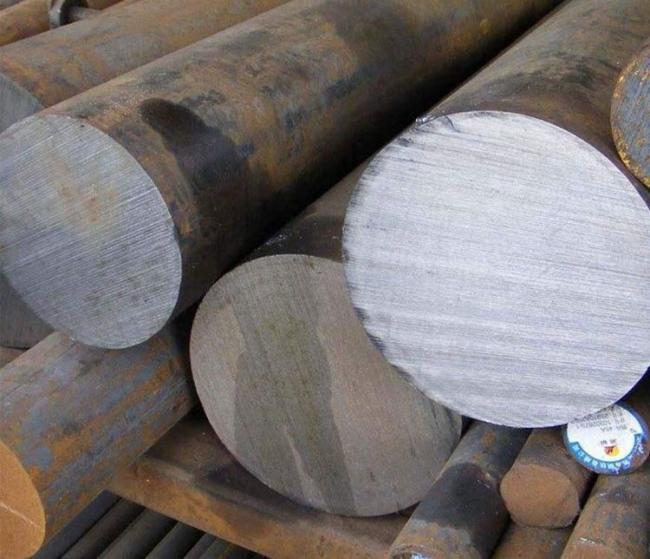

Hot Rolled Mild Steel DIN 1.6582 Round Bar 34CrNiMo6 Round Steel Bar Round Bar Round Bar Rod
|
Material
|
steel round bar/rod
|
|
Diameter
|
80mm-400mm
|
|
Length
|
1M,2M,3M,5.8M,6M,9M,10M,11.8M,12M or according to the customer's demand
|
|
Heat treatment
|
Normalized / Annealed / Quenched / tempered
|
|
Surface Treatment
|
Polished, Black, Grinding or as demand
|
|
Technical Data
|
According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
|
|
Test
|
Ultrasonic test according to SEP 1921-84 G3 C/c
|
|
Usage
|
It is widely used in Shipping, Petrochemical industry. Machine industry, Medicine, Electric Power, Energy, Building Decoration,
Nuclear Power, Aviation and Spaceflight, Seawater equipment, Chemistry, Coloring Matter, Paper-making, Oxalic Acid, Fertilizer, Coastal areas, Facility, Rope, Screw, Nut etc. |
DIN1.6582/34CrNiMo6 steel Manufacturer and Exporter,supplied with round,square,flat,block,and shaft etc.DIN 1.6582/34CrNiMo6 a heat treatable, low alloy steel which contains chromium,molybdenum and nickel as strengthening agents as per BS EN 10083-3:2006. It is known for its good strength,toughness, hardenability and capability of developing high strength in the heat treated condition while retaining good fatigue strength,but it is poor in weldability,usually this steel should be hardened and tempered before application.
1.Supply Form & Size & Tolerance
| Supply Form | Size(mm) | Process | Tolerance | |
Round |
Φ6-Φ100 | Cold Drawn | Bright/Black | Best H11 |
Φ16-Φ350 |
Hot Rolled |
Black | -0/+1mm | |
| Peeled/ground | Best H11 | |||
Φ90-Φ1000 |
Hot Forged |
Black | -0/+5mm | |
| Rough Turned | -0/+3mm | |||
Flat/Square/Block |
Thickness :120-800 | Hot Forged |
Black | -0/+8mm |
| Width:120-1500 | Rough Machined | -0/+3mm | ||
Remark:Tolerance can be customized as per requests
2.Chemical Composition
| Standard | Grade | C | Mn | P | S | Si | Ni | Cr | Mo |
| EN 10083 EN 10250 |
34CrNiMo6 | 0.30-0.38 |
0.50-0.80 |
≤ 0.025 |
≤ 0.035 |
≤ 0.04 |
1.3-1.7 |
1.3-1.7 |
0.15-0.3 |
| 1.6582 |
3.Physical Property
| Density, g/cm3 | 7.85 | ||||
| Specific heat capacity J/(kg.K) | 460 | ||||
| Electric resistivity Ohm.mm2 /m | 0.19 | ||||
| Electric conductivity Siemens.m/mm2 | 5.26 | ||||
| Modulus of elasticity Gpa | 100 ℃ | 200 ℃ | 300 ℃ | 400 ℃ | 500 ℃ |
| 205 | 195 | 185 | 175 | ||
| Thermal expansion 10^6 m/(m.K) | 100 ℃ | 200 ℃ | 300 ℃ | 400 ℃ | 500 ℃ |
| 11.1 | 12.1 | 12.9 | 13.5 | 13.9 | |
4. Mechanical Property
| Depth mm | 25 | 1/3 radius | 1/2 Diameter |
| R Mpa | 930 | 900 | 860 |
| Rp 0.2 Mpa | 828 | 750 | 730 |
| A % | 18.6 | 15.4 | 12.6 |
| C % | 64 | 60 | 46 |
| Kv +20 ℃ J | / | / | 70/74/70 |
| Kv -40 ℃ J | 110/110/118 | 48/44/45 | 25/28/25 |
| Hardness HB | 279 | 271 | 264 |
Q: Can you make the product according to our requirements?
A: Yes, we will strictly follow your requirements, such as the way of the package, the length of the product, the treatment of the
product and so on.
Q: What is your way of the surface treatment?
A: Polished, Black, Grinding, or according customer demand.
