heavy duty Steel Structure Building A36 SS400 Q235b Q345b S235jr S355

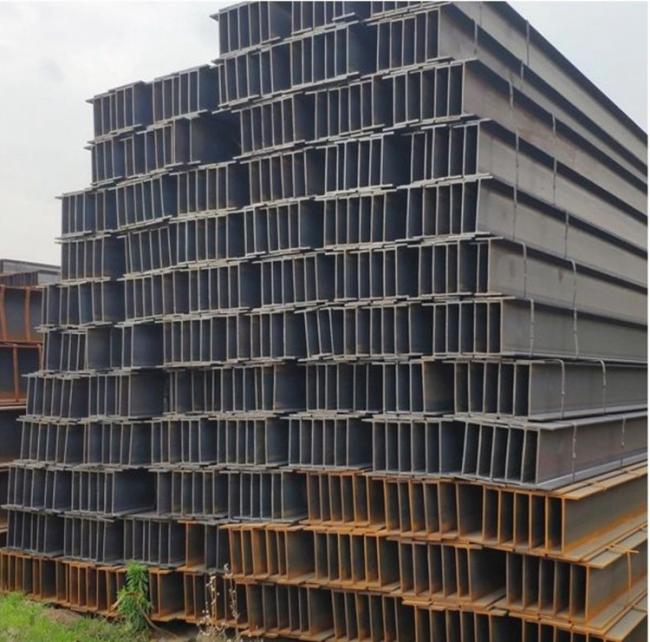

Ipe 200/300/360 Hot Rolled H Beam Steel Section Beam Structural Steel H Beam A36 Ss400 Q235b Q345b S235jr S355
1. Product Description
1) Standard:ASTM A36,A572,ST37-2,EN10272,JIS4303,JIS G 4311,JIS G4318.
2) The thickness of the web 6-16mm The width of the web 100-300mm.
3) length: as demand.
4) Condition:cold drawn,hot rolled.
4) Surface:Bright(cold drawn,smooth turned),Black (Hot rolled, hot forged).
6) Packing:standard export packing or as demand.
7) Payment:30% advanced T/T and 70% balance against copy of B/L.
8) Application:architecture and engineering structure, such as beam, Bridges, transmission tower, ship high-rise building lifting transportation machinery.
2. Application
H profile steel, an economic and efficient cross-section material with better arrangement of sectional area and reasonable proportion between strength and weight, is widely used in industrial plants, civil buildings, bridges, electrified brackets of railway and other building projects, due to its advantages in bending ability, simple construction, low cost and light weight.
With abundant technical strength and advanced equipments, we have been undertaking kinds of design and manufacture of uniform and variable cross-section H-beams.
3. H beams sizes with GB standard
| ACCORDING TO STANDARD: JIS G3192 OR GB/T11263-2005 | |||
| H beam Section size (mm) | Weight (kg/m) | ||
| Height×Breadth | Web thickness | Flange thickness | |
| 100×100 | 6 | 8 | 16.9 |
| 125×125 | 6.5 | 9 | 23.6 |
| 150×150 | 7 | 10 | 31.1 |
| 175×175 | 7.5 | 11 | 40.4 |
| 200×200 | 8 | 12 | 49.9 |
| 250×250 | 9 | 14 | 71.8 |
| 300×300 | 10 | 15 | 93.0 |
| 300×300 | 15 | 15 | 105.0 |
| 350×350 | 12 | 19 | 134.9 |
| 400×400 | 13 | 21 | 171.7 |
| 148×100 | 6 | 9 | 20.7 |
| 194×150 | 6 | 9 | 29.9 |
| 244×175 | 7 | 11 | 43.6 |
| 294×200 | 8 | 12 | 55.8 |
| 340×250 | 9 | 14 | 78.1 |
| 390×300 | 10 | 16 | 104.6 |
| 440×300 | 11 | 18 | 120.8 |
| 482×300 | 11 | 15 | 110.8 |
| 488×300 | 11 | 18 | 124.9 |
| 582×300 | 12 | 17 | 132.8 |
| 588×300 | 12 | 20 | 147.0 |
| 100×50 | 5 | 7 | 9.3 |
| 125×60 | 6 | 8 | 13.1 |
| 150×75 | 5 | 7 | 14.0 |
| 175×90 | 5 | 8 | 18.0 |
| 198×99 | 4.5 | 7 | 17.8 |
| 200×100 | 5.5 | 8 | 20.9 |
| 248×124 | 5 | 8 | 25.1 |
| 250×125 | 6 | 9 | 29.0 |
| 298×149 | 5.5 | 8 | 32.0 |
| 300×150 | 6.5 | 9 | 36.7 |
| 346×174 | 6 | 9 | 41.2 |
| 350×175 | 7 | 11 | 49.4 |
| 396×199 | 7 | 11 | 56.1 |
| 400×200 | 8 | 13 | 65.4 |
| 446×199 | 8 | 12 | 65.1 |
| 450×200 | 9 | 14 | 74.9 |
| 496×199 | 9 | 14 | 77.9 |
FAQ
Q:Do you offer service for installation?
A: We will give detailed installation drawings and direction info for free. And we could send engineers as installation director even a team.
Q:Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
