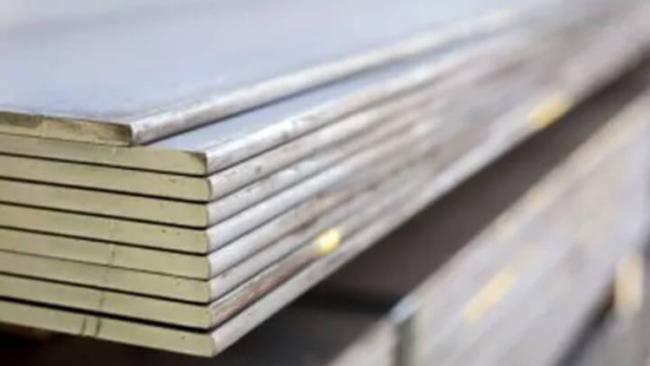

SPA-H S355J0WP Weathering Steel Plate 3mm Corten A
Fine Quality High Quality Building Material SPA-H S355J0WP Corten A Weather Resistant Steel Plate
Corten steel, also called Weather Resistant steel or Atmospheric Corrosion Resistant steel, it is known as a low cost and highly effective material.
Specifications
ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W;
EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W;
JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P;
JIS G3125: SPA-H; SPA-C;
GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH; Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH;
TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi;
Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR
| Material | grade | chemical composition,% | ||||||||||||||||||
| C | Si | Mn | P | S | Cu | Cr | Ni | V | ||||||||||||
| Q235NH | A-E | ≤ 0.13 | 0.10-0.40 | 0.20-0.60 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / | ||||||||||
| Q295NH | A-E | ≤0.15 | 0.10-0.50 | 0.60-1.00 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / | ||||||||||
| Q295GNH | A-E | ≤ 0.12 | 0.10-0.40 | 0.20-0.50 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | 0.25 -0.50 |
/ | ||||||||||
| Q355NH | A-E | ≤ 0.16 | ≤ 0.50 | 0.50-1.50 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / | ||||||||||
| Q355GNH | A-E | ≤ 0.12 | 0.20-0.75 | ≤ 1.00 | ≤ 0.13 | ≤ 0.13 | 0.25-0.55 | 0.40-0.80 | ≤ 0.65 | / | ||||||||||
| 09CuPCrNi-A | / | ≤ 0.12 | 0.20-0.75 | 0.20-0.50 | 0.060-0.12 | ≤ 0.020 | 0.25-0.50 | 0.30-1.25 | 0.12 -0.65 |
/ | ||||||||||
| 09CuPCrNi-B | / | ≤ 0.12 | 0.10-0.40 | 0.20-0.50 | 0.060-0.12 | ≤ 0.020 | 0.25-0.50 | 0.30-0.65 | 0.25 -0.50 |
/ | ||||||||||
| 05CuPCrNi | / | ≤ 0.090 | 0.25-0.50 | 0.20-0.50 | 0.060-0.12 | ≤ 0.020 | 0.25-0.50 | 0.30-1.25 | 0.12 -0.65 |
/ | ||||||||||
| B480GNQR | / | ≤ 0.12 | 0.25-0.75 | 0.20-0.50 | 0.070-0.15 | ≤ 0.030 | 0.25-0.55 | 0.30-1.25 | ≤ 0.65 | / | ||||||||||
| Q450NQR1 | / | ≤ 0.12 | ≤ 0.75 | ≤ 1.50 | ≤ 0.025 | ≤ 0.020 | 0.20-0.55 | 0.30-1.25 | ≤ 0.65 | / | ||||||||||
| SPA-H | / | 0.05-0.12 | 0.25-0.75 | 0.20-0.60 | 0.070-0.12 | ≤ 0.025 | 0.25-0.50 | 0.30-1.25 | ≤ 0.65 | / | ||||||||||
Gnee was established in 2008, located in the heartland of China an open coastal city of Tianjin, which is one of the biggest business centers in North China. We enjoy this excellent geographic location and convenient water, land and air transportations.
We are the first agent of TISCO, Baosteel, LISCO, POSCO, Wuyang mill, Shougang mill, Angang mill etc. In Stainless steel, X120Mn12 high manganese steel, Corten plate, Aluminum sheet/coil; Vessel plate, Container plate,High strength plate etc.; Our main products are stainless steel sheet/coil by ASTM, AISI, JIS, EN, GB standard, main material are 201, 202, 301, 304, 304L, 309S, 310S, 316, 316L, 317L ,321, 316Ti., 409L, 410, 410S, 416, 420, 420J1, 420J2, 430, 436, 439, 441, 444, 446 etc.; Manganese steel X120Mn12 Mn13; Corten plate ASTM standard Grade A, Grade B, A588 grade A, B, C; EN10155 standard S355J2WP, S355JOWP; 09CuPCrNiA, B480GNQR, SPAH etc.
1.We have professional export team.
2.We can provide Mill test certificate.
3.we cooprationwith more than 20 countries.
4.wu have good service&short delivery time.
5.we can provide free sample for your evalution.
