High Speed And Accuracy Fiber Laser Cutting Machine 1500w For Metal
Price:
negotiable
MOQ:
1
Delivery Time:
20Days
Brand:
E-Cut
Product Description
High Speed And Accuracy Fiber Laser Cutting Machinwe 1500w
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet.
Application Industries: CNC Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Specification
|
Items
|
Parameters
|
||
|
Model
|
GD Series
|
||
|
Laser Source
|
Raycus
|
||
|
Power
|
1000w 1500w 2000w 3000w~15000w(can be customized)
|
||
|

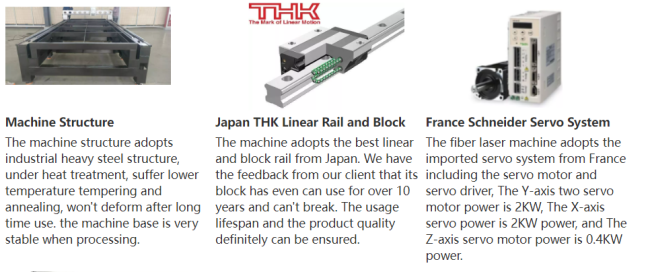

Linear Rial
|
PMI
|
||
|
Servo Motor
|
France Schneider Servo System
|
||
|
Reducer
|
Japanese Shimpo Reducer
|
||
|

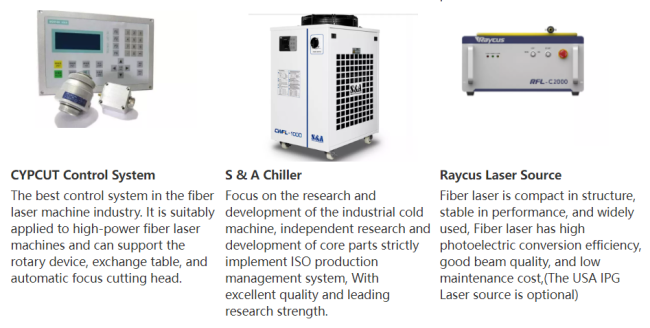

Cutting Head
|
WSX / Raytools
|
||
|
Control System
|
Cypcut/ Weihong
|
||
|
Wave Lenth
|
1080nm
|
||
|
Cutting Width(X&Y)
|
1300*2500mm 1500*3000mm 2000*4000mm (can be customized)
|
||
|
Laser Media
|
Fiber Laser
|
||
|
Voltage Requirements
|
220v or 380v/50Hz~60Hz
|
||
|
Min.Route Width
|
0.1mm
|
||
|
Reposition Accuracy
|
±0.05mm
|
||
|
Aiming Positioning
|
Red Dot
|
||
|
Pipe Material Length
|
0~6000mm
|
||
|
Pipe Material Diameter
|
10~300mm(Optional)
|
||
|
PS.All the working area and specifications can be customized according to your requests
|
|||
