24VDC Brushless Slotted Motor 4000rpm 10mm Shaft Diameter Mini DC Motor 28CBL38
JUNQI 24VDC Brushless Slotted Motor 4000rpm Max 0.084Nm 10mm Shaft Diameter Mini DC Motor 28CBL38
Features:
Supply voltage of 24 V DC
Output speed of 4000 rpm
Maximum output torque of 0.028 Nm
Current rating of 0.6 A
Hall effect sensors with 120° electrical angle
Characteristics:
| Item | Specification |
| Winding Type | Star connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max radial force | 5N(10mm from the flange) |
| Max axial force | 2N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Color | Gauge | Functions |
| Yellow | UL1061 AWG28 | Vcc Hall |
| Blue | Hall A | |
| Orange | Hall B | |
| Brown | Hall C | |
| White | GND Hall | |
| Green | UL1061 AWG26 | Phase U |
| Red | Phase V | |
| Black | Phase W |
Electricl Specification:
| Item | Unit | 28CBL38 | 28CBL48 |
| Number of poles | 8 | ||
| Number of Phase | 3 | ||
| Rated Voltage | VDC | 24 | |
| Rated Torque | mN.m | 28 | 50 |
| Continuous Stall Torque | mN.m | 33.6 | 60 |
| Rated Speed | RPM | 4000 | 4500 |
| Rated Power | W | 12 | 24 |
| Peak Torque | mN.m | 84 | 150 |
| Peak Current | A | 2.0 | 4.5 |
| Line to Line resistance | ohms@20℃ | 5.7 | 2.5 |
| Line to Line Inductance | mH | 2.48 | 1.2 |
| Torque constant | mN.m/A | 42.8 | 36 |
| Back EMF | Vrms/KRPM | 3.165 | 2.68 |
| Rotor Inertia | g.cm2 | 5.8 | 7.3 |
| Motor Length | mm | 38 | 48 |
| Weight | g | 95 | 120 |
**Notes: The motor can be designed &manufactured with customized request!!

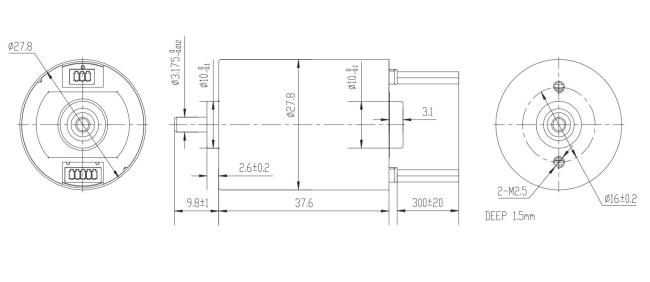

Dimensions:
