36CBL Series Economical BLDC Motor 24V 4800RPM For Power Tool
36CBL Series Economical BLDC motor 24V 4800RPM For Power Tool
Features:
This series of brushless DC motors is built from high-quality materials that ensure efficient power and consistent torque output for optimum performance
The simple brushless design offers a longer-lasting motor, less maintenance and is also quieter than its brushed counterpart
The sensors provide speed-control feedback to provide superior performance and high efficiency in all Applications
Characteristics:
| Item | Specification |
| Winding Type | Star connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max radial force | 15N(10mm from the flange) |
| Max axial force | 10N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Color | Gauge | Functions |
| Red | UL1430 AWG26 | Vcc Hall |
| Blue | Hall A | |
| Green | Hall B | |
| White | Hall C | |
| Blck | GND Hall | |
| Yellow | UL1430 AWG24 | Phase U |
| Brown | Phase V | |
| Orange | Phase W |
Electricl Specification:
| Item | Unit | 36CBL30 | 36CBL40 | 36CBL50 | 36CBL57 | 36CBL60 | 36CBL65 |
| Number of poles | 8 | ||||||
| Number of Phase | 3 | ||||||
| Rated Voltage | VDC | 24 | |||||
| Rated Torque | mN.m | 15 | 35 | 55 | 70 | 80 | 90 |
| Continuous Stall Torque | mN.m | 18 | 42 | 66 | 84 | 96 | 108 |
| Rated Speed | RPM | 4800 | 4800 | 4800 | 4500 | 4800 | 4800 |
| Rated Power | W | 8 | 18 | 28 | 33 | 40 | 45 |
| Peak Torque | mN.m | 45 | 105 | 165 | 210 | 240 | 270 |
| Peak Current | A | 1.3 | 2.7 | 4.3 | 5.3 | 6 | 6.8 |
| Line to Line resistance | ohms@20℃ | 5.2 | 2 | 1.2 | 1.05 | 0.95 | 0.88 |
| Line to Line Inductance | mH | 3.3 | 1.75 | 1.2 | 1 | 0.85 | 0.8 |
| Torque constant | mN.m/A | 36 | 40 | 39 | 40 | 40 | 40 |
| Back EMF | Vrms/KRPM | 2.7 | 3 | 2.9 | 3 | 3 | 3 |
| Rotor Inertia | g.cm2 | 6 | 12 | 22 | 27 | 30 | 32 |
| Motor Length | mm | 30 | 40 | 50 | 57 | 60 | 65 |
| Weight | g | 120 | 160 | 230 | 250 | 270 | 280 |
**Notes: The motor can be designed &manufactured with customized request!!

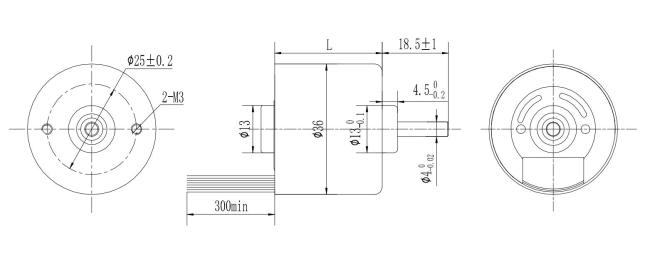

Dimensions:
