Junqi 38mm 24VDC 4000RPM Brushless DC Motor 38CBL58 For Home Applicance
Junqi 38mm 24VDC 4000RPM Brushless DC Motor 38CBL58 For Home applicance
Quick Details:
| Model |
Frame Size |
Body Length (mm) |
Rated Voltage (VDC) |
Rated Torque (Nm) |
Rated Current (A) |
Rated Speed (RPM) |
| 38CBL58 | 38mm | 58 | 24 | 0.07 | 1.7 | 4000 |
Features:
1. Wide speed range, Smooth torque output
2. Excellent Speed Stability
3. Compact and High Power
4. High Efficiency and Energy-Saving.
Characteristics:
| Item | Specification |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Shaft run out | 0.025mm |
| Insulation Class | B |
| Protectiono Class | IP40 |
| Radial play(450 load) | 0.02mm |
| Axial play(450g load) | 0.08mm |
| Max.Radial force(10mm from flange) | 15N |
| Max.Axial Force | 10N |
| Dielectric strength(for 1 sec.) | 500VAC |
| Insulation Resistance(min.500VDC) | 100Mohm |
Electric Connection:
| Pin No. | Color | Gauge | Functions |
| 1 | Red | UL1430 AWG26 | Vcc Hall +5Vdc to +24VDC |
| 2 | Blue | Hall A | |
| 3 | Green | Hall B | |
| 4 | White | Hall C | |
| 5 | Black | GND Hall | |
| 6 | Yellow | UL1430 AWG22 | Phase U |
| 7 | Red | Phase V | |
| 8 | Black | Phase W |
Electricl Specification:
| Item | Unit | 38CBL58 |
| Number of poles | 4 | |
| Number of Phase | 3 | |
| Rated Voltage | VDC | 24 |
| Rated Torque | N.m | 0.07 |
| Rated Speed | RPM | 4000 |
| Peak Torque | N.m | 0.21 |
| Peak Current | A | 5.1 |
| Line to Line resistance | ohms@20℃ | 2 |
| Line to Line Inductance | mH | 1.5 |
| Torque Constant | nN.m/A | 0.044 |
| Rotor Inertia | g.cm2 | 16 |
| Motor Length | mm | 58 |
| Weight | g | 240 |
**Notes: The motor can be designed &manufactured with customized request!!

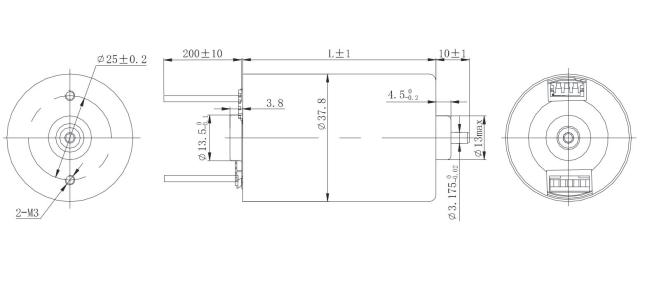

Mechanical Size:
