Junqi Nema17 2-Phase stepper Motor JQ42STH47-1804AF 1.8A 0.55N.m For Engraving Machine
2-Phase Nema17 stepper motor, 47mm body length, 1.8A,0.55N.m For Engraving Machine
Motor Specification:
| Number of Phase | 2 |
| Step Angle(°) | 1.8 |
| Current/Phase (A) | 1.8 |
| Resistance/Phase (ohms @20℃) | 1.75±15% |
| Inductance/Phase (mH@1KHz) | 3.3±20% |
| Holding Torque (Nm) | 0.55 |
| Detent Torque (N.m) | 0.022 |
| Dielectric Strength | AC500V/1min/5mA Max. |
| Insulation Class | B (130℃) 80K Max. |
| Weight | 0.38 |

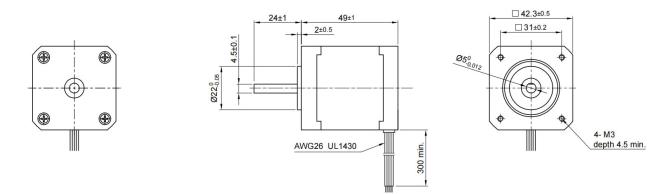

Motor Dimension:
Exciting Sequence vs Direction of Rotation:
Wiring Diagram:
Applications:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
