JUNQI DC24V 920W 6500L/h 23m Lift Electric Water Pump For Vehicle Thermal Management System

JUNQI DC24V 920W 6500L/h  23m lift Electric Water Pump For  Vehicle Thermal Management System

Technical Parameters:

Model: JP1000-24V-920W

Rated Voltage: 24VDC

Working voltage range: 18~32VDC

Protection level: IP68

Ambient temperature: -40~85℃

Medium: 50% glycol aquesous lolution

Rated Current: 38.3A

Noise: ≤70dB

Rated Flow rate: 6500L/h   H=23.5m

Rated Power: 920W

Working life: ≥20000h

Weight: 4.2kg

Features:

♦ Highly integrated shield pump,hihg reliability, mainteanance-free, soft satart protection, low starting current;

♦ High efficiency: hydraulic+motor+controller;

♦ With anti-reverse connection, over current, over voltage, under voltage, over temperature, blocking rotot protection;

♦ Full range adjustable speed ( support fixed speed customization);

♦ BLDC-PMSM+Non-inductive FOC, lightweight, low noise;

♦ Industry-leading ECU gauge devices, a variety of communication methods of ECU platform design;

♦ To meet the needs of intelligent vehicle connection: CAN communication, non-sensing temperature measurement.

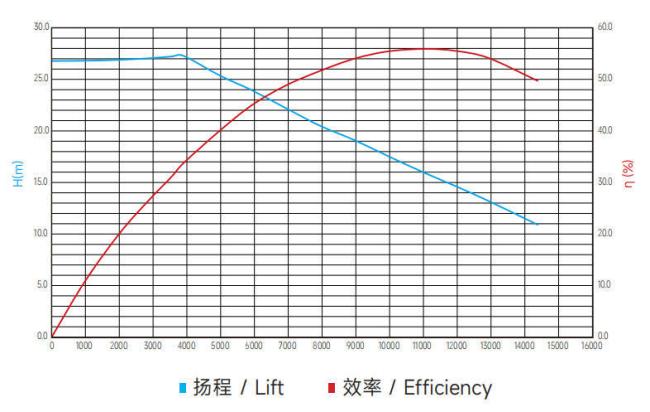

Working performance curve:

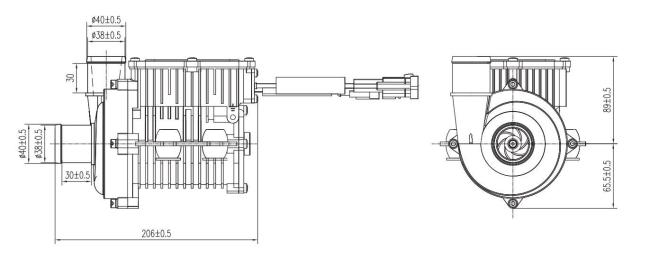

Dimensions(mm):

Workshop pictures:

Certificates:
