24V High Pressure Brushless DC Centrifugal Blower OWB9260B-24V For Fresh Air Equipment

Blower Features:

1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise

2: High pressure and airflow output by compact size design

3: High efficiency, much more efficient than brush motor blower

4: High reliability, specialized controller make the working more reliable

5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

Technical Parameters:

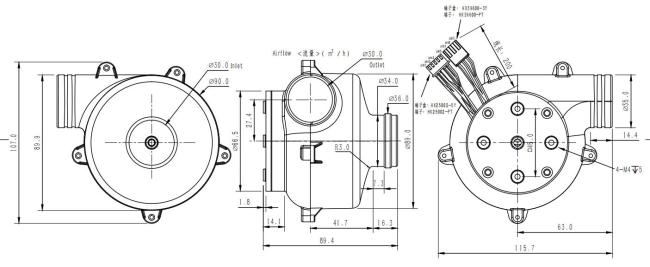

Drawing:

Notes:

1. Don't use max pressure at working point, this point is not safe since airflow is too small.

2. To add a filter onto the inlet can make the blower run longer time

3. The right impeller fun direction is CCW.

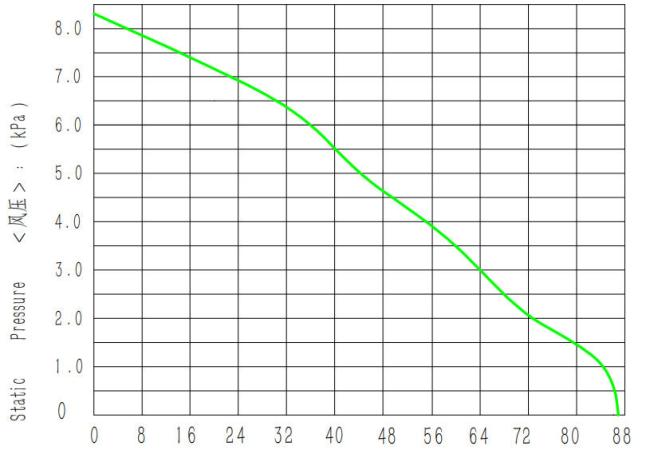

Performance Curve:

OWB9260B-24V Blower can reach maximum 80m³/h airflow at 0 Kpa pressure and maximum 7.5Kpa static pressure.

It has maximum output air power when this blower fun at 3Kpa resistance if we set 100%PWM. It has maximum efficiency

when this blower run at 4Kpa resistance if we set 100%PWM. Other oad point performance refer to above P-Q curve

Application:

1: Buffer air cushion

2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment

Package:
