24V 240W 16m Head Heavy Duty Electric Water Pump For Electric Bus
OWP-7000KL67 240W heavy duty electric water pump for electric bus/truck battery and controller cooling system
Advantages of our electric water pump
* Brushless Motor assembly efficiency max reach to 85%(normal level 70%),controller driving efficiency max reach to 97%
* Shielded brushless motor,long service life ,low power consumption,compact size, high reliability
* Strong pump development capability , professional Ansys Fluent simulation calculation offering high-efficiency customized development.
* Sinusoidal wave controlling circuit ,EMC proved, Automotive grade electronic components .
* Automatically detect no-load/semi-load state and protective self stop, automatically detect the plugging state and protective self stop, detection overload and protective deceleration operation, positive and negative pole reverse protection function.
* Shielded - type inner - rotor structure , IP grade IP67 , insulation grade F.

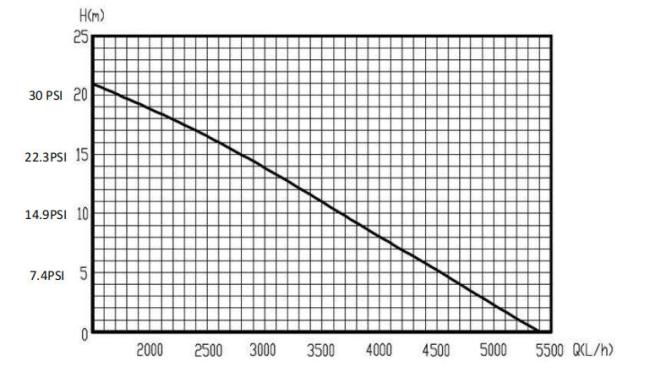

Water Pump Performance Curve:

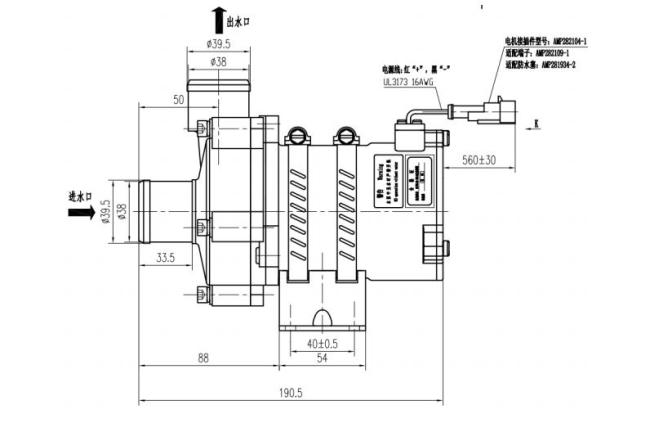

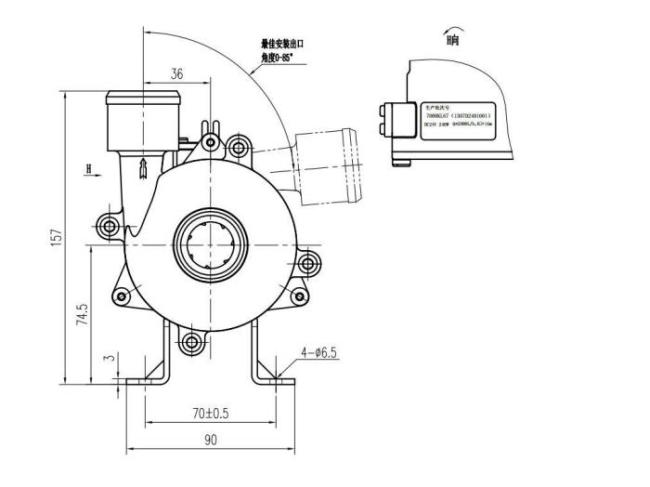

Electric Water Pump External Dimension:
Electric water pump technical Parameters:
| Working Voltage (VDC) | Rated Power (W) | Rated Flow(L/h) | Dimensions(mm) | Weight(g) |
| 24V (18V-32VDC) | 240W | Q=2800L/h, H≥16m | 190*90*157 | 2200g(without Bracket) |
Electric water pump connector model and the corresponding electrical properties:
| AMP282104(Matched Plug AMP282109-1) | 1 | 2 |
| +24VDC | GND |

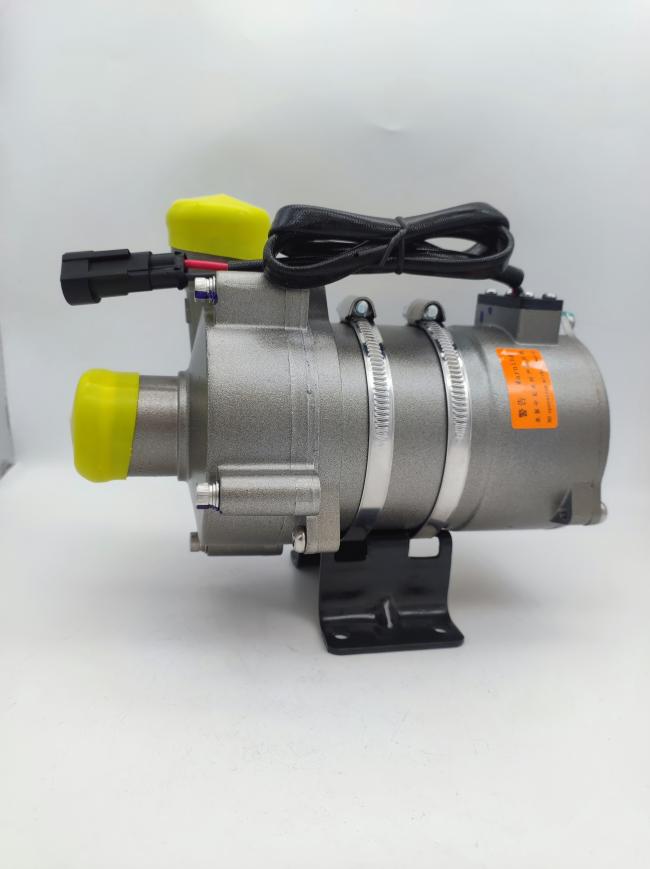

Pump picture:
