2Ph Hybrid Stepper Motors 45mm 0.075Nm NEMA11 28mm
JQ28HB45-0956A 1.8Degree 2-phase stepper motor
Quick Details:
| Model | Frame Size | Phase | Shaft Type |
Body Length (mm) |
Holding Torque (Nm) |
Rated Current (A) |
| JQ28HB45-0956A | NEMA11(28mm) | 2 | Single Shaft | 45 | 0.075 | 0.95 |
Mechanical Size:
Wiring Diagram:

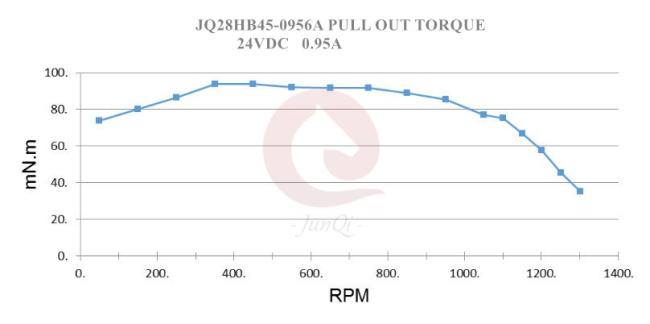

Torque Curve:
Specification:
| Items | Value |
| Phase | 2 |
| Step Angle | 1.8degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max Radial force | 28N 5mm from flange |
| Max Axial Force | 7N |
| Dielectric Strength | 600VAC / 1S |
| Insulation Resistance | 100MΩ ,500VDC |
| Ambient Temperature | -20℃~ +50℃ |
| Insulation Class | Class B |
| Certification | CE |
| IP Rate | IP30 |
| Lead Wire Type | Leads |
| Shaft Type | Single shaft |
| Rotor Inertia | 12 g.cm^2 |
| Frame Size | 28 mm |
| Body Length | 45 mm |
| Holding Torque | 0.075 N.m |
| Current/Phase | 0.95 A |
| Resistance | 3.4 Ω |
| Inductance | 1.2 mH |
| Winding Type | Unipolar |
| Detent Torque | 0.006 N.m |
| Front Shaft Length | 20 mm |
| Lead Wire No. | 6 |
| Weight | 0.14 kg |
| Shaft Diameter | 5 mm |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
