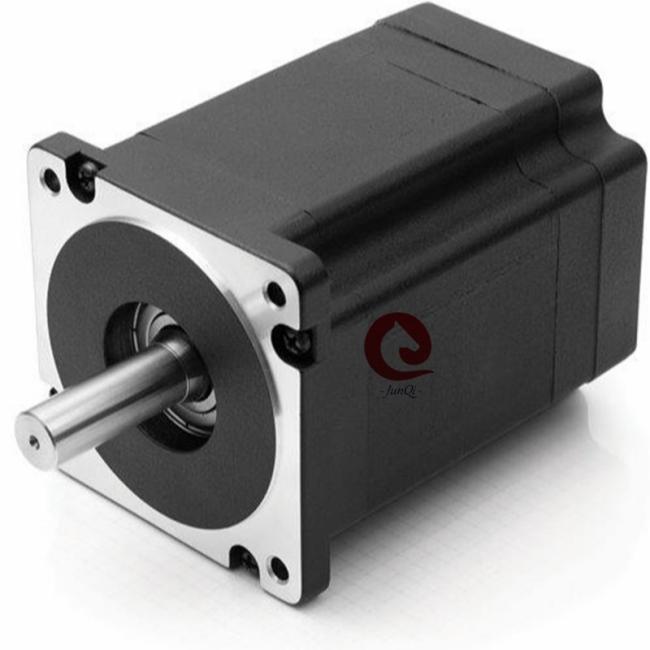

60mm Square 160V DC High Voltage Brushless Motor 5000RPM 0.1N.M
60mm BLDC Motor, JQ60BLS01 160VDC, 5000RPM torque 0.1N.m Square Body brushless dc motor
Quick Details:
| Model |
Frame Size |
Rated Power W) |
Body Length (mm) |
Rated Voltage (VDC) |
Rated Torque (Nm) |
Rated Current (A) |
Rated Speed (RPM) |
| JQ60BLS01 | 60mm | 57 | 55 | 160 | 0.1 |
0.35 |
5000 |
Features:
1. Wide speed range, Smooth torque output
2. Excellent Speed Stability
3. Small and High Power
4. High Efficiency and Energy-Saving.
General Specification:
| Item | Specification |
| Winding Type | Star Connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 115N( 20mm from the flange) |
| Max.Axial Force | 45N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Type | Color | Functions |
|
UL3266 AWG22 |
Red | Vcc |
| Blue | U(Hu) | |
| White | V(Hv) | |
| Green | W(Hw) | |
| Black | GND | |
|
UL3266 AWG18 |
Red | Phase U |
| Yellow | Phase V | |
| Black | Phase W |
Electricl Specification:
| Item | Unit | JQ60BLS01 |
| Number of poles | 4 | |
| Number of Phase | 3 | |
| Rated Voltage | VDC | 160 |
| Rated Torque | N.m | 0.1 |
|
Continuous stall torque |
N.m | 0.12 |
| Rated Speed | RPM | 5000 |
| Rated Power | W | 57 |
| Peak Torque | N.m | 0.3 |
| Peak Current | A | 1.6 |
| Line to Line resistance | ohms@20℃ | 31 |
| Line to Line Inductance | mH | 70 |
| Torque Constant | N.m/A | 0.196 |
| Back EMF | Vrms/KRPM | 14.6 |
| Rotor Inertia | g.cm2 | 50 |
| Motor Length | mm | 55 |
| Weight | kg | 0.7 |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!

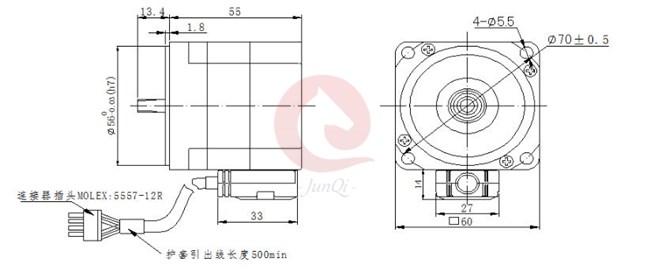

Mechanical Size:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
