JUNQI JP300S-540VDC Electric Coolant Water Pump 3600L/h Flow 14m lift For Commercial Vehicle Cooling System

Water Pump Technical Parameters:

Model: JP300S-540V
Rated Voltage: 540VDC
Rated Power: 300W
Max power: 320W
Rated flow rate: 3600L/h
Rated Head: 14m
Working voltage: 400V~800VDC
Ambient temperature: -40~85℃
Medium: 50% glycol aqueous solution
Protection level: IP68
Working life: more than 20000h
Working noise: less than 61dB
Protection function: Blocked rotation, reverse connection, low voltage, over voltage, over current, over temperature, idling.

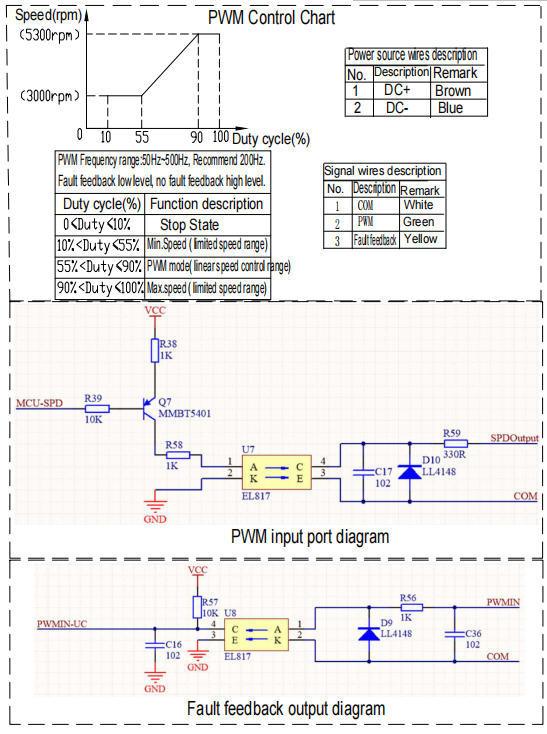

PWM control chart and fault feedback connection diagram:

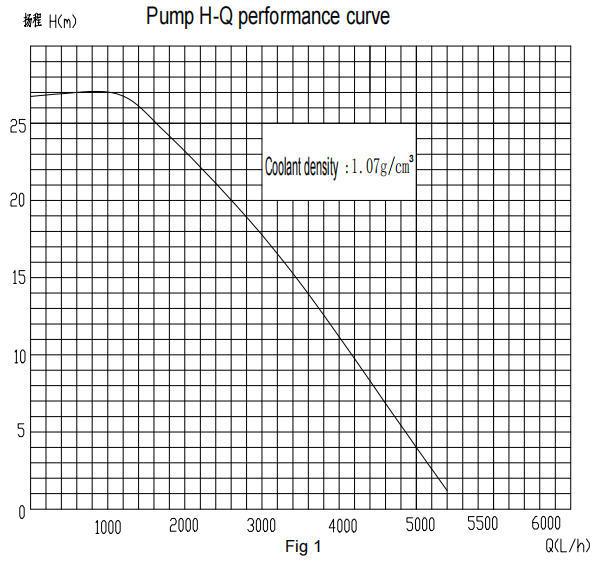

H-Q performance curve:

Dimensions (mm)

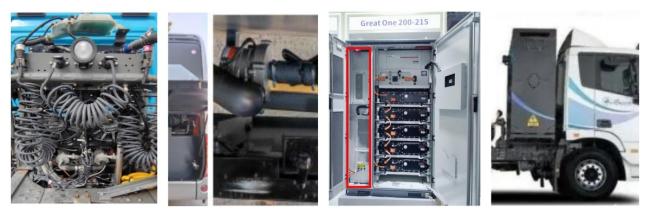

Applications:

Eelectric Car, Electric Bus, Electric Truck, Fuel Cell cooling, Commerical Vehicle Battery,Thermal Management Liquid Cooling Systme, Battery Energy Storage cooling,  Data Center, Immeersion cooling, Turbocharger intercooler cooling pump, Supercomputer cooling, Electricized engineering vehicles,  Fluid cooling solutions......

FAQ:

Q: How long is your delivery time?

A: Sample order is 7~10 days.

Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.

Q: How long is your warranty of pump?

A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.

Q: What’s the payment method?

A: Paypal,T/T,

Q: What certificates have your pumps passed?

A: All our products have passed CE, RoHS, Reach.

Parts of pumps met UL.

Q: What certificates have your company passed?

A: Our company has passed IATF16949, ISO9001,

If you want to get more information about products, please feel free contact with us via  ivanzhu@junqitrading.com
