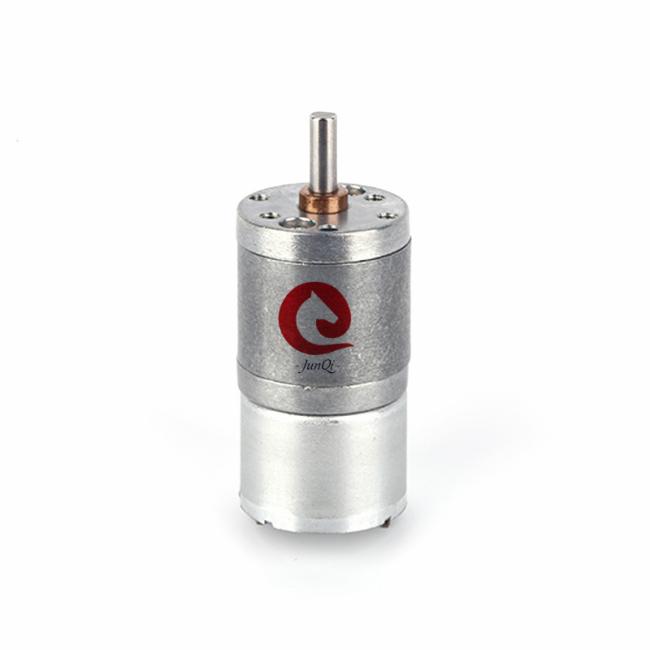

JQM-25RS310 DC Reduction Gearbox Motor Paper Dispenser Induction Bin Motor

Price Negotiable

Price: USD5-usd8/pc (Negotiable)

MOQ: 50pcs

Delivery Time: as confirmed

Brand: Junqi

Product Description

JQM-25RS310 DC Reduction Gearbox Motor Paper Dispenser Induction bin Motor

Driving Motor Data:

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
JQM-3100066000	6	≤33	6000	≤160	4800	10	0.5	≥45	≥550
JQM-3100129200	12	≤33	9200	≤100	8400	5	0.44	≥51	≥510
JQM-3100248000	24	≤20	8000	≤70	6400	10	0.67	≥45	≥190

Technical Data of Gearbox:

Reduction Stage	4	5	6	7	8
Reduction Ratio	20.4K	35.8K, 45K, 50K	78K, 99K, 110K, 122K, 127K	217K, 241K, 268K, 298K, 331K	478K, 531K, 590K, 656K, 729K
Length of Gearbox "L" mm	20.8	23.2	25.6	28	29
Gearbox Efficiency	65%	59%	53%	48%	43%

1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. ound Gearbox size: 25mmφ*L
4. Torque: 0.1-5kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based

Gear Motor Mechanical Size:

Gear Motor Electric Data:

Model Number	Rated Volt.	No Load		At Max Efficiency				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA	rpm	mA	Kgf.cm	W	mA	Kgf.cm
JQM-25RS31000310500-35K	3V	280	≤180	220	≤550	0.13	0.29	≥1350	0.5
JQM-25RS3100037500-50K	3V	150	≤180	85	≤550	0.3	0.26	≥850	0.64
JQM-25RS3100035000-78K	3V	63	≤95	47	≤235	0.15	0.07	≥635	0.59
JQM-25RS3100032300-217K	3V	10	≤30	7	≤65	0.45	0.03	≥135	1.5
JQM-25RS3104.58200-78K	4.5V	106	≤125	71	≤480	0.5	0.36	≥980	1.8
JQM-25RS3104.59000-478K	4.5V	18	≤180	13	≤450	2.5	0.33	≥830	8
JQM-25RS3100066000-20.4K	6V	236	≤150	170	≤300	0.23	0.40	≥500	0.7
JQM-25RS3100066000-35.8K	6V	171	≤100	130	≤200	0.15	0.20	≥500	0.8
JQM-25RS3100066000-217K	6V	27.6	≤75	20.3	≤275	1	0.21	≥500	3.4
JQM-25RS3100064500-217K	6V	18	≤75	12.8	≤160	0.9	0.12	≥250	0.7
JQM-25RS3100064500-355K	6V	12	≤50	8.7	≤105	1.1	0.10	≥240	4
JQM-25RS3100129200-20.4K	12V	450	≤70	336	≤250	0.16	0.55	≥500	0.6
JQM-25RS3100129200-45K	12V	204	≤110	137	≤340	0.5	0.70	≥540	1.5
JQM-25RS3100129200-50K	12V	184	≤50	142	≤230	0.39	0.57	≥470	1.5
JQM-25RS3100129200-122K	12V	75	≤100	56	≤270	0.85	0.49	≥500	3
JQM-25RS3100129200-217K	12V	42	≤80	30	≤240	1.5	0.46	≥500	5.4
JQM-25RS3100129200-531K	12V	17	≤75	13	≤240	2.5	0.33	≥400	8
JQM-25RS3100124500-45K	12V	100	≤15	80	≤55	0.14	0.11	≥152	0.62
JQM-25RS3100124500-99K	12V	45	≤35	28	≤60	0.45	0.13	≥100	1.3
JQM-25RS3100126000-122K	12V	49	≤50	35	≤140	0.75	0.27	≥250	2.4
JQM-25RS3100126000-478K	12V	12	≤80	6.7	≤180	3.3	0.23	≥220	8
JQM-25RS31002412000-45K	24V	250	≤55	202	≤185	0.43	0.89	≥550	1.75
JQM-25RS3100247300-122K	24V	60	≤40	42	≤80	0.76	0.33	≥145	2.3
JQM-25RS3100248000-331K	24V	24	≤60	15	≤150	2	0.31	≥180	5
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in
