220VAC Max Lift 30m Max Flow 5000L/H Brushless DC Water Pump JP400C With Chuck Plate For Battery Energy Storage Cooling
Water Pump Features:
♦ Built-in a variety of protection functions and power reverse protection function;
♦ Troubleshooting: When there is a fault, the fault feedback line is low, and when there is no fault, the fault feeback line is high ( the fault level is based on customer requirements.);
♦ BLDC motor long service life, high effiency.
Technical Parameters:
| JP400C-220V | |
| Item | Description |
| Rated Voltage | AC220V |
| Rated Currrent | |
| Operating voltag | AC165-265V |
| Rated Power | 400W |
| Working Environment | -40~105℃ |
| Working Medium | 50% glycol aqueous solution |
| Protection level | IP68 |
| Working noise | ≤61dB ( Distance 1m) |
| Working life | ≥20000h |
| Weight | 3.6 kg |
| Protection function | Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling. |

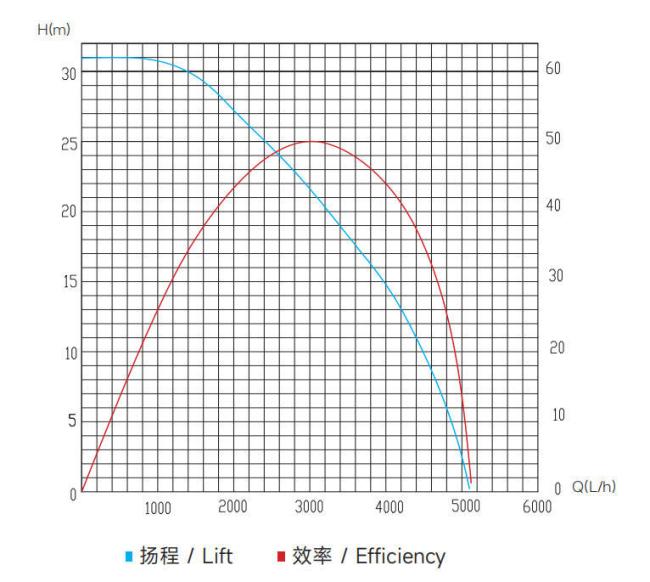

Working Performance Curve:
Dimensions(mm)
Technical Advantages:

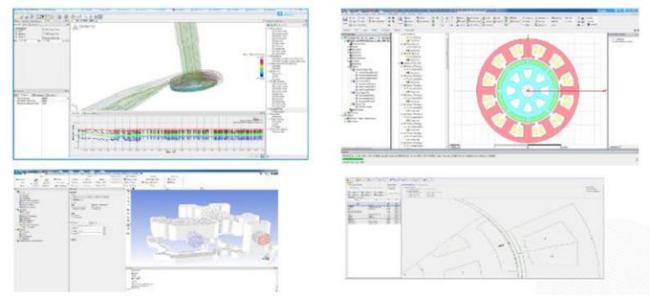

1.Professional R&D Software, Liquid design and Electromagnetic theory design
2. Professional Electronic control sofware and system
3. Self-developed coolant pump controller, enhance technological barriers of ourself water pump
4. Multiple physical field coupling simulation verification makes our pump about 5% higher efficiency than other competitors.
Applications:
Eelectric Car, Electric Bus, Electric Truck, Fuel Cell cooling, Commerical Vehicle Battery,Thermal Management Liquid Cooling Systme, Battery Energy Storage cooling, Data Center, Immeersion cooling, Turbocharger intercooler cooling pump, Supercomputer cooling, Electricized engineering vehicles, Fluid cooling solutions......
Certificate: Applications:
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001,
