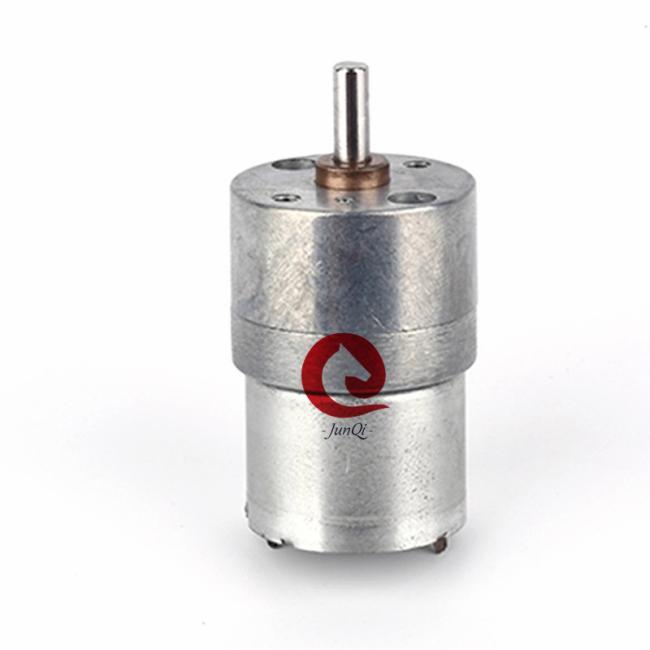

JQM-27RS 310 27mm Spur Gear DC Motor 6V/ 12V For Electric Toy
1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. Round Gearbox size: φ27mm*L
4. Torque: 0.1-3kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| JQM-3100066000 | 6 | ≤33 | 6000 | ≤160 | 4800 | 10 | 0.5 | ≥45 | ≥550 |
| JQM-3100129200 | 12 | ≤33 | 9200 | ≤100 | 8400 | 5 | 0.44 | ≥51 | ≥510 |
| JQM-3100248000 | 24 | ≤20 | 8000 | ≤70 | 6400 | 10 | 0.67 | ≥45 | ≥190 |
Technical Data of Gearbox:
| Reduction Stage | 4 | 5 | 6 | 7 | 8 |
| Reduction Ratio | 19K, 27K | 36K, 52K, 76K, 94K | 100K, 145K, 210K | 278K, 402K, 583K | 771K, 1119K, 1621K |
| Length of Gearbox "L" mm | 18 | 20 | 22 | 24 | 26 |
| Gearbox Efficiency | 65% | 59% | 53% | 48% | 43% |

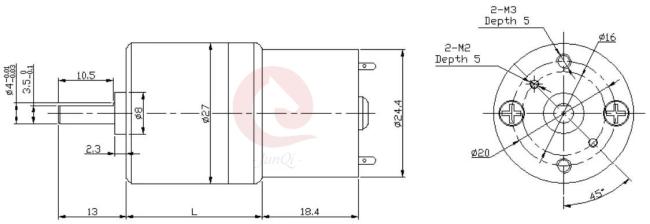

Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-27RS3100096200-100K | 9V | 62 | ≤80 | 47 | ≤230 | 0.66 | 0.32 | ≥480 | 2.1 |
| JQM-27RS3100128000-52K | 12V | 153 | ≤50 | 108 | ≤200 | 0.35 | 0.39 | ≥360 | 1.2 |
| JQM-27RS3100129200-210K | 12V | 43 | ≤110 | 30 | ≤320 | 1.5 | 0.46 | ≥490 | 4.7 |
| JQM-27RS3700126000-210K | 12V | 28 | ≤80 | 21 | ≤300 | 2.9 | 0.63 | ≥650 | 12 |
| JQM-27RS3100129200-771K | 12V | 12 | ≤45 | 10 | ≤184 | 3.2 | 0.33 | ≥490 | 16 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
