Nema24 1.8 degree 45mm 2.8A 1.1N.m High Torque JQ60STH45-2008AF For 3D Printer Device
60STH Series Stepper Motor
| Item | Specification |
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5%(full step, no load) |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 75N( 20mm from the flange) |
| Max.Axial Force | 15N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
| Model |
Current/ Phase |
Resistance/ Phase |
Inductance/ Phase |
Holding Torque |
Detent torque |

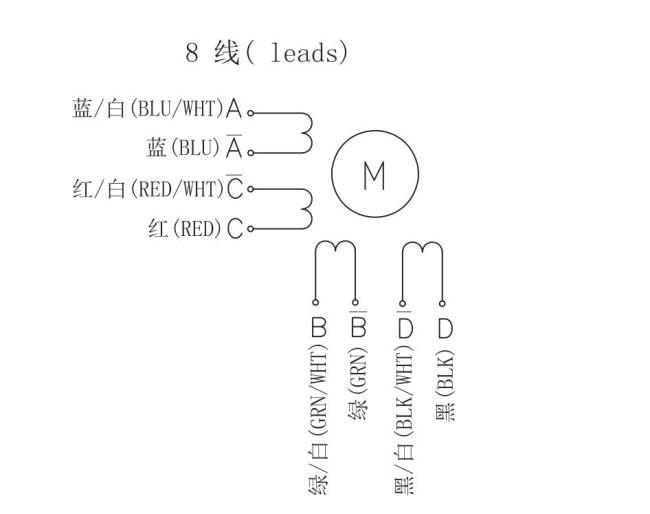

#of Leads |
Rotor Inertia |
Length | Weight | |
| Single shaft | A | Ω | mH | N.m | N.m | # | g-cm² | mm | kg | |
JQ60STH45-2008AF |
unipolar | 2.0 | 1.5 | 2 | 0.78 | 0.05 |
8 |
275 |
47 |
0.6 |
| parallel | 2.8 | 0.75 | 2 | 1.1 | ||||||
| series | 1.4 | 3.0 | 8 | 1.1 |
More Options:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector

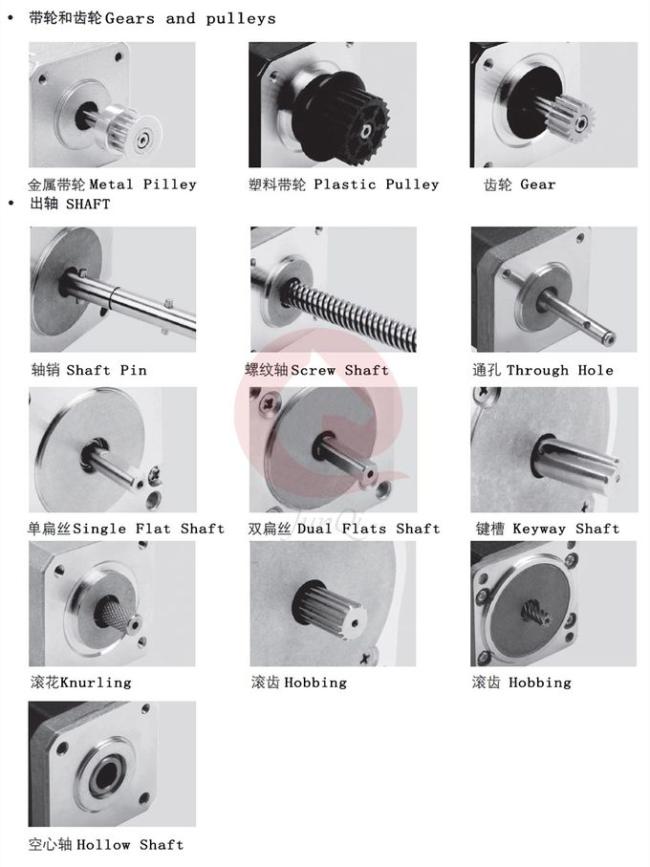

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

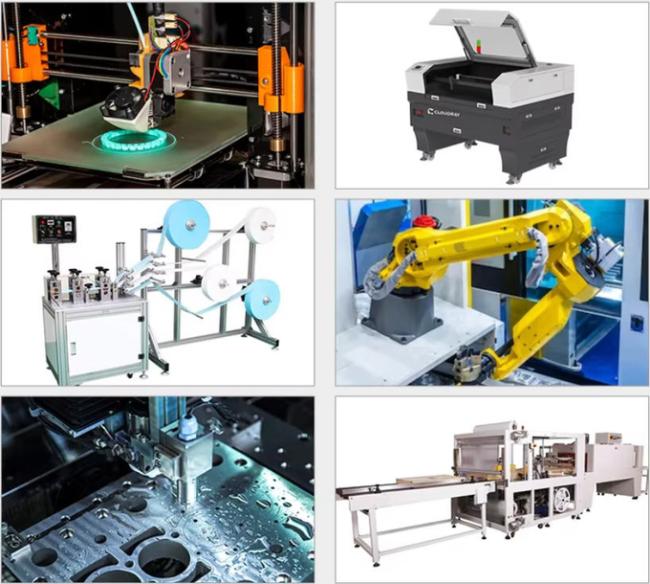

Motor Application Fields:
Medical: Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift
Textile: Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.
Industrial Control: CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.
Logistics: Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.
Household Electrical: Mover;Swimming Pool Cleaner;Coffee Machine; TV System
Office Automation: Printer, 3D Printer
Automobile: Seat Pump; Door System; Air Damper/Mixer; Lamp System
