30N.M Max Torque Round Planetary Gear Box Brushless DC Motor 36V NEMA23 57mm

Price Negotiable

Price: USD40-90/PC Negotiable

MOQ: 5pcs

Delivery Time: 4weeks after get payment (base on order),

Brand: Junqi

Product Description

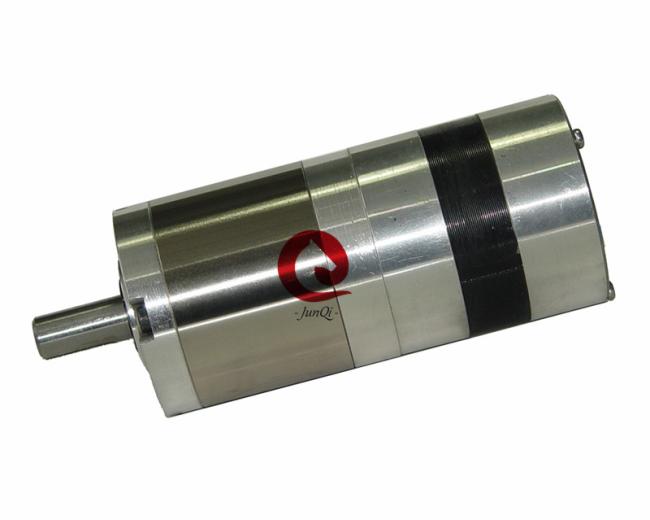

36V 5000RPM NEMA23(57mm) Round Body With 56JM300K Planetary Gear Box Brushless DC Motor, Max Torque 30N.M

Advangtages of Brushless DC Motor:

1.High torque to weight ratio

2.Longer lifetime(no brush and commutator erosion)

3. More torque per watt( increased efficiency)reliability

4. Elimination of ionizing sparks from the commutator

5. Reduced noise

6. Reduction of electromagnetic interference(EMI)

Features:

1. Wide Speed Range, Flat Torque

2. Compact And High Power

3. Excellent Speed Stability

4. High Efficiency And Energy-Saving

Wire Diagram:

Type	Color	Functions
UL1430 AWG26	Reb	Vcc
	Blue	Ha
	Green	Hb
	White	Hc
	Black	GND
UL1430 AWG20	Yellow	Phase U
	Red	Phase V
	Black	Phase W

Driving Motor Specification:

Item	Unit	JQ57BL54-3650	JQ57BL54-3650A
Number of poles		4	6
Number of Phase		3	3
Rated Voltage	VDC	36	36
No-Load Speed	rpm	5000	5000
Rated Speed	rpm	4000	4000
Rated Torque	N.m	0.11	0.2
Rated Power	W	46	83
Peak Torque	N.m	0.39	0.6
Peak Current	A	6.8	14
Line to Line resistance	ohms@20℃	1.63	0.87
Line to Line Inductance	mH	4.4	1

**Notes: Above is standard motor, we can be designed &manufactured with customized request!!

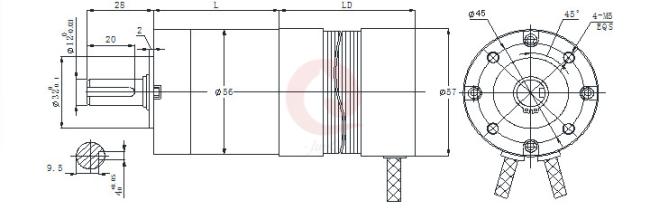

Mechanical Size:

Brushless DC Gear Motor Technical Data:

JQ57BL54-3650/56JM300K Gear Motor data(LD=53.6mm)

Reduction Ratio		3.60	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
Number of Gear Trains		1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
Gearbox Length(L)	mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
Rated Speed	rpm	1111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
Rated Torque	N.m	0.36	0.42	0.53	1.2	1.3	1.6	2.0	2.5	3.5	4.2	4.9	5.8	7.7	9.7	11	13	16
Max.Permissible load in a short time	N.m	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

JQ57BL54-3650A/56JM300K Gear Motor data(LD=53.6mm)

Reduction Ratio		3.60	4.25	5.33	13	15	18	23	28	43	52	61	72	96	121	154	187	220
Number of Gear Trains		1	1	1	2	2	2	2	2	3	3	3	3	3	3	4	4	4
Gearbox Length(L)	mm	37.8	37.8	37.8	49.5	49.5	49.5	49.5	49.5	60.8	60.8	60.8	60.8	60.8	60.8	71.9	71.9	71.9
Rated Speed	rpm	1111	941	750	308	267	222	174	143	93	77	66	56	42	33	26	21	18
Rated Torque	N.m	0.65	0.77	1.0	2.1	2.4	2.9	3.7	4.5	6.3	7.6	8.9	11	14	18	20	24	29
Max.Permissible load in a short time	N.m	9	9	9	36	36	36	36	36	72	72	72	72	72	72	90	90	90

We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: Brake, connector , Encoder

Customized Design: Customized Winding, Customized Flange, Customized Shaft....
