JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump

Price Negotiable
Price: negotiation
MOQ: 12pcs ( sample available)
Delivery Time: depend on the order quantity /Negotiable
Brand: Junqi
Product Description

JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump





Description:



1. Rated voltage :DC 12V
2. Rated current :6.7A
3. Operating voltage:DC 9~16V
4. Rated power:80W
5. Working environment:-40°C~105°C
6. Working medium:50% glycol aqueous solution
7. Protection level:IP67
8. Working noise:≤45dB(Distance 1m)
9. Working life:≥20000h
10. Weight:0.8kg
11. Protection function:Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling.

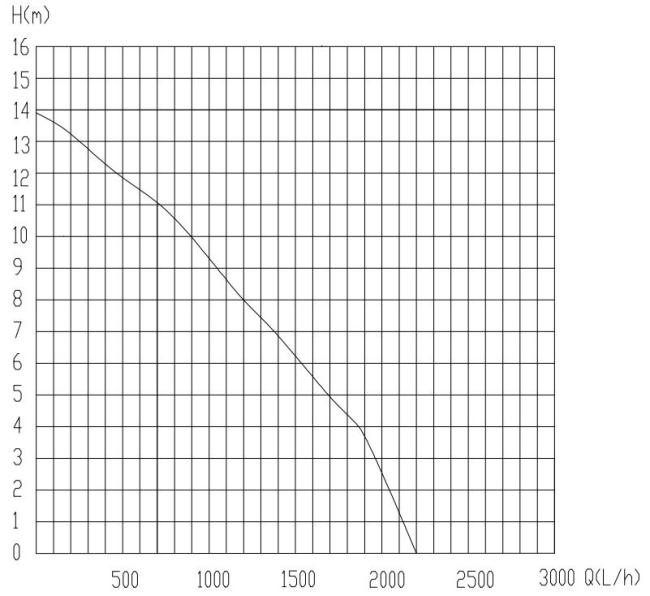

P-Q Performance Curve:

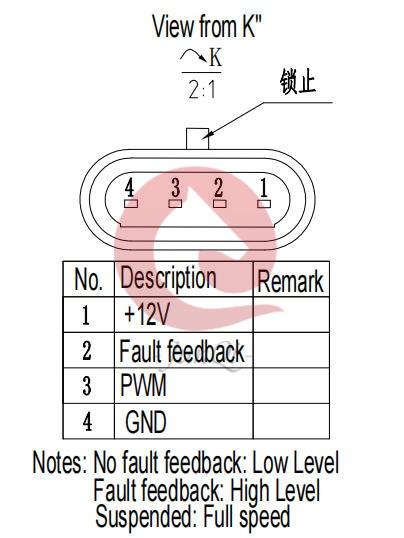

Pin port Description:

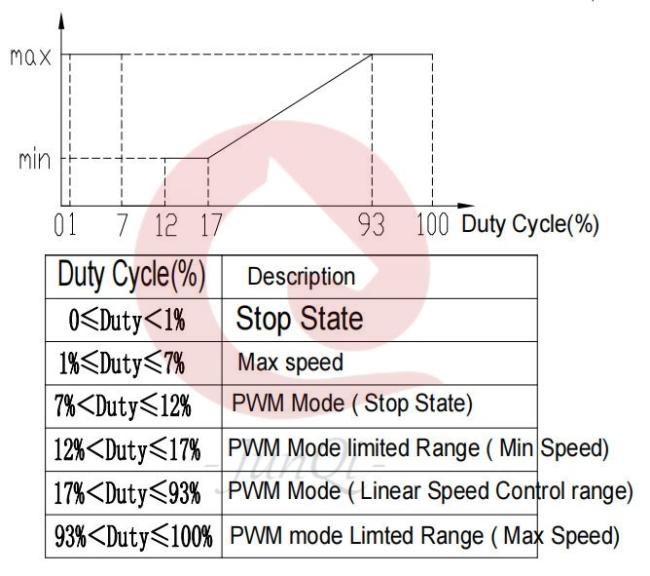

PWM Control Chart:

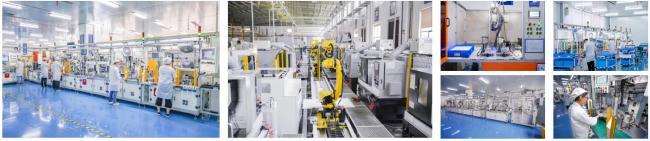

Workshop:

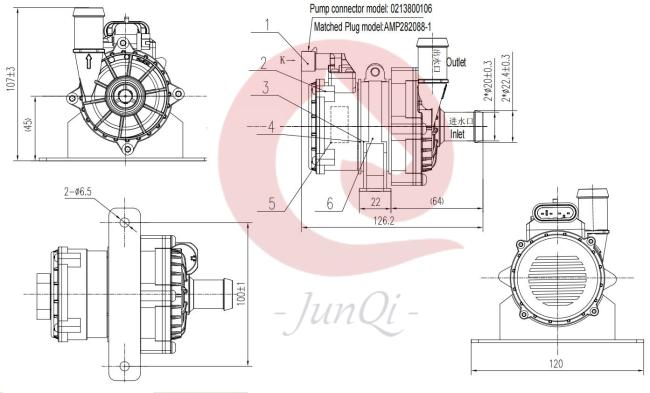

Dimensions(mm):
