JP200 Brushless DC Motor Water Pump 100L/Min For Hybrid Bus Motor Control Cooling
Price:
Negotialbe
MOQ:
1 set
Delivery Time:
base on order,
Brand:
junqi
Product Description
Junqi JP200 Brushless DC Motor water pump high flow 100L/min for Pure Electric Bus and Hybrid Bus Motor control cooling
Technical Parameters Table:
| No. | Technical Parameters | |
|
1 |
Medium Liquid | 50% Glycol aqueous solution(Preferred choose Organic Type,grain size≯0.35,ppm≯0.1g/L) |
|
2 |
working temperature | -40℃~85℃ |
|
3 |
Normal Medium Temperature | 10℃~90℃ |
|
4 |
Storage Temperature | -50℃~90℃ |
|
5 |
Extreme | -40℃~105℃ |
|
6 |
Flow Rate | 6000L/H |
|
7 |
Head | 5.5m |
|
8 |
Rated Voltage | DC24V |
|
9 |
Voltage Range | DC18~32V |
|
10 |
Power | 180W±10W |
|
11 |
Customer choice | PWM/ Fauilt feedback/CAN Function |
|
12 |
Protection Level | IP68 |
|
13 |
Weight | ≤1.5kg(without Bracket) |
|
14 |
Noise | ≤58dB(A) |
|
15 |
Service Life | ＞20000h |
|
16 |
OD of inlet/outlet | φ38 |
|
17 |
Lead wire Type | Integrated with pump body or lead wires with connectors |
|
18 |
Protection Function | Over Current Protection, Over/Low Voltage Protection, Over Temperature Protection, Locked-Rotor Protection,Dry-Running Protection, Reverse Polarity Protection. |
2. Mechanical installation
2.1 The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed
vertically, the outlet port should be upward .
2.2 In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should
be vertical or in the upper of the impeller. (see figure 1 )
2.3 The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air
discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).
2.4 Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid
medium .
Performance Curve:
Attentions:
1. Please add a fuse in the water pump power supply circuit to cut off the power supply when appearance the failure.
2. Avoid the water pump is covered or blocked and affected by the surrounding devices heating. The installation space is convenient for maintenance and replacement operation.
3. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature
4. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
6.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life

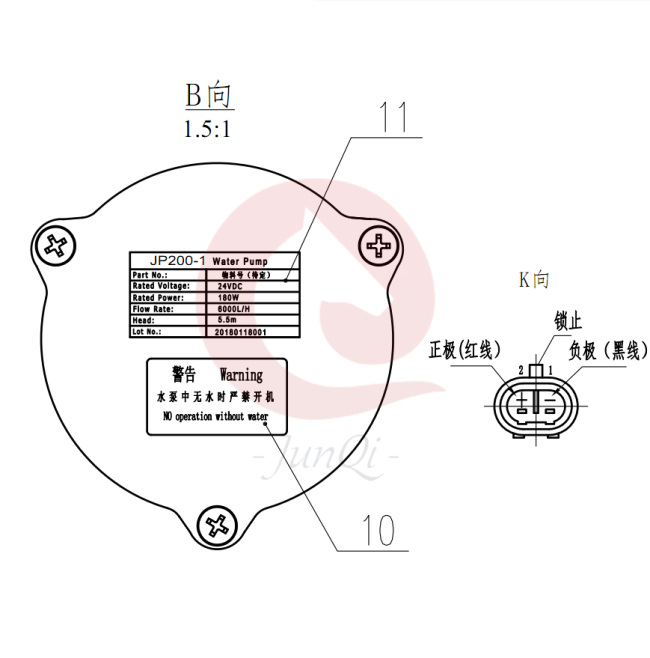

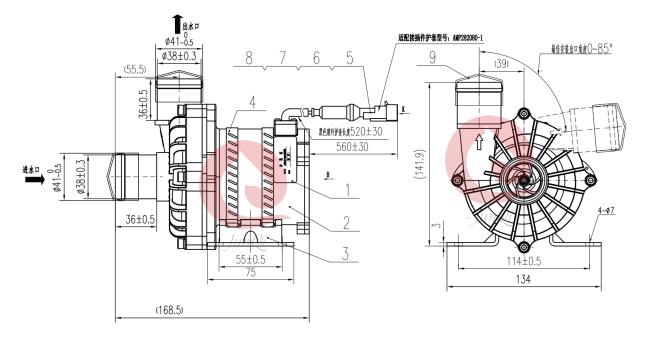

Mechanical Dimensions:
Applications:
1.The engine cooling circulation Pump
2.Motor control cooling cycle of 12m pure electric bus and hybrid bus
3. The New enery automotive cooling cycle
4. Heating vertilation air conditioning
5. Automotive engine cooling circulation
6.Truck motor control cooling cycle.
