High Power Hot Wedge Welders Machine Geomembrane Sealing HDPE PP 0.8-3mm CX500S

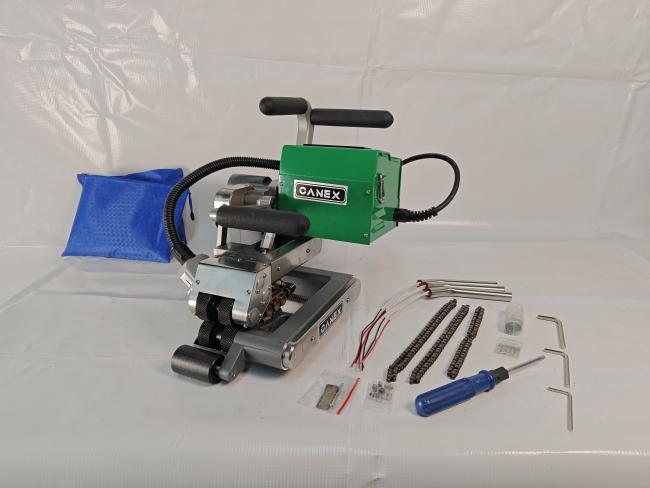

CX500S Geomembrane Welding Machine With Dual Purpose Use For Circular Pond And Tank For HDPE PP Geomembrane

Product Description:

The CX500S has a power of 1800W and a weight of 10kg. This is a dualpurpose welding machine, support the same side into the film, that is, the two films are welded from the left side, the same side into the film unilateral welding, generally used for biogas pond, landfill cover, circular aquaculture pond welding, normal can also be both sides into the film, left and right into the film lap welding.

Product Specifications:

Applications:

CX500S is a high-quality geomembrane sealing welder, which is used in the sealing of landfills, circular aquaculture ponds and tanks.

Product advantages:

1. Main Frame Design

The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.

2. Precision Bearings

The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.

3. Liquid Crystal Display Screen

The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.

4. Pressure Adjustment

The entire bearing of the machine is imported from Germany.

5. Hot Wedge

Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.

6. Heating Tube

The wading depth of the machine is 50mm (water less than or eaualto 50mm wil no burn the machine). The heating cartridge adopts a curved tube design.
