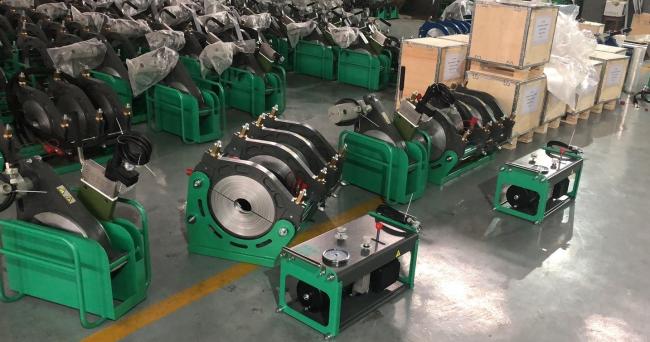

Butt Fusion Welding Machine is an industrial machine which is extensively demanded welding purposes. It works by melting two ends of the plastic or metal and then pressing them onto each other until they get a weld. Our product range is known for providing a tight bond between two broken pieces of metal or plastic.

• A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
• A Teflon coated heating plate with separate temperature control system;
• A electrical milling cutter;
• Hydraulic hoses with quick couplings;
• Support for milling cutter and heating plate.

• Applicable to connect the PE, PP, PVDF pipe;
• By frame, hydraulic station, electric control of milling cutter and the bracket of the heating plate;
• System with real-time welding data record and print functions, and can be derived via USB data;
• System with DVS2207-1 welding standard, and support custom Settings;
• The standard single chip fixture, the pipeline to enhance accuracy

1. Electric milling cutter, safety limit switch, prevent milling cutter from accidentally starting.
2. Frame main part is aluminum alloy material ,45°tilt design.
3. Low start pressure, high reliability sealing structure.
4. Welding position can be changed to facilitate the welding of various pipe fittings.
5. Independent dual-channel timer, can record heat absorption and cooling two time periods, timing end alarm, convenient for users.
6. Large dial, high precision shockproof pressure gauge, more clear reading.
