630mm 1000mm HDPE Plastic Fusion Welding Equipment 400V ISO21307-2017
Price:
USD32,000/set
MOQ:
1
Delivery Time:
Within 7 days
Brand:
MM-TECH
Product Description
400V ISO21307-2017 630 - 1000mm HDPE Butt Fusion Welding Machine
Butt Fusion Welding Machine Introduction
- The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.
- Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control. And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.
- All MM-TECH V-CNC series hydraulic control box is featured with PLC touch screen, extremely user-friendly RFID access technology. Troubleshooting and program upgrade are available for remote control.
Butt Fusion Welding Machine Technical Parameters
| Model | SWT-V1000/630A |
| Welding Range O.D.(mm) | 630 - 1000 |
| Reducer Inserts | 630,710,800,900 |
| Power Supply | 400V 50/60Hz |
| Rated Power(kW) | 23.4 |
| Piston Area(cm²) | 48.8 |
| Overall N.W./G.W.(kg) | 2400kg/2600kg |

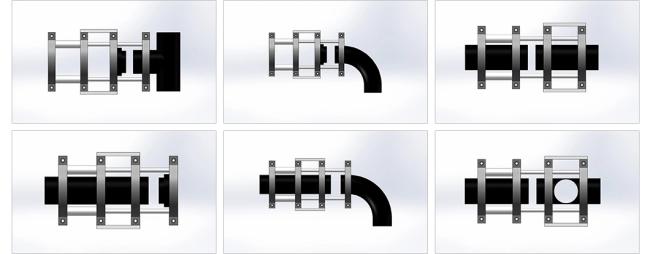

Butt Fusion Welding Machine Fusion Types

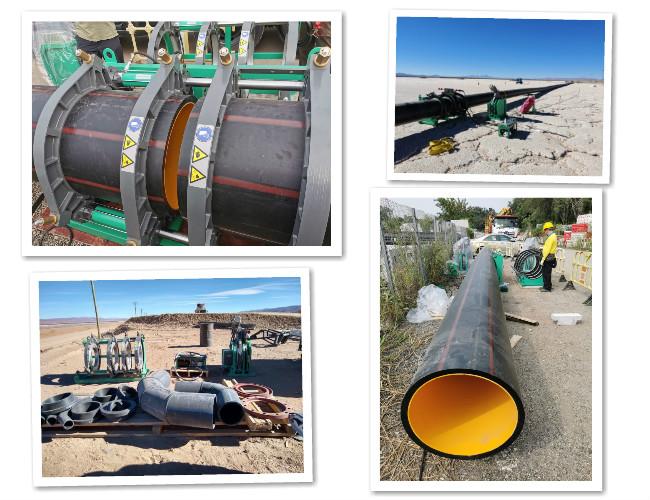

Butt Fusion Welding Machine Application
Quality Guarantee
24 months-- If any parts broken or doesn't work under normal operating, we provide them for free.
