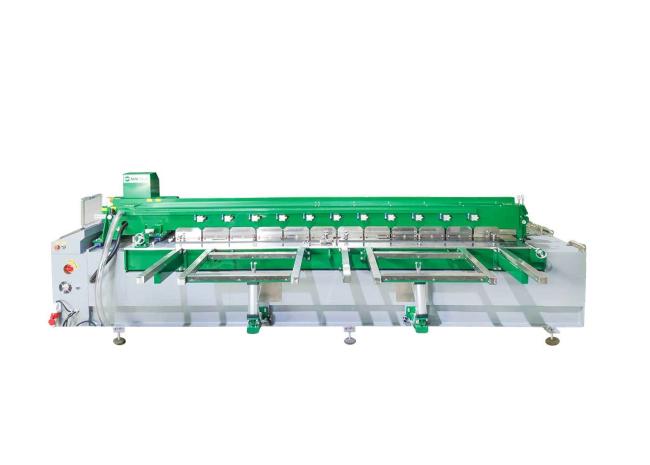

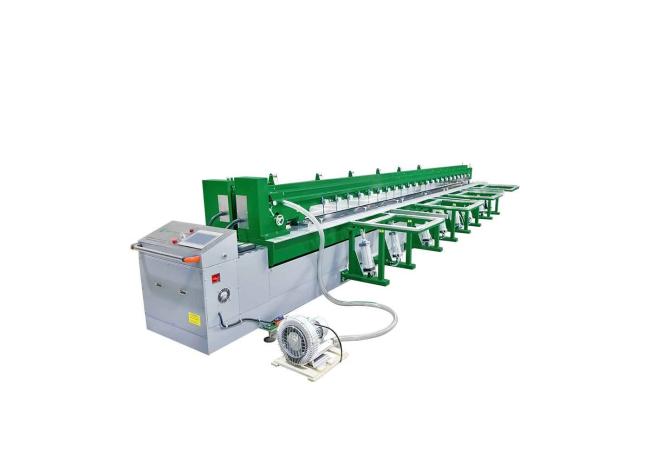

SWT-PH2000 3-30mm Board Sheet LCD Touch Butt Fusion Welding Machine
SWT-PH2000 Sheet Butt Fusion Welding Machine With LCD Touch
Sheet Butt Fusion Welding Machine Description:
This Sheet Butt Fusion Welder for welding 2000mm sheet, it's new steel structure, mechanical synchronous transmission technology, through regulator, in the weld area to achieve uniform pressure. And all actions are cylinder drive, easy to operate, durable.
Sheet Butt Fusion Welding Machine Technical Parameter:
| Machine Length: | 3000mm |
| Machine Width: | 1300mm |
| Machine Height: | 1450mm |
| Machine Weight | 1000KG |
| Max.Working Width: | 2000mm |
| Min.Workable Thickness: | 3mm |
| Max.Workable Thickness: | 30mm |
Sheet Butt Fusion Welding Machine Products:
Sheet Butt Fusion Welding Machine Include:
| Sheet Butt Fusion Welding Machine Standard Configuration | ||
| NO. | Item | QTY |
| 1 | sheet butt fusion machine | 1 set |
| 2 | tool box | 1pcs |
| 3 | hexagon key | 1set |
| 4 | screw driver | 2pcs |
| 5 | wrench | 1pcs |
| 6 | adjustable wrench | 1pcs |
| 7 | coupling | 10pcs |
| 8 | elbow | 10pcs |
| 9 | plier | 1pcs |
| 10 | heating element | 4pcs |
| 11 | pedal | 1pcs |
| 12 | temperature control | 1pcs |
| 13 | air filter valve | 1 set |
| 14 | hose pipe | 10m |
| 15 | support | 1set |
| 16 | triangle support | 2pcs |
| 17 | steel pallet | 1pcs |
| 18 | plywood case | 1pcs |
PS:
Please contact Clara, and she will send you additional heating tubes as gift after you confirm the order

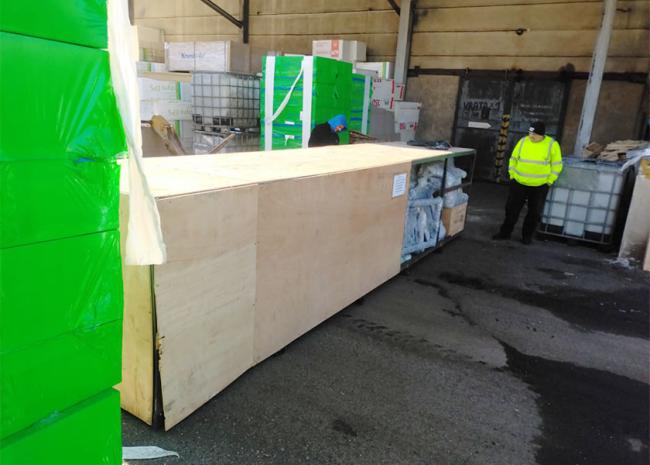

Sheet Butt Fusion Welding Machine Packing:
About the Delivery:
We have sufficient stock can dispatch the machine to you immediately.
