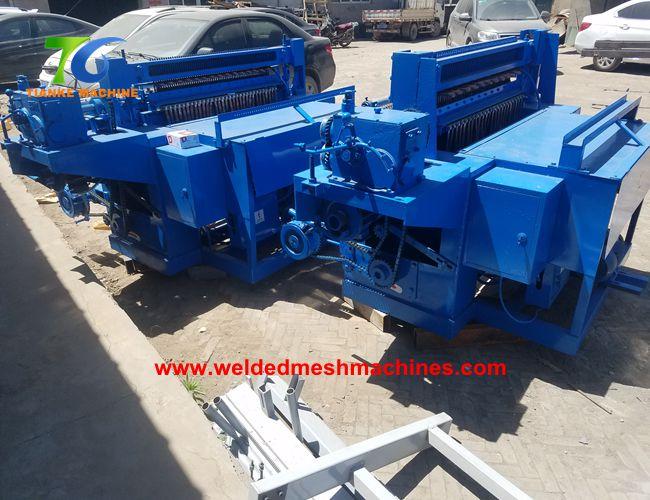

Galvanized Mesh Roll In Indonesia Wire Mesh Roll Welding Machine

Wire Mesh Roll Welding Machine Description

Wire mesh roll welding machine is also called welded wire mesh machine.It is full automatic welding machine.,easy operation for foreign customers.The machine belongs to resistance welding machine.The welding electrodes are high quality copper bar,so the welding surface is very good.The machine is equipped with control cabinet.You can adjust the welding current and welding time on the control panel.

 Wire Mesh Roll Welding Machine Feature

1. The wire mesh roll welding machine is equipped with several welding transformer.But it adopts separate times welding,the transformers weld one by one. So as to reduced the load of the power source, making energy efficient.

2. The wire drawing shaft of the machine is made of heat-treated 45 steel, which is very wear-resistant. This accessory does not need to be replaced.

3. The machine is full automatic welding machine.It is used to welding wire mesh in rolls.The warp wire and the weft wire is fed with wire coils.The worker only need to cut the wire mesh when the roll length is reached and unload the mesh roll from the machine.

Wire Mesh Roll Welding Machine Electronic Components

· Delta (Taiwan) PLC

· Weinview (Taiwan) touch screen

· Schneider (France) low-voltage apparatus

· Schneider (France) relay

· Schneider (France) air switch

· Meanwell (Taiwan) power supply

· Delta (Taiwan) inverter

· Fuji (Japan) servo driver

· Delta (Taiwan) servo driver

Wire Mesh Roll Welding Machine Application

This roll mesh has a wide range of uses. It can be used as plastering net of building wall, cage of farms, for example, chicken cage, bird cage, etc, barbecue net, mountain fence, construction material, hardware production, building construction, mining, etc.
