85 Times /M Mesh Manufacturing Machine 380V 50HZ Fence Mesh Welding Machine
Welded Wire Mesh Netting In South Africa Fence Mesh Welding Machine

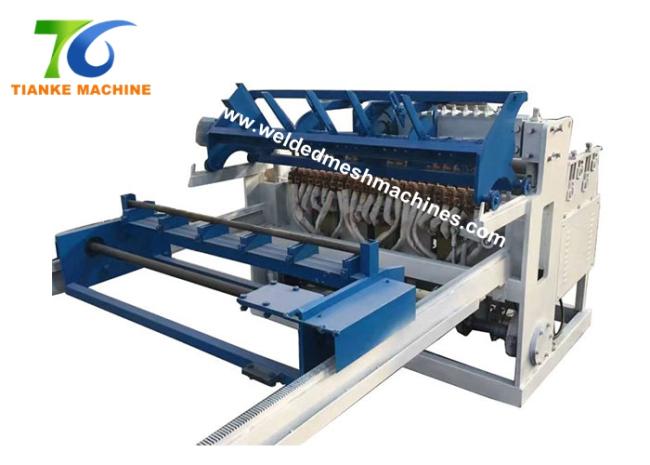

Fence Mesh Welding Machine Description
The fence mesh welding machine can produce mesh panel and mesh roll.The mesh panel is widely used in construction material,security mesh,breeding net,gabion basket,coal mine support net,etc.The mesh roll can be used to encircle mountains and fields.It is convenient for transportation.The mesh panel machine wire material is pre striaighten and cut wire.The weft wire feeding of the mesh roll machine is wire coils.
Fence Mesh Welding Machine Characteristic
This type of machine is the most advance kind in the field of the fence mesh welding machine. It has the character of PLC control system,water cooling when the machine works.It was very precise when you want to adjust the pressure ,The most feature is that the finish mesh panel do not need to slice the side .More ever ,both the weft wire and the longitude wire are pre straighten and cutting,so the mesh surface is very flat.
Fence Mesh Welding Machine Parameter
| No. | Item | Specification |
| 1 | Welding Wire Diameter | Φ2.0-5.0(mm) |
| 2 | Cross Wire Space | 25-200mm(adjustable) |
| 3 | Line Wire Space | 50-200mm(adjustable) |
| 4 | Mesh Width | 2000mm |
| 5 | Max mesh length | 3000mm |
| 6 | Number of Electrodes | 40 |
| 7 | Welding Speed | 70 - 85 times/min |
| 8 | Rated Voltage | Three phase,380V,50HZ |
| 9 | Rated Power | 125KWA*5 (Water cooling system) |
| 11 | Main Motor | 4.0KW (Electromagnetic Brake Motor) |
| 12 | Welding Time | 10ms-100ms |
| 13 | Welding Way | Silicon controlled,separate block welding |
| 14 | Pressure Mode | Adjustable Spring Pressure |
| 15 | Weight | About 3.5 T |
| 16 | Overall Dimension | 5500*2700*1600m |

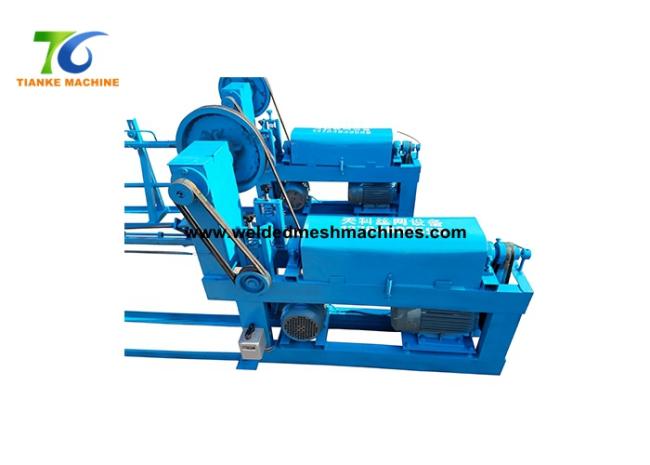

Auxiliary Equipment: Wire Straightening and Cutting Machine
| Name | Wire straightening and cutting machine |
| Wire Diameter | 2.0-5.0 mm |
| Input Voltage | 380V 50Hz ( Customized) |
| Steel wire surface | Black wire,galvanized wire,copper wire,stainless steel wire,etc |
| Cutting Length | 3000mm ( Customized) |
| Tolerance of cut-to-length | ±1mm |
| Linearity of straightening | ≤2mm/m |
| Cutting Method | Mechanical cutting |
| Straightening Speed | 40 m / min |
| Weight180 | 180kg |
| Packaging | Wooden box |
Our Service
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
1. Maintenance period: 1 year
2. Oversea debug service:
If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 15 days after the machines arrive at the destination port.
3. About debugging fees: Visa, round trip tickets, restarante, accomodation all need pay by buyer. Per angineer salary 100 USD/Day.
4.The training fees: free training within debugging days
5.The numbers of technical persons: 1 or 2 technician
6.After the maintenance period: If you need the machine parts,we will provide it as our cost.
