350KG Steel Wire Straightening And Cutting Machine 380V 50Hz
6# Wire CNC Control Hydraulic Wire Straightening And Cutting Machine

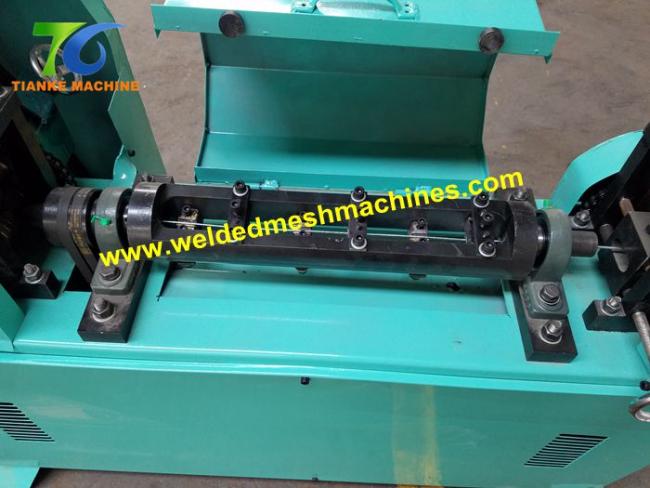

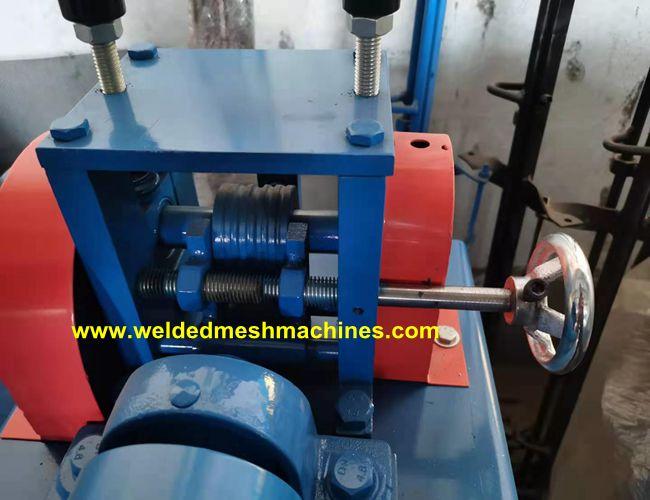

Introduction of Wire Straightening and Cutting Machine
CNC Control Hydraulic Automatica Wire Straightening and Cutting machine processing performance is strong, the wire diameter range is large, the cutting length is no limited, high degree of automation.Automatically set straightening and cutting length in the visual touch screen, adopted with the safety device and automatic counting and stop system. Mainly used for straightening and cutting building cold-rolled steel wire and rebar, hot-rolled steel wire, hot-rolled round steel wire and cold-rolled steel bar etc.
Wire Straightening and Cutting Machine Feature
1. The wire material feeding is based on servo motor.Fast feeding speed and high accuracy.
2. The straightening die is made of alloy with good quality and wear resistance. It doesn't need to be replaced in seven or eight years.

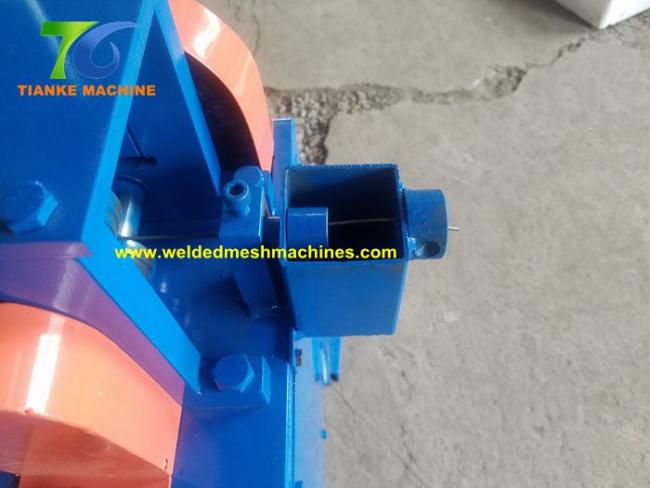

3. The machine is hydraulically cut off. 6mm diameter wire is very easy to cut off. So this machine has a wide range of wire diameter.
Wire straightening and Cutting Machine Service
1. Maintenance period:one year
2. If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
3. The commissioning fees: free
4. The training fees: The buyer need to pay
5. The numbers of technical persons: one technical person per machines at most
6. The fees ,such as round-trip tickets, accomodation etc, are all in buyers’ account. During the maintenance period: the parts damaged non-artificially will be provided free of charge. If you need the technicians, we will assign the expertised staff to your company. And the fees,such as round-trip tickets, accomodation etc, are all in your account. After the maintenance period: If you need the machine parts, we will provide it as our cost. If you need the technicians, we will assign the expertised staff to your company. And the fees, such as round-trip tickets, accomodation etc, are all in your account.
Wire Straightening And Cutting Machine Parameter
| Name | CNC hydraulic Wire straightening and cutting machine |
| Wire Diameter | 2.0-6.0mm |
| Input Voltage | 380V 50Hz ( Customized) |
| Steel wire surface | Galvanized wire,Black wire,Low carbon steel wire |
| Cutting Length | Customized |
| Tolerance of cut-to-length | ±1mm |
| Linearity of straightening | ≤2mm/m |
| Cutting Method | Hydraulic cut off |
| Max. straightening speed | 40 m / min |
| Weight | 350kg |
| Package | Wooden box |
Packaging and shipping
1. Packed in wooden case, or customized.
2. FOB Tianjin or other China main port by sea.
3. FOB Beijing airport or China main airport by air.
