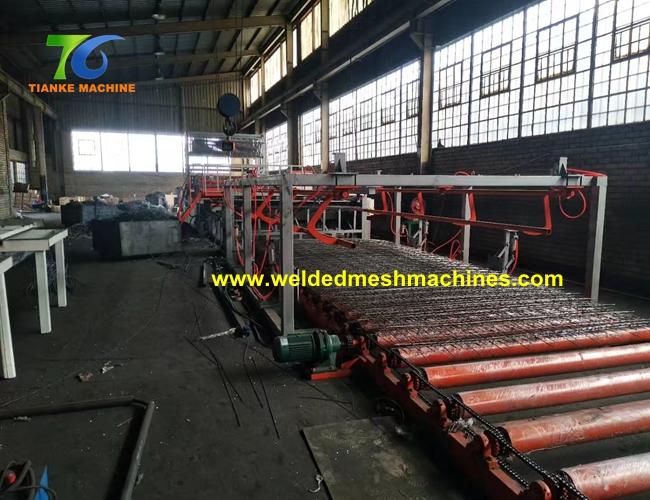

Reinforcing Concrete Mesh Welding Machine Description

Reinforcing concrete mesh welding machine, also called BRC mesh welding machine, Construction mesh welding machine,Ribbed rebar mesh welding machine.

The reinforcement concrete mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc. With more-than-20years experience in design and manufacture, our BRC mesh welding machine is featured by high capacity, easy operation, and precise control.

Reinforcing Concrete Mesh Welding Machine Technology

Full-automatic Reinforcing Concrete Mesh Welding Machine welds the warp wires (in coil) and weft wires (pre-cut) to be mesh in the principle of multi-electrodes resistance welding.

The material can be low carbon round or ribbed steel wire or galvanized wire.

The finish products are mesh in panel or in roll.

Production processes

Warp wire in coils - Auto decoiling - Auto straightening - Buffer -Straightening - CNC feeding -Auto mesh welding - CNC cutting to mesh panel - Auto mesh falling

Pre-straighten and cut weft wire-Put into wire hopper in bundles-Auto positioning and feeding

Reinforcing Steel Fence Mesh Welding Machine Details

1. Wire Decoiler: It can bear about one ton materials.There is no need for frequent feeding.

2. Warp wire buffer storage frame: After straightening, the warp wire enters the buffer storage rack, and then enters the main welding machine for welding. The warp wire is wound in the form of ring on the buffer storage frame, and then plays a buffer role in the feeding process, reducing the dynamic impact on the main welding machine and the drawing servo motor, ensuring the normal and uniform feeding of the warp wire and the normal operation of the machine at the fastest speed.

3. Automatic Mesh falling device: After being cutting,the panels will fall onto the platform.When the mesh panel falls to a certain number, it will move forward as a whole, saving labor and convenient for workers to pack.
