358 Anti Climb Fence Panel Machine
High Security Fence 358 Anti Climb Fence Panel Welding Machine In Malaysia
Fence Panel Welding Machine Description
This machine is also called 358 fence mesh machine and anti-climb fence mesh welding machine. This machine is popular with it's small opening (76.2*12.7mm), which can't go through the foot,even the finger. So the finished mesh have good effect on doing the security fence.The machine is also used to make fence mesh,road mesh,reinforcing mesh,shelf,explosion-proof wall etc.
Fence Panel Welding Machine Advantage
1. Controlled by computer.The welding current and welding time in each welding transformer can be individually adjusted.The machine operator interface with color touch screen and control buttons,easy to operate.
2. Host framework structure,stable performance,the welding pressure is continuously adjustable,solid and perfect welding spot.
3. Fast welding speed,high precision,high firmness,uniform mesh spacing,neat edges,no trimming.
Fence Panel Welding Machine Parameter
| Model | TK-HWJ3000 | Welding torch | 41pcs |
| Wire diameter | 2.5-6mm | Welding speed | 80-120 times/min |
| Liner wire pitch | 76.2-300mm | Welding transformer | 150kva*10pcs |
| Cross wire pitch | Min.12.7mm | Machine weight | 4.2T |
| Welding width | Max.3m | Machine size | 4.9*3.9*1.4m |
| Mesh length | Max.4m | Container | 1*40GP |

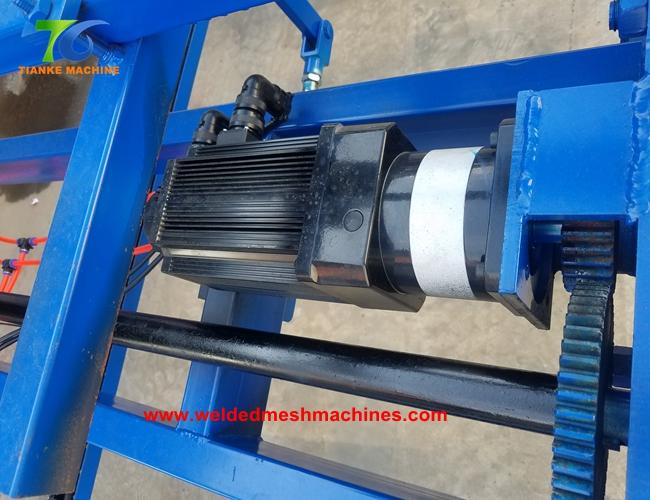

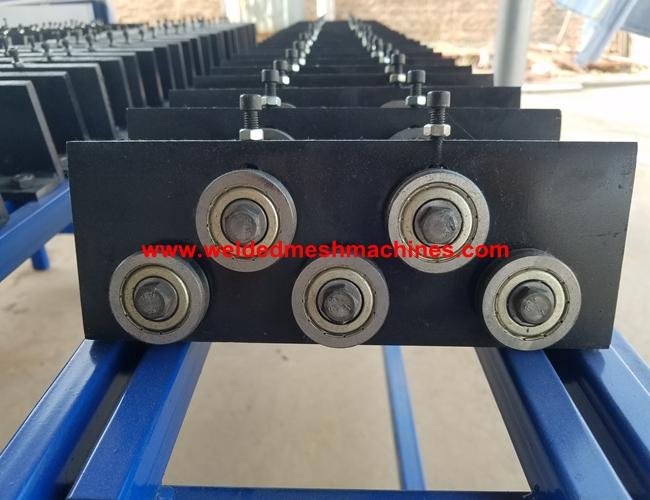

Fence Panel Welding Machine Mesh Pulling Device
