3mm Rod Straightening And Cutting Machine 380V 50Hz Metal Wire Cutting Machine
3-6mm Wire Rod Coils Cutter In Uganda Wire Straightening And Cutting Machine
Wire Straightening And Cutting Machine Description
This wire straightening and cutting machine can straighten wire diameter between 3mm to 6mm.The material can be wire rods, galvanized wire,black wire,ribbed wire,etc.This machine has two sets of feeding wheels.which are at both ends of the straightening shaft.One set is used to keep the incoming line stable, and the other set is used to feed forward at a uniform speed.So the machine can work in a high speed.The whole structure of this machine is relatively wide, and the machine is still stable when running at a faster speed.
Wire Straightening And Cutting Machine Application
1. The mould of the machine is made of high quality alloy, with good quality, wear resistance and long service life.
2. The machine is equipped with two sets of wire feeding wheels.The machine speed is faster.
3. The straightening motor is 2.2kw,and the cutting motor is 0.75kw.So the machine has low energy consumption and low production cost.
4. The cutting length of the machine is adjustable.
Packaging and shipping
Machines would be packed up well with wooden case,which can guarantee no damage during the transportation.The shipping method depends on our customer requirements.We can do air door delivery by DHL/FedEx,or to the airport only,as well as shipping to the port or the door step by sea.Just tell us your demand and we would meet all your requirements.
How to deal with the problem
The warranty of our machines would be 1 year,and they have been modular manufactured.Just show us a small video if there is something wrong with it after buying,and we would be able to judge which part is not working,and then would send you the new parts and lively instruct you to replace clearly by video or pictures.
Wire Straightening And Cutting Machine Parameter
| Wire Diameter | 3.0-6.0 mm |
| Input Voltage | 380V 50Hz ( Customized) |
| Steel wire surface | Black wire,galvanized wire,copper wire,stainless steel wire,etc |
| Cutting Length | 2000mm ( Customized) |
| Tolerance of cut-to-length | ±1mm |
| Linearity of straightening | ≤2mm/m |
| Cutting Method | Mechanical cutting |
| Straightening Speed | 40 m / min |
| Weight | 200 kg |
| Packaging | Wooden box |
Wire Straightening And Cutting Machine
Straightening Moulds: The straightening moulds is made of high quality alloy.It is durable and wear resistance.

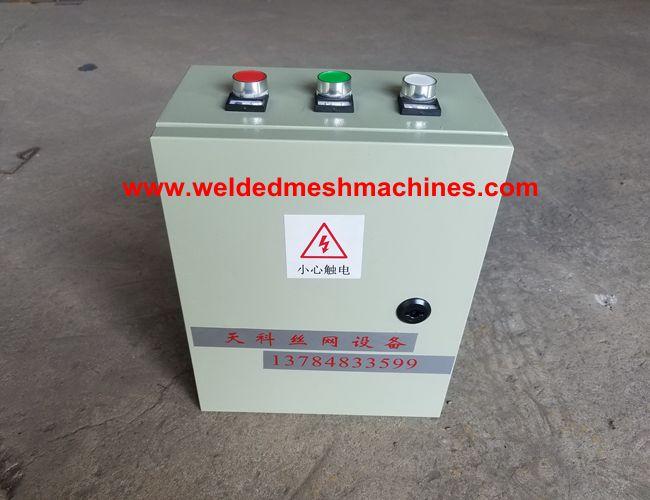

Control system: The control box has counter to calculate the wire number.If there is problem of the machine,it will stop; automatically.

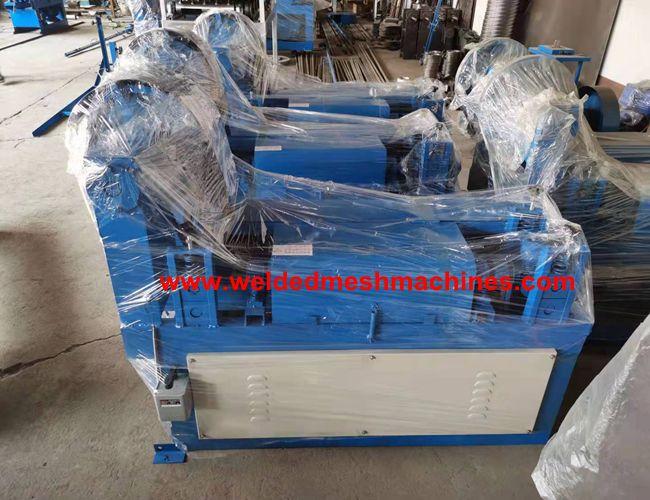

Package of the machine
Machine with security cover
