304 Stainless Steel Manual Type Tray Sealing Machine DQ-2 with Adjustable Temperature Circle-cut Design for Labor-saving Fast Food Packaging

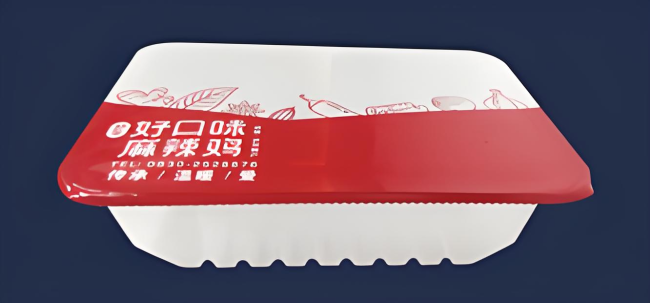

The sealing packaging machine without filling with fresh-keeping gas is suitable for the packaging of instant food or various types of frozen foods in stores, supermarkets, and other places. The product is easy to operate, accessible to people of all ages; the main body structure is made of 304 stainless steel material, and the mold is treated with anodizing at 6061, ensuring safety and hygiene; it has a desktop design, occupying a small area; it can be customized with a dedicated LOGO color film for beautiful sealing and brand promotion. According to different production requirements, Xian Yang Chic Intelligent Equipment Co., Ltd. can customize sealing packaging equipment suitable for different foods and high cost-effectiveness for users.
| DQ-2 | |
| Style |

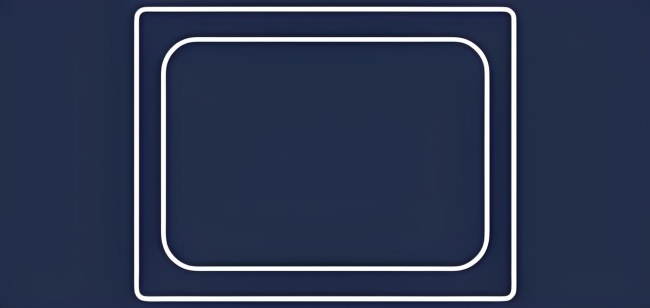

Circle- cut |
| Equipment model | DQ-2 |
| Maximum width of rolled film (mm) | 180 |
| Maximum diameter of rolled film (mm) | 180 |
| Packaging speed (times/min) | 7~8 |
| Capacity (box/hour) 1 out 1 | ≈480 |
| Power supply (v/hz) | 220/50 |
| Total power (kw) | 0.6 |
| Equipment weight (kg) | 13.5 |
| Equipment size L * W * H (mm) | 530*310*240 |
| Gross weight of packaging (kg) | 19 |
| Packaging outer box size L * W * H (mm) |
610*310*310 |
| The maximum size of the tray (mm) Output 1 | 250*150*130(*1) |
| Shell | 304 stainless steel |
| Mold section | 6061 aluminum (anodized) |
| Hot plate | Teflon |

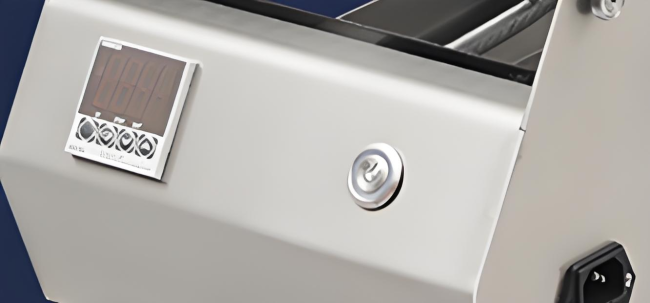

| Temperature Controller | Omron/Taisong |
| power switch | Meiyu |

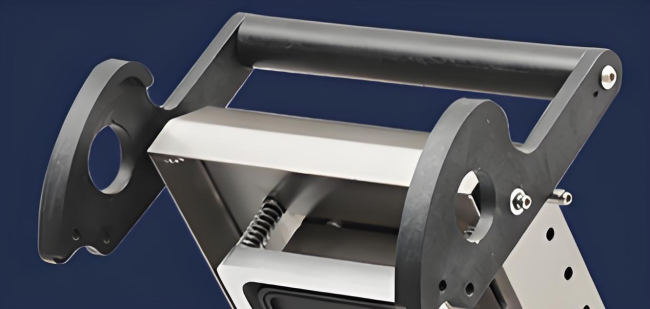

| Labor-saving handle | Reinforced Nylon |
| Solid state relay | Clion |
