Steering Clutch Seal Ring CA4M3948 4M-3948 4M3948 C.A.T Sealing Parts
Steering Clutch Seal Ring CA4M3948 4M-3948 4M3948 C.A.T Sealing Parts
| Product Name | Clutch Seal Ring |
| Part Number | CA4M3948, 4M-3948, 4M3948 |
| Model Number |
C.A.T PIPELAYER 572G; TRACK LOADER 977K, 977L, 983, 983B; TRACK-TYPE TRACTOR D6C, D6D, D6E, D6E SR, D6F SR, D6G, D6G SR, D6G2 LGP, D6G2 XL, D7F, D7G, D7G2 |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic Oil Seal, Hydraulic Seal Ring |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |
| Size | 132.68*139.7*4.6 |

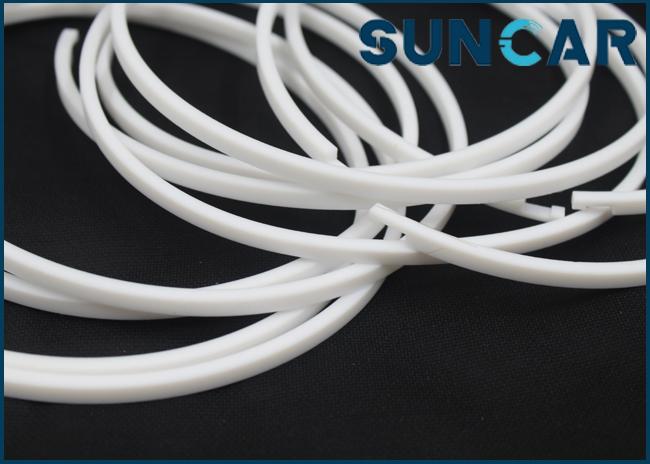

Product Information:
Describe:
* Back-up rings prevent seal pinching in high pressure appliC.A.Tions and are also used to protect the life of the overall sealing system in the event of sudden pressure changes.
Characteristic:
(1) This Back-up Rings are engineered to combine the properties of elastomeric seals and mating components to go a long way in ensuring the life and performance of sealing systems in high pressure appliC.A.Tions.
(2) Back-up ring dimensions are tightly adhered to tight tolerances to ensure they properly bridge the seal groove and mating surfaces. When selecting materials, decisions will be made based on their pressure resistance and wear resistance.

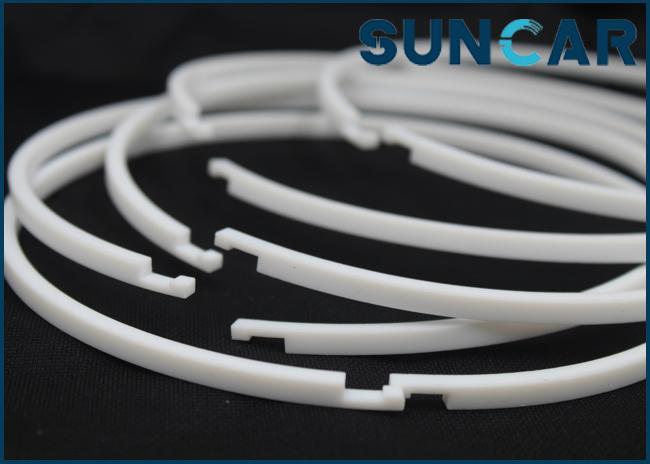

(3) The support ring can be a closed ring or a split ring. Split rings are used to ensure ease of assembly.
AppliC.A.Tion:
* Back-up rings are used in high-pressure static and dynamic sealing appliC.A.Tions such as hydraulic pumps, valves and engine systems
Material Description:
PTFE provides excellent performance in air, engine oil, diesel and coolant appliC.A.Tions, but is prone to installation damage and debris. Suitable for ultra-high temperature appliC.A.Tions.

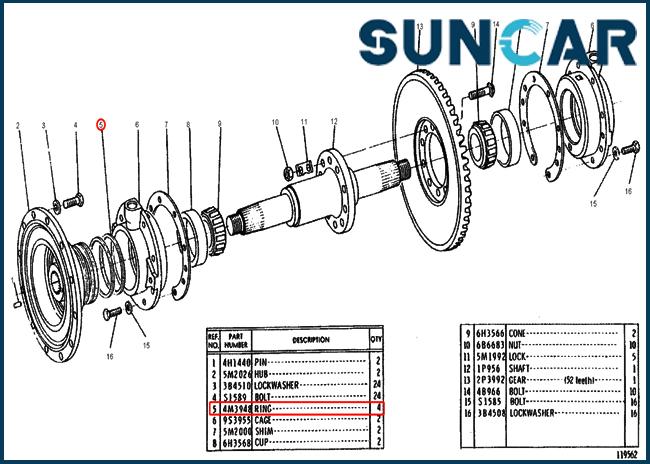

Related Parts:
| Pos. | Part No | Parts Name | Qty |
| 1 | 4H-1440 | PIN | [2] |
| 2 | 5M-2026 | HUB | [2] |
| 3 | 3B-4510 | LOCKWASHER | [24] |
| 4 | 0S-1589 | BOLT | [24] |
| 5 | 4M-3948 | RING | [4] |
| 6 | 9S-3955 | CAGE | [2] |
| 7 | 5M-2000 | SHIM | [2] |
| 8 | 6H-3568 | CUP | [2] |
| 9 | 6H-3566 | CONE | [2] |
| 10 | 6B-6683 | NUT | [10] |
| 11 | 5M-1992 | LOCK | [5] |
| 12 | 1P-0956 | SHAFT | [1] |
| 13 | 2P-3992 | GEAR (52 teeth) | [1] |
| 14 | 4B-0966 | BOLT | [10] |
| 15 | 0S-1585 | BOLT | [16] |
| 16 | 3B-4508 | LOCKWASHER | [16] |
