FA5300022 Arm Cylinder Seal Kit Fit For C.A.T E300B E300E Excavator Service Kits
FA5300022 Arm Cylinder Seal Kit Fit For C.A.T E300B E300E Excavator Service Kits
| Product Name | Arm Cylinder Seal Kit |
| Part Number | FA5300022 |
| Model Number | C.A.T E300B E300E |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Excavator Seal Kit, Hydraulic Service Kits |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries |
Building material shops, machinery repair shops, retail, construction work... |
| Feature | High sealing performance, wear resistance, heat resistance |
| AppliC.A.Tion | Arm |
Product Description:
- Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
- There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
- Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
- Arm cylinder is the top one, and it's usually be called as top cylinder;
- Bucket cylinder is the one that connects and controls the bucket.
Product Show:

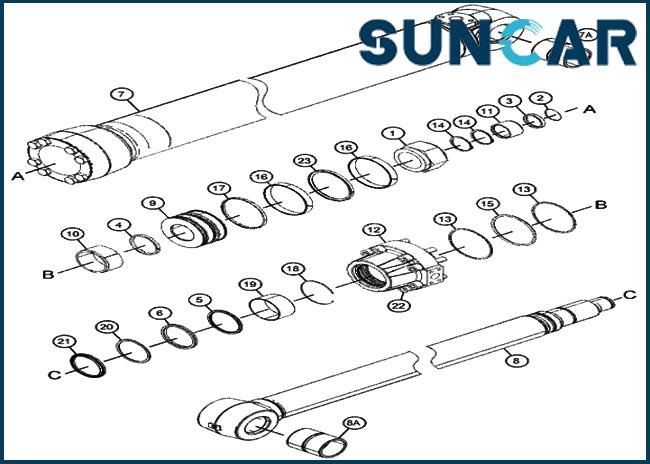

| Pos. | Part No | Qty | Parts Name |
| 1 | 7Y-4956 M | [1] | LOCKNUT (M90X2-THD) |
| 2 | 103-8345 | [1] | RING-RETAINING |
| 3 | 107-6579 | [1] | RING |
| 4 | 231-6843 J | [1] | RING-SEAL |
| 5 | 324-9484 J | [1] | SEAL-BUFFER |
| 6 | 324-9486 J | [1] | SEAL-U-CUP |
| 7 | 357-4704 | [1] | CYLINDER AS |
| 7A. | 290-9183 | [1] | BUSHING |
| 8 | 357-4713 | [1] | ROD AS |
| 8A. | 290-9183 | [1] | BUSHING |
| 9 | 358-8525 | [1] | PISTON |
| 10 | 359-7188 | [1] | STOP |
| 11 | 359-7192 | [1] | STOP |
| 12 | 375-1723 | [1] | HEAD |
| 13 | 375-1732 J | [2] | RING-BACKUP |
| 14 | 095-0930 | [2] | RING-RETAINING (EXTERNAL) |
| 15 | 140-0240 J | [1] | SEAL-O-RING |
| 16 | 191-5604 J | [2] | RING |
| 17 | 191-5605 J | [1] | RING |
| 18 | 191-5643 | [1] | RING-RETAINING |
| 19 | 191-5644 | [1] | BUSHING |
| 20 | 191-5647 J | [1] | RING-BACKUP |
| 21 | 209-5877 J | [1] | SEAL-LIP TYPE |
| 22 | 7Y-5239 M | [8] | BOLT-SOCKET HEAD (M24X3X100-MM) |
| 23 | 506-2322 J | [1] | SEAL AS |
| AVAILABLE REPAIR KIT(S): | |||
| 519-7968 J | [1] | KIT-SEAL (STICK CYLINDER) | |
| J | KIT MARKED J SERVICES PART(S) MARKED J | ||
| M | METRIC PART | ||
| R | REMANUFACTURED PART MAY BE AVAILABLE |
Our Advantage:
- Price:
Our price is not the lowest one, but compared with the same quality level product, ours is the best one.
- Stock:
We have many seal kits in stock. All of the o-ring, oil seal and hydraulic cylinder seal kit we have enough stocks. There is no need to pay additional mold cost.
- Service and Professional Team:
We have the trade department, engineer department, production department and after-sales service department. If the order goods have problem, we will solve it within 24 hours, and we will replace the seal kits for you without any cost.
- Packing:
Not only just large quantity bag packing, we also can make the small size bag packing.
- Shipping:
Quickly delivery, with several delivery ways, such as DHL/ FEDEX/ UPS/ TNT express, air and ocean shipping way.
- Payment Way:
T/T, Paypal, Western Union,Transfer.
- Customized Service:
Drawings or samples, it is enough. Also, we can give the professional advice based on your requirement.
- Wholesale:
We have many sizes and seals in stock, and can ship them within short time, and we also wish to develop the agent in each country.
