1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe
Price:
Negotiation
MOQ:
Acceptable Trial Order
Delivery Time:
3-5 Days After Payment Received(Public Holiday Excluded)
Brand:
Boom Cylinder Seal Kit
Product Description
1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe
| Product Name | 1542923C2 Bucket Cylinder Seal Kit for Case 580SM 590SM 580SK 580SL 590SM+ 590 580SM+ 590SL 590L Backhoe |
|---|---|
| Part No. | 1542923C2 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Case Excavator |
| Condition | New |
| Suitable Model |
(580SK) - CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE (3/96-12/96)
|
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.

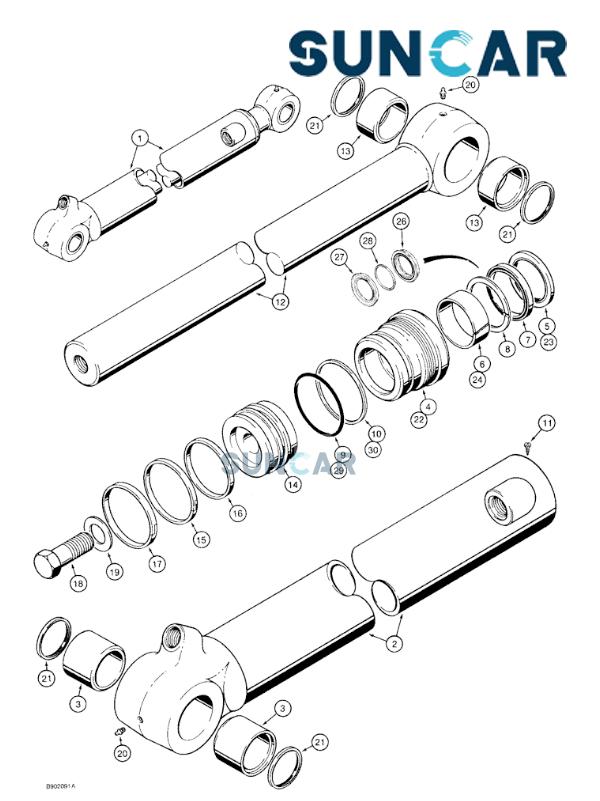

Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1986901C1 | [1] | CYLINDER | IH ASSEMBLY, 3-1/2, 89, ID x 34-5/16 inch, 872 mm, stroke, bucket, with grease seals (Ref. 21) at rod and tube eyes, no longer available, order 110290A1 cylinder on Figure 8-139C, Includes: Ref. 2 through 30, P/N G109894 and P/N NSS above Ref. 22 Superseded by part number: 235916A1 |
| 1 | 235916A1R | [1] | REMAN-HYD CYLINDER | BRR Reman New PN 1986901C1 |
| 1 | 235916A1C | [1] | CORE-HYD CYLINDER | BRR Return Number |
| 2 | 1340992C1 | [1] | TUBE | IH ASSEMBLY cylinder, order 110292A1 tube on Figure 8-139C, Includes: Ref. 3 Superseded by part number: 1542656C1 |
| 3 | D141555 | [2] | BUSHING,50.19mm ID x 60mm OD x 40mm L | CAS Tube |
| . . | G109894 | [1] | GLAND | CAS ASSEMBLY cylinder, has smooth outer lip, no longer available, order Ref. 22, 1542922C1 gland and 1542923C2 seal kit, Includes: Ref. 4 through 10 Superseded by part number: 1542922C2, 1542923C2 |
| 4 | NSS | [1] | NOT SOLD SEPARAT | CON GLAND cylinder |
| 5 | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk | CAS WIPER piston rod |
| 6 | G109908 | [1] | BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L | CAS center |
| 7 | G109228 | [1] | SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk | CAS U-cup, with O-ring, piston rod, wide |
| 8 | G107998 | [1] | SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk | CAS buffer, grooved, piston rod, narrow |
| 9 | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro | CAS Gland -235, 70 Duro, 3.109" ID x .139" Thk Superseded by part number: 87421144 |
| 10 | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk | CAS RING backup, gland O-ring |
| 11 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" | CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312 |
| 12 | 1986903C1 | [1] | PISTON ROD | IH ROD ASSEMBLY piston, 2-1/2 inch, 64 mm, diameter, cylinder, order 1542658C1 rod on Figure 8-139C, Includes: Ref. 13 Superseded by part number: 196164A1 |
| 13 | D140029 | [2] | BUSHING,50.22mm ID x 60mm OD x 25.5mm L | CAS piston rod |
| 14 | 1986906C1 | [1] | PISTON | IH cylinder |
| 15 | G102286 | [1] | SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk | CAS - piston |
| 16 | G100710 | [1] | RING,Square, 5.28mm Thk x 75.31mm ID | CAS backup, piston seal |
| 17 | G100711 | [1] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk | CAS Piston |
| 18 | 28-2052 | [1] | BOLT,Hex, 1-1/4" - 12 x 3-1/4", Gr 8 | CAS - hex, 1-1/4 NF x 3-1/4 inch, grade 8 |
| 19 | G104989 | [1] | WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk | CAS flat, 1-1/4 inch, hardened, special |
| 20 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF | CAS FITTING grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710 |
| 21 | D123655 | [4] | SEAL,50mm ID x 60.15mm OD x 4.06mm Thk | CAS tube and rod eyes |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON GLAND ASSEMBLY cylinder, Includes: Ref. 22 through 30 |
| 22 | 1542922C1 | [1] | GLAND | IH cylinder, has identification groove on outer lip Superseded by part number: 1542922C2 |
| 23 | D95146 | [1] | WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk | CAS WIPER piston rod |
| 24 | G109908 | [1] | BUSHING,63.5mm ID x 66.57mm OD x 25.15mm L | CAS center |
| 25 | 1542879C1 | [1] | SEAL KIT,63.5mm Rod | IH KIT seal, NSS, not shown, Includes: Ref. 26, 27 and 28 |
| 26 | 1542931C1 | [1] | SEAL | BHB rod, NSS, order 1542923C2 kit below |
| 27 | 1542930C1 | [1] | SEAL | BHB buffer, NSS, order 1542923C2 kit below |
| 28 | 1543352C1 | [1] | RING back up, NSS, no longer included in kit | |
| 29 | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro | CAS Gland -235, 70 Duro, 3.109" ID x .139" Thk Superseded by part number: 87421144 |
| 30 | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk | CAS RING backup, gland O-ring |
| . . | G110046 | [1] | KIT | CAS seal, Includes: Ref. 5 - 10 and 15 - 17, no longer available, order 1542923C2 kit below Superseded by part number: 1542923C2 |
| . . | 1542923C2 | [1] | SEAL KIT,63.5mm Rod x 88.9mm Bore | IH KIT seal, Includes: Ref. 15 - 17, 23 - 30 and an instruction sheet |

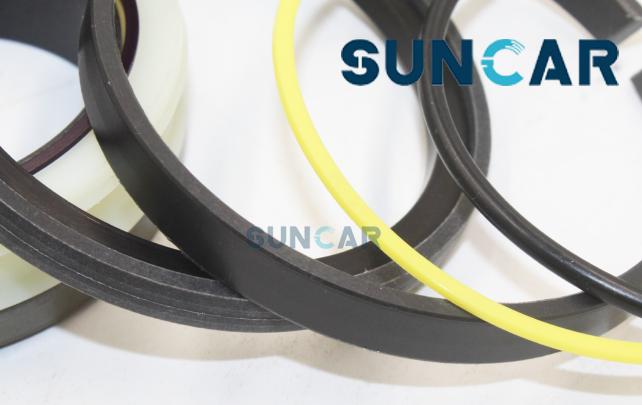

PRODUCT SHOW:
FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.
2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)
3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
