234844A1 Good Quality Dipper Seal Kit for CASE Loader 570LXT 580L 580M
Price:
Negotiation
MOQ:
Acceptable Trial Order
Delivery Time:
3-5 Days After Payment Received(Public Holiday Excluded)
Brand:
Boom Cylinder Seal Kit
Product Description
234844A1 Good Quality Dipper Seal Kit for CASE Loader 570LXT 580L 580M
| Product Name | 234844A1 Good Quality Dipper Seal Kit for CASE Loader 570LXT 580L 580M |
|---|---|
| Part No. | 234844A1 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Case Excavator |
| Condition | New |
| Suitable Model |
(580L) - LOADER BACKHOE (NORTH AMERICA) (2/97-12/97)
|
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.
Related Parts:

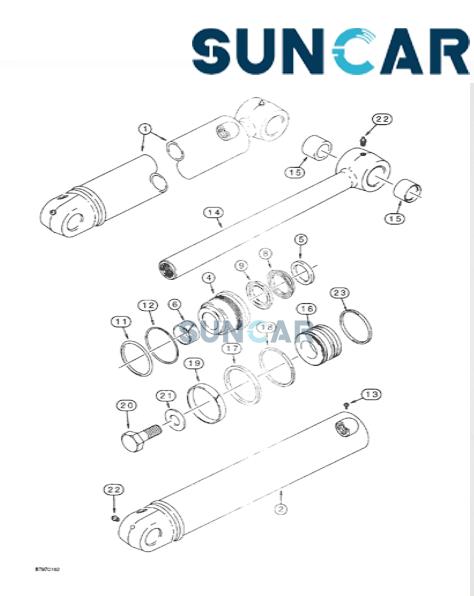

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 233114A1 | [1] | CYLINDER ASSY. | CAS CYLINDER ASSEMBLY 108, 4-1/4 ID x 686 mm, 27 inch stroke, dipper, Includes: Ref. 2 Superseded by part number: 233114A2 |
| 1 | 233114A2R | [1] | REMAN-HYD CYLINDER | BRR Reman For New P/N 233114A1 |
| 1 | 233114A2C | [1] | CORE-HYD CYLINDER | BRR Return Number |
| 2 | 233000A1 | [1] | BARREL | CAS TUBE cylinder Superseded by part number: 297952A1 |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON GLAND ASSEMBLY cylinder, Includes: Ref. 4-6 |
| 4 | 234141A1 | [1] | CYLINDER END CAP | CAS GLAND cylinder Superseded by part number: 234141A2 |
| 5 | D95145 | [1] | WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W | CAS WIPER piston rod |
| 6 | G102426 | [1] | BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L | CAS - Center |
| . . | 1542877C1 | [1] | SEAL KIT,57.2mm Rod | IH KIT - seal, NSS, order 234844A1 kit below, Includes: Ref. 8-9 |
| 8 | 1542929C1 | [1] | SEAL,2.778mm OD | BHB rod, NSS, order 234844A1 kit below |
| 9 | 1542928C1 | [1] | SEAL,2.275" ID | BHB buffer, NSS, order 234844A1 kit below |
| 11 | 238-5241 | [1] | O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro | CAS Gland -241, 70 Duro, 3.859" ID x .139" Thk Superseded by part number: 87016953 |
| 12 | G32176 | [1] | BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk | CAS Gland O-Ring |
| 13 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" | CAS SCREW - self tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312 |
| 14 | 175778A1 | [1] | PISTON ROD | CAS ROD ASSEMBLY piston, 2-1/4 inch, 57 mm diameter, cylinder, Includes: Ref. 15 |
| 15 | D149079 | [2] | BUSHING,50.19mm ID x 60mm OD x 34mm L | CAS 50 x 34 mm long |
| 16 | 233110A1 | [1] | PISTON | CAS cylinder Superseded by part number: 233110A2 |
| 17 | G110531 | [1] | SEALING RING,Locking, 109.32mm ID x 104.6mm OD x 6.96mm Thk | CAS piston |
| 18 | G110529 | [1] | RING | CAS backup, piston seal |
| 19 | G110530 | [1] | RING,108mm OD, Ext | CAS wear, piston |
| 20 | 28-2256 | [1] | BOLT,Hex, 1-3/8" - 12 x 3-1/2", Gr 8 | CAS hex, 1-3/8 NF x 3-1/2 inch, grade 8 |
| 21 | G32559 | [1] | WASHER | CAS flat, special, 1-3/8 inch |
| 22 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF | CAS FITTING grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710 |
| 23 | 233104A1 | [1] | RING,103.36mm ID, Ext | CAS piston, cast iron |
| . . | 234844A1 | [1] | SEAL KIT | CAS KIT seal, Includes: Ref. 5, 6, 8, 9, 11, 12, 17, 18, 19, and P/N 1542877C1, also a seal and wiper not used in this application, and an instruction sheet |

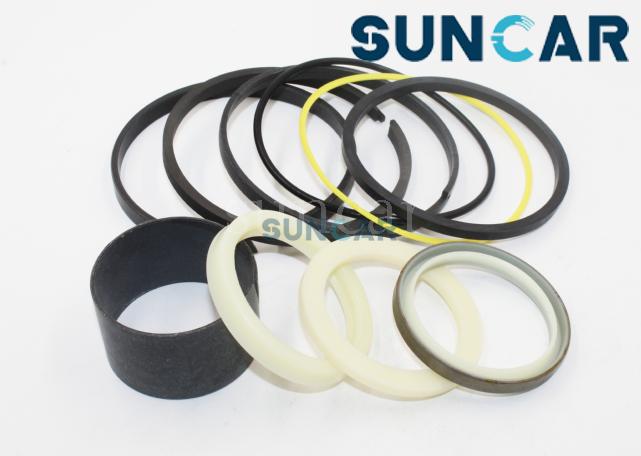

PRODUCT SHOW:
FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.
2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)
3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
