1542919C2 Boom Cylinder Seal Kit for CASE Backhoe Loader 580SK 580SL 580SM
Price:
Negotiation
MOQ:
Acceptable Trial Order
Delivery Time:
3-5 Days After Payment Received(Public Holiday Excluded)
Brand:
Boom Cylinder Seal Kit
Product Description
1542919C2 Boom Cylinder Seal Kit for CASE Backhoe Loader 580SK 580SL 580SM
| Product Name | 1542919C2 Boom Cylinder Seal Kit for CASE Backhoe Loader 580SK 580SL 580SM |
|---|---|
| Part No. | 1542919C2 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Applicable Industries | Machinery repair shops, construction works, energy & mining |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | Case Excavator |
| Condition | New |
| Suitable Model |
(580SK) - CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE (3/96-12/96)
|
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
- Positive feedback is very important to us.

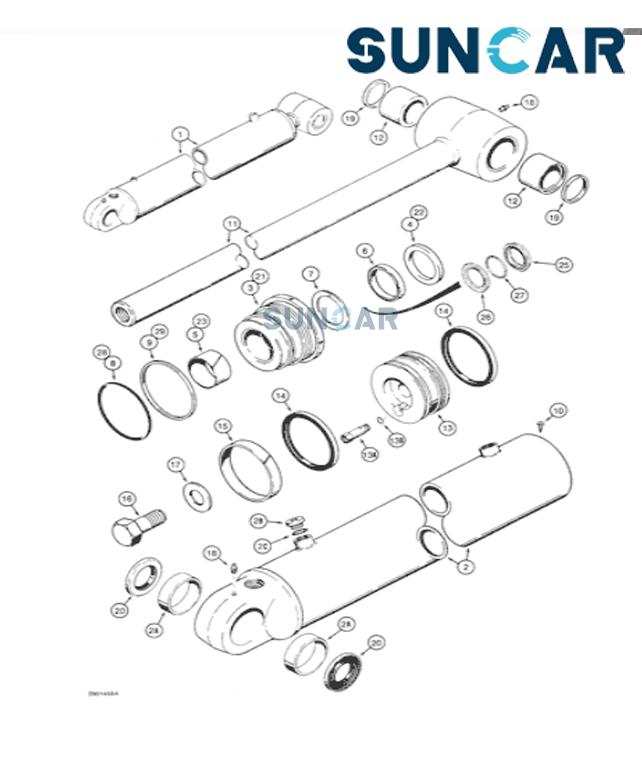

Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 1346217C1 | [1] | CYLINDER ASSY. | IH CYLINDER ASSEMBLY, 5, 127, ID x 33-3/16 inch, 843 mm, stroke, boom, with grease seals (Ref. 19 and 20) at rod and tube eyes, no longer available, order 1543391C1 cylinder on Figure 8-131C, Includes: Ref. 2 through 29, P/N G110575 and P/N NSS above Ref. 21 Superseded by part number: 1543391C1 |
| 2 | 1346015C1 | [1] | TUBE,1069 mm Length | IH cylinder, Includes: Ref. 2A, 2B and 2 C Superseded by part number: 132519A1 |
| 2A. | D144421 | [2] | BUSHING | CAS tube |
| 2B. | 86625138 | [1] | PLUG,7/18" - 14 | FAR Includes Ref. 2C Hex Soc, 7/8"-14 ORB |
| 2C. | 237-6010 | [1] | O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro | CAS 10-1, 90 Duro, .755" ID x .097" Thk Superseded by part number: 72186125, 167269 |
| . . | G110575 | [1] | GLAND | CAS ASSEMBLY cylinder, has smooth outer lip, no longer available, order Ref. 21, 1542918C1 gland and 1542919C2 seal kit, Includes: Ref. 3 through 9 Superseded by part number: 1542918C3 |
| 3 | NSS | [1] | NOT SOLD SEPARAT | CON GLAND cylinder |
| 4 | G108712 | [1] | WIPER | CAS piston rod |
| 5 | G102426 | [1] | BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L | CAS - Center |
| 6 | G107924 | [1] | SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk | CAS U-cup, piston rod, wide |
| 7 | G109086 | [1] | RING | CAS SEAL buffer, grooved, piston rod, narrow |
| 8 | 238-5247 | [1] | O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro | CAS Gland -247, 70 Duro, 4.609" ID x .139" Thk Superseded by part number: 14466580 |
| 9 | G107970 | [1] | BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk | CAS Gland O-Ring |
| 10 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" | CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 " Superseded by part number: 86642312 |
| 11 | 1346224C1 | [1] | PISTON ROD | IH ROD piston, 2-1/4 inch, 57 mm, diameter, Includes: Ref. 12 Superseded by part number: 1542638C1 |
| 12 | D141555 | [2] | BUSHING,50.19mm ID x 60mm OD x 40mm L | CAS Rod |
| 13 | 1346018C1 | [1] | JACK PISTON | IH PISTON cylinder, used with 1958028C1 relief valve cartridge Superseded by part number: 1346018C2 |
| 13A. | 1958028C1 | [1] | VALVE | IH ASSEMBLY relief, cartridge, internal component parts not serviced separately, Includes: Ref. 13B |
| 14 | G110269 | [2] | SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk | CAS piston |
| 15 | G102090 | [1] | RING,127mm OD, Ext | CAS wear, piston |
| 16 | 28-2048 | [1] | BOLT,Hex, 1-1/4" - 12 x 3", Gr 8 | CAS |
| 17 | G104989 | [1] | WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk | CAS flat, 1-1/4 inch, hardened |
| 18 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF | CAS FITTING grease, straight, 1/8 PT x 21/32 inch Superseded by part number: 80710 |
| 19 | D123655 | [2] | SEAL,50mm ID x 60.15mm OD x 4.06mm Thk | CAS rod end |
| 20 | D127974 | [2] | SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk | CAS closed end |
| . . | NSS | [1] | NOT SOLD SEPARAT | CON GLAND ASSEMBLYcylinder, Includes: Ref. 21 through 29 |
| 21 | 1542918C1 | [1] | CYLINDER END CAP | IH GLAND cylinder, has identification groove on outer lip Superseded by part number: 1542918C3 |
| 22 | D95145 | [1] | WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W | CAS WIPER piston rod |
| 23 | G102426 | [1] | BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L | CAS - Center |
| 24 | 1542877C1 | [1] | SEAL KIT,57.2mm Rod | IH KIT seal, NSS, not shown, Includes: Ref. 25, 26 and 27 |
| 25 | 1542929C1 | [1] | SEAL,2.778mm OD | BHB rod, NSS, order 1542919C2 kit below |
| 26 | 1542928C1 | [1] | SEAL,2.275" ID | BHB buffer, NSS, order 1542919C2 kit below |
| 27 | 1543351C1 | [1] | O-RING | BHB RING back up, NSS, no longer included in kit |
| 28 | 238-5247 | [1] | O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro | CAS Gland -247, 70 Duro, 4.609" ID x .139" Thk Superseded by part number: 14466580 |
| 29 | G107970 | [1] | BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk | CAS Gland O-Ring |
| . . | G110583 | [1] | KIT | CAS seal, Includes: Ref. 4 - 9, 14 and 15, no longer available, order 1542919C2 kit below Superseded by part number: 1542919C4 |
| . . | 1542919C2 | [1] | SEAL KIT | IH KIT seal, Includes: Ref. 4, 14, 15, 22 - 29 and an instruction sheet Superseded by part number: 1542919C4 |
| 13B. | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS 6-1, 90 Duro, .468" ID x .078" Thk, Relief valve cartridge, external Superseded by part number: 9617873 |

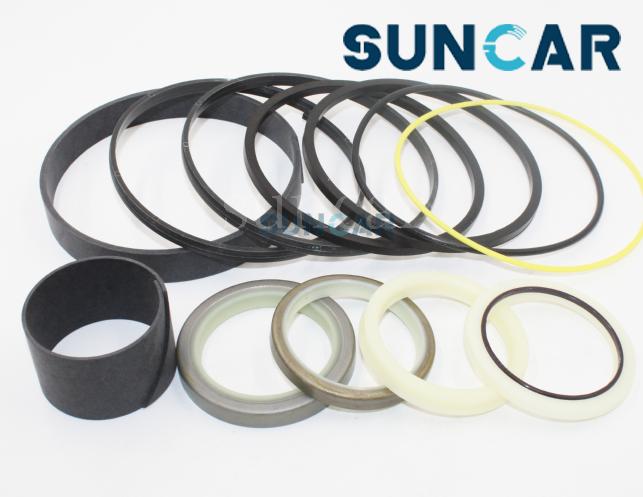

PRODUCT SHOW:
FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.
2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)
3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.
4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.
5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements
