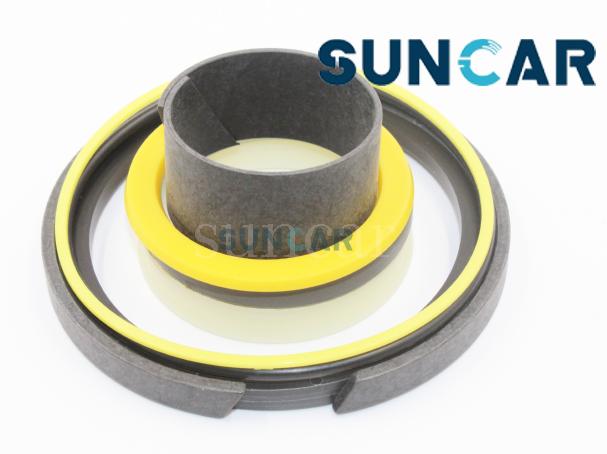

1543269C1 Hydraulic Cylinder Seal Kit for CASE 580M 580SM 590SM 35C 680L 921 1085C 921 921B 921C 570LXT 580L 580M

Name: 1543269C1 Hydraulic Cylinder Seal Kit for CASE 580M 580SM 590SM 35C 680L 921 1085C 921 921B 921C 570LXT 580L 580M
Brand: Guangzhou Suncar Seals Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: Acceptable Trial Order

Delivery Time: 3-5 Days After Payment Received(Public Holiday Excluded)

Brand: CASE Steering Cylinder Seal Kit

Product Description

1543269C1 Hydraulic Cylinder Seal Kit for CASE 580M 580SM 590SM 35C 680L 921 1085C 921 921B 921C 570LXT 580L 580M

Product Name	1543269C1 Hydraulic Cylinder Seal Kit for CASE 580M 580SM 590SM 35C 680L 921 1085C 921 921B 921C 570LXT 580L 580M
Part No.	1543269C1
Material	PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature	Resistance to high pressure, oil, weather, abrasion, solvent
Applicable Industries	Machinery repair shops, construction works, energy & mining
Color	Black, White or other
Size	Standard Size
MOQ	We Accept Trial Order
Packing	PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time	3-5 Days After Payment Received(Public Holiday Excluded)
Payment	Western Union, L/C, T/T, etc.
Port	HUAGNPU,China (Mainland)
Express	Fedex,TNT,UPS,DHL
Customized	OEM & ODM are welcomed
AppliC.A.Tion	C.A.Terpillar Articulated Truck & Ejector Truck
Condition	New
Suitable Model	(921) - CASE WHEEL LOADER (1/92-12/95) (5-016) - STEERING CYLINDER » 1543269C1 (921B) - CASE WHEEL LOADER (NORTH AMERICA) (1/97-12/98) (5-022) - STEERING CYLINDER » 1543269C1 (921C) - CASE WHEEL LOADER (S/N JEE0155000 & BEFORE) (1/99-12/02) (05-09) - CYLINDER ASSY STEERING » 1543269C1 (921C) - CASE WHEEL LOADER (S/N JEE0155001 & AFTER) (1/99-2/07) (05-07) - CYLINDER ASSY - STEERING (Jun 4 2010 9:02AM) » 1543269C1 (580L) - LOADER BACKHOE (NORTH AMERICA) (2/97-12/97) (8-128) - BACKHOE STABILIZER CYLINDERS, 3/4 INCH CLOSED END PORT » 1543269C1 (8-129A) - BACKHOE STABILIZER CYLINDER, 7/8 INCH CLOSED END PORT » 1543269C1 (580L) - SERIES 2 LOADER BACKHOE - ASN JJG0239360 (2/97-12/00) (8-144) - BACKHOE STABILIZER CYLINDER » 1543269C1 (580M) - LOADER BACKHOE (NA) - ASN JJG0285001 (9/00-12/04) (08-54) - CYLINDER ASSY - BACKHOE STABILIZER » 1543269C1 (580M) - SERIES 2 LOADER BACKHOE (TIER 2) (NA) - ASN N4C303000 (2/04-12/08) (08-61) - CYLINDER ASSY - BACKHOE STABILIZER » 1543269C1 (580M) - SERIES 3 LOADER BACKHOE TIER 3 (NA) - ASN N8C500000 (2/08-12/10) (08-61) - CYLINDER ASSY - BACKHOE STABILIZER » 1543269C1 (570LXT) - LOADER LANDSCAPER (1/94-12/97) (8-128) - BACKHOE STABILIZER CYLINDERS, 3/4 INCH CLOSED END PORT » 1543269C1 (8-129A) - BACKHOE STABILIZER CYLINDER, 7/8 INCH CLOSED END PORT » 1543269C1 (570LXT) - SERIES-2 LOADER LANDSCAPER - ASN JJG0225755 (1/98-12/01) (8-144) - BACKHOE STABILIZER CYLINDER » 1543269C1

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

Related Parts:

Pos.	Part No	Qty	Parts name	Comments
. .	1346169C4	[2]	CYLINDER ASSY.,Double Acting, 50.8mm Rod, 516.6mm Stroke	IH stroke steering, 4 (102) ID x 20-3/8 inch (517 mm), see Figure 5-10, Includes: Ref. 1 - 28
1	1346168C3	[1]	PISTON ROD	IH ASSY., 2 inch (51 mm) diameter, Includes: Ref. 2, 3 Superseded by part number: 137826A1
2	1346233C1	[1]	SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 76.2mm W	IH self-aligning
3	100-21315	[2]	SNAP RING,3.156", Int, #315	CAS Bushing Superseded by part number: 9670291
4	219-1	[1]	LUBE NIPPLE,1/8" - 27 NPTF	CAS Superseded by part number: 80710
. .	1346268C1	[1]	GLAND	IH ASSY., cylinder, if used, no longer available, order 1346267C1 Superseded by part number: 84155087, 1346269C1
. .	1346267C1	[1]	GLAND	IH ASSY., cylinder, if used, Replaces: 1346268C1, Includes: Ref. 5 - 11, outside diameter of gland does not have a groove, no longer available, order Ref. 22 - 28 Superseded by part number: 84155087, 1346269C1
5	D95144	[1]	WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk	CAS Wiper piston rod, outer
6	G107923	[1]	SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk	CAS U-cup, piston rod
7	NSS	[1]	NOT SOLD SEPARAT	CON GLAND cylinder, uses Ref. 6, 10
8	G109299	[1]	BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk	CAS Gland O-Ring
9	238-5239	[1]	O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro	CAS 3-5/8 x 1/8 inch wide Superseded by part number: 87016952
10	G107997	[1]	SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk	CAS buffer
11	G101533	[1]	WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk	CAS center
12	1346216C1	[1]	PISTON	IH cylinder
13	G100440	[1]	RING,Square, 5.28mm Thk x 88.01mm ID	CAS backup
14	G102285	[1]	SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk	CAS piston
15	G100448	[1]	RING,101.6mm OD, Ext	CAS wear
16	G32351	[1]	WASHER	CAS flat, hardened, special Superseded by part number: G104989
17	28-2044	[1]	BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8	CAS
18	1346166C3	[1]	HYD CYL SLEEVE	IH TUBE ASSY., Includes: Ref. 19, 20
19	R55649	[1]	BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W	CAS self-aligning
20	100-21315	[2]	SNAP RING,3.156", Int, #315	CAS Bushing Superseded by part number: 9670291
