1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F 850E 855E 680K Loader Backhoe
Price:
Negotiation
MOQ:
Acceptable Trial Order
Delivery Time:
3-5 Days After Payment Received(Public Holiday Excluded)
Brand:
CASE
Product Description

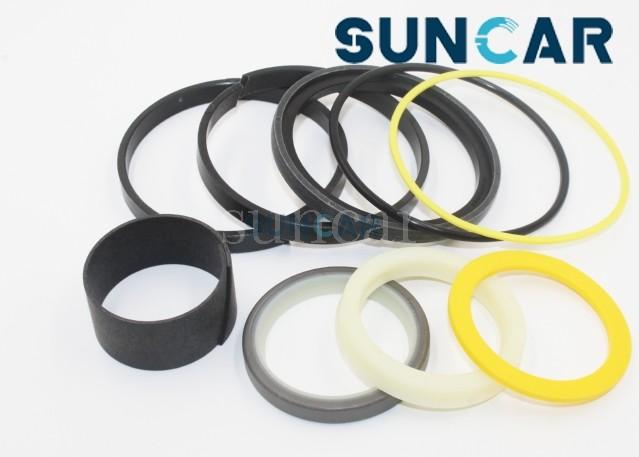

1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F, 850E, 855E, 680K
| Product Name | 1543274C1 Hydraulic Cylinder Repair Seal Kit Fits Case 480F, 850E, 855E, 680K |
|---|---|
| Part No. | 1543274C1 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Applicable Industries | Machinery repair shops, construction works, energy |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | C.A.Terpillar Articulated Truck & Ejector Truck |
| Condition | New |
| Suitable Model |
(850E) - CASE LONG TRACK CRAWLER TRACTOR (1/92-12/94)
|
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

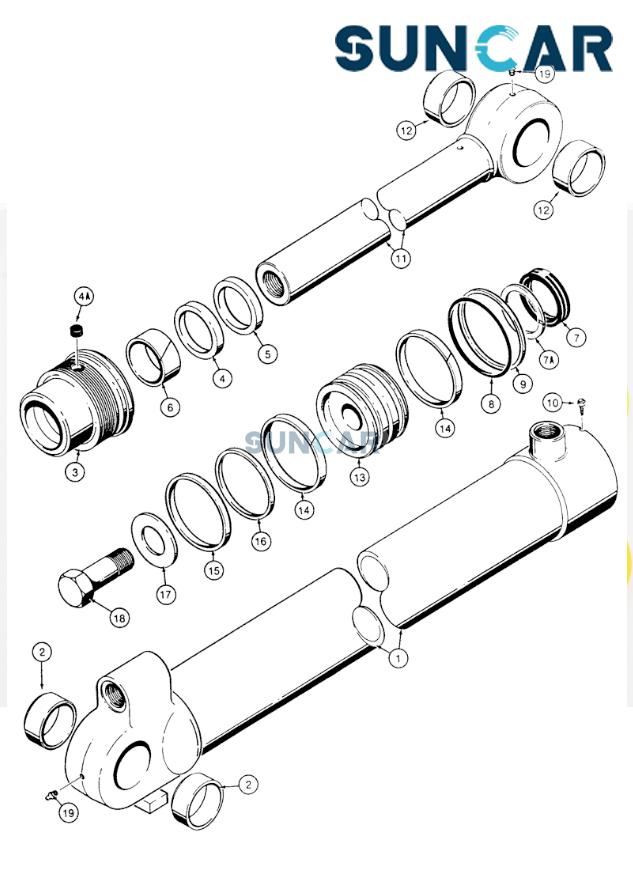

Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| . . | G101210 | [2] | CYLINDER | CAS ASSEMBLY - 3-1/2 inch (89 mm) ID x 37-1/4 inch (946 mm) stroke loader bucket |
| 1 | G101559 | [1] | TUBE,45.69" L | CAS - cylinder |
| 2 | CASD37723 | [2] | BUSHING | CAS - tube |
| 3 | 1543021C1 | [1] | CYLINDER END CAP | IH GLAND - cylinder |
| 4 | NSS | [1] | NOT SOLD SEPARAT | CON RING - retaining, gland |
| 4A. | G102569 | [1] | PLUG | CAS - nylon, thead locking, gland, if used |
| 5 | D95144 | [1] | WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk | CAS Wiper - piston rod |
| 6 | G101533 | [1] | WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk | CAS BUSHING - center |
| 7 | G107923 | [1] | SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk | CAS - U-cup, piston rod, wide, with O-ring |
| 7 | G100778 | [1] | SEAL | CAS - U-cup, piston rod, service option - severe heat or cold |
| 7A. | G107997 | [1] | SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk | CAS - piston rod, narrow |
| 8 | 238-5238 | [1] | O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro | CAS Gland -238, 70 Duro, 3.484" ID x .139" Thk Superseded by part number: 87421145 |
| 9 | G32126 | [1] | BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk | CAS - backup, gland O-ring |
| 10 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" | CAS SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used Superseded by part number: 86642312 |
| 11 | G35453 | [1] | ROD | CAS - piston, 2 inch (51mm) diameter |
| 12 | CASD37723 | [2] | BUSHING | CAS - rod |
| 13 | G100692 | [1] | PISTON | CAS - cylinder |
| 14 | G100711 | [2] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk | CAS |
| 15 | G100710 | [1] | RING,Square, 5.28mm Thk x 75.31mm ID | CAS - backup, piston seal |
| 16 | G102286 | [1] | SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk | CAS - piston |
| 17 | G32351 | [1] | WASHER | CAS - flat, hardened, special Superseded by part number: G104989 |
| 18 | 28-2044 | [1] | BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8 | CAS - Hex, 1-1/4"-12 NF x 2-3/4", G8 |
| 19 | 219-1 | [2] | LUBE NIPPLE,1/8" - 27 NPTF | CAS FITTING - grease, straight, 1/8 PT x 21/32 inch long Superseded by part number: 80710 |
| . . | 1543274C1 | [1] | SEAL KIT | IH KIT - seal, Includes: Ref. 5, 6, 7 (G107923), 7A, 8, 9 and 14-16. |
PRODUCT SHOW:
