1543262C1 LOADER LIFT CYLINDER SEAL KIT FOR CASE LOADER BACKHOE 480F, 580SK, 480F LL, 680K
Price:
Negotiation
MOQ:
Acceptable Trial Order
Delivery Time:
3-5 Days After Payment Received(Public Holiday Excluded)
Brand:
CASE
Product Description

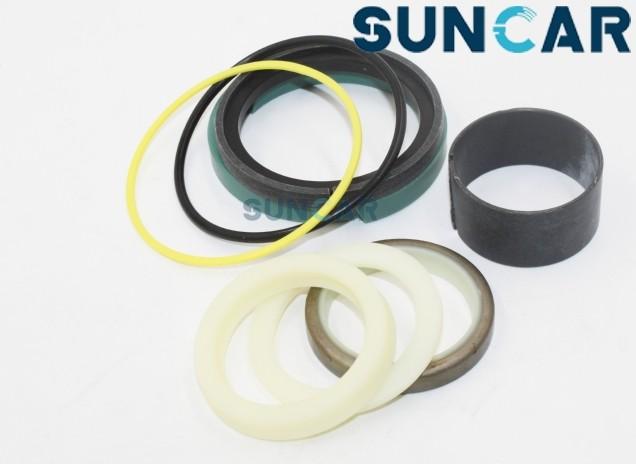

1543262C1 LOADER LIFT CYLINDER SEAL KIT FOR CASE LOADER BACKHOE 480F, 580SK, 480F LL, 680K
| Product Name | 1543262C1 LOADER LIFT CYLINDER SEAL KIT FOR CASE LOADER BACKHOE 480F, 580SK, 480F LL, 680K |
|---|---|
| Part No. | 1543262C1 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent |
| Applicable Industries | Machinery repair shops, construction works, energy |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We Accept Trial Order |
| Packing | PP BAG & CARTON BOX( According To Your Requirements) |
| Delivery Time | 3-5 Days After Payment Received(Public Holiday Excluded) |
| Payment | Western Union, L/C, T/T, etc. |
| Port | HUAGNPU,China (Mainland) |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| AppliC.A.Tion | CASE |
| Condition | New |
| Suitable Model |
(480F) - CASE CONSTRUCTION KING LOADER BACKHOE (9/89-12/94)
|
The Following Seal Kits We Also Can Supply:
* Hydraulic Pump Seal Kit
* Control Valve Seal Kit
* O Ring Kit Box
* Gear Pump Seal Kit
* Travel Motor Seal Kit
* Swing Motor Seal Kit
* Pilot Valve Seal Kit/ PPC Seal
* Adjuster Seal Kit
* Center Joint Seal Kit
* Boom Cylinder Seal Kit
* Arm Cylinder Seal Kit
* Bucket Cylinder Seal Kit
* Breaker Hammer Seal Kit
Customer Service:
- If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
- Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
- If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
Positive feedback is very important to us.

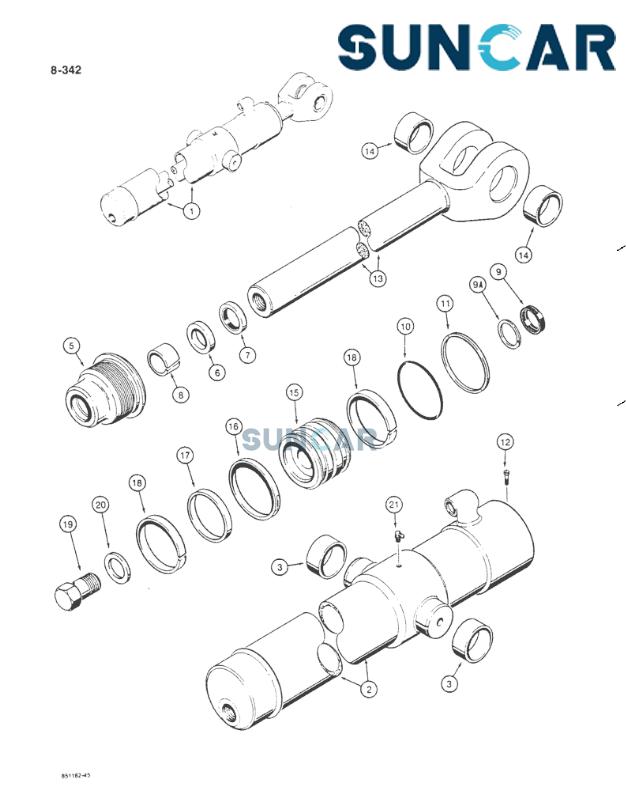

Related Parts:
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | G101220 | [2] | CYLINDER ASSY. | CAS CYLINDER ASSEMBLY - 3" (76 mm) ID x 23-9/16" (598 mm) stroke, bucket tilt, Includes: Ref. 2 - 21 |
| 2 | D35102 | [1] | TUBE | CAS ASSEMBLY - cylinder, Includes: Ref. 3 |
| 3 | G103411 | [2] | BUSHING,38mm ID x 47.4mm OD x 20.57mm L | CAS - tube |
| . . | G104240 | [1] | GLAND | CAS ASSEMBLY - cylinder, Includes: Ref. 5 - 11 Superseded by part number: 1543263C1, 1542986C1 |
| 5 | NSS | [1] | NOT SOLD SEPARAT | CON GLAND - cylinder |
| 6 | G34600 | [1] | RING | CAS - retaining, bushing (Replaces NSS) |
| 7 | 1-7768 | [1] | WIPER SEAL | L WIPER - piston rod, outer Superseded by part number: D95143 |
| 8 | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk | CAS - center |
| 9 | G107922 | [1] | SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk | CAS - U-cup, with O-ring, piston rod, wide |
| 9 | G100777 | [1] | SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk | CAS - U-cup, piston rod, service option - severs heat or cold |
| 9A. | G109094 | [1] | SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk | CAS - buffer, grooved, piston rod, narrow |
| 10 | 238-5234 | [1] | O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro | CAS Gland -234, 70 Duro, 2.984" ID x .139" Thk Superseded by part number: 9617975 |
| 11 | G32122 | [1] | BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk | CAS - backup, gland O-ring |
| 12 | 276-2446 | [1] | SELF-TAP SCREW,Hex Hd, #8 x 3/8" | CAS SCREW - hex hd, slotted, self-tapping, No. 8 - 32 NC x 3/8", plated Superseded by part number: 86642312 |
| 13 | G33563 | [1] | ROD | CAS ASSEMBLY - piston, 1-3/4" (44 mm) O.D., Includes: Ref. 14 |
| 14 | D32865 | [2] | BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L | CAS - piston rod |
| 15 | G100704 | [1] | PISTON | CAS - cylinder |
| 16 | G102288 | [1] | SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk | CAS - Piston |
| 17 | G100444 | [1] | SEALING RING,Square, 5.28mm Thk x 62.61mm ID | CAS RING - backup, piston seal |
| 18 | G32033 | [2] | RING | CAS - wear, piston Superseded by part number: G100449 |
| 19 | 25974R1 | [1] | BOLT,Hex, 1" - 14 x 2 1/2", Gr 8 | IH - hex head, 1" - 14 NS x 2-1/2", grade 8 |
| 20 | G32303 | [1] | WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk | CAS - hardened |
| 21 | 77081 | [1] | FITTING | HFI - grease, 45 degree, special short, 1/8" NPT Superseded by part number: 80717 |
| . . | 1543262C1 | [1] | SEAL KIT | IH KIT - seal, Includes: Ref. 7, 8, 9 (G107922), 9A - 11 and 16 - 18 |
PRODUCT SHOW:
