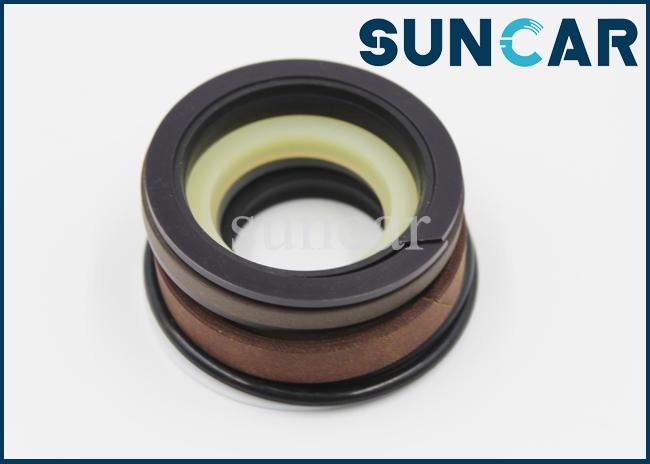

707-98-10950 WA100 WA150 Komatsu Wheel Loader Hydraulic Cylinder Seal Kit Replacement
707-98-10950 WA100 WA150 Komatsu Wheel Loader Hydraulic Cylinder Seal Kit Replacement
| Product Name | 707-98-10950 WA100 WA150 Komatsu Wheel Loader Hydraulic Cylinder Seal Kit Replacement |
| Seal Kit Part Number | 707-98-10950 / 7079810950 |
| Brand | SUNCAR/OEM |
| Condition | 100% Brand New |
| MOQ | Negotiation |
| Material | PU , Rubber , PTFE , NBR , HNBR |
| Hardness | 70-90 Shore A |
| Feature | Resistance to oil, weather, abrasion, solvent etc. |
| Availability: | In Stock |
| Supply Ability | 5000 Piece/Pieces per Month |
| AppliC.A.Tion | Komatsu Wheel Loader System |
| Packing Detail | Neutral Packing, Original Packing, Carton Packing(or at your request) |
| Delivery Time | 5-7 days after payment received(public holiday excluded) |
| Payment Policy | Western Union, L/C, T/T, , D/A, D/P etc. |
| Model | WA100 WA150 Komatsu Wheel Loader |
| Shipping Policy | By International Express(Fedex,TNT,UPS,DHL)Or Ship |
Our main product lines applied to all Excavator brand and models, partially listed as below:
Komatsu Excavator :
PC30,PC50UU, PC28UG, PC40, PC50UG, PC56, PC60, PC75, PC100, PC120, PC128UU, PC75UU, PC130, PC55MR, PC210-8, PC60-8, PC110-7, PC130-7, PC160LC-7, PC200-8, PC200LC-8, PC210LC-8, PC220-8, PC240LC-8, PC270-8, PC300-7, PC360-7, PC400-8, PC450-8 etc.
Komatsu wheel loader :
WA120-2,WA470-6,WA475,WA270-7,WA270-1,WA200-1,WA150-3,WA500-8,WA250-6,WA100-1,WA150-1,WA320-8,WA380,WA320-6,WA430-6
,WA350-1,WA420-3,WA120-1,WA120-5,WA380-2,WA420-1,WA600 etc.
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6.if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
KOMATSU Model Hydraulic Cylinder repair parts:
| Pos. | Part No | Qty | Parts name |
| G-1. | 707-00-XZ830 | [1] | CYLINDER ASSEMBLY,L.H. (FINAL COATING) |
| G-2. | 707-00-XZ840 | [1] | CYLINDER ASSEMBLY,R.H. (FINAL COATING) |
| 707-00-0E800 | [1] | CYLINDER ASSEMBLY,L.H. | |
| 707-00-0E810 | [1] | CYLINDER ASSEMBLY,R.H. | |
| 1. | 707-11-55550 | [1] | CYLINDER,L.H. |
| 707-11-55560 | [1] | CYLINDER,R.H. | |
| 2. | 02896-11012 | [2] | O-RING (KIT) |
| 3. | 707-76-30320 | [1] | BUSHING |
| 4. | 07145-00030 | [2] | SEAL,DUST (KIT) |
| 5. | 07040-11007 | [1] | PLUG |
| 6. | 07002-11023 | [1] | O-RING (KIT) |
| 7. | 07020-00000 | [1] | FITTING,GREASE |
| 8. | 707-29-60170 | [1] | HEAD,CYLINDER |
| 9. | 07177-03025 | [1] | BUSHING |
| 10. | 707-51-30030 | [1] | PACKING,ROD (KIT) |
| 11. | 707-56-30510 | [1] | SEAL,DUST (KIT) |
| 12. | 07179-12042 | [1] | RING,SNAP |
| 13. | 07000-12055 | [1] | O-RING (KIT) |
| 14. | 07146-02051 | [1] | RING,BACK-UP (KIT) |
| 15. | 07000-13050 | [1] | O-RING (KIT) |
| 16. | 721-58-30510 | [1] | ROD,PISTON |
| 19. | 07020-00675 | [1] | FITTING,GREASE |
| 20. | 707-36-55050 | [1] | PISTON |
| 21. | 707-44-55180 | [1] | RING,PISTON (KIT) |
| 22. | 707-39-55110 | [1] | RING,WEAR |
| 23. | 707-67-22010 | [1] | NUT,NYLON |
| 24 | 416-62-31310 | [1] | TUBE,L.H. |
| 416-62-31320 | [1] | TUBE,R.H. | |
| 25 | 01435-01020 | [1] | BOLT |
| KIT. | 707-98-10950 | [2] | SERVICE KIT,STEERING CYLINDER |
