707-98-24120 Lift Cylinder Seal Kit For Wheel Loader WA80-3 Komatsu Machinery Hydraulic Cylinder
Price:
Negotiation
MOQ:
Acceptiable trial order
Delivery Time:
3-5 days after payment received(public holiday excluded)
Brand:
SUNCAR
Product Description

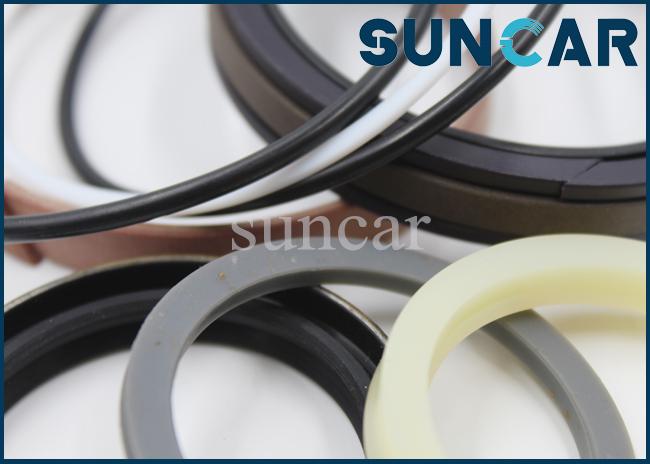

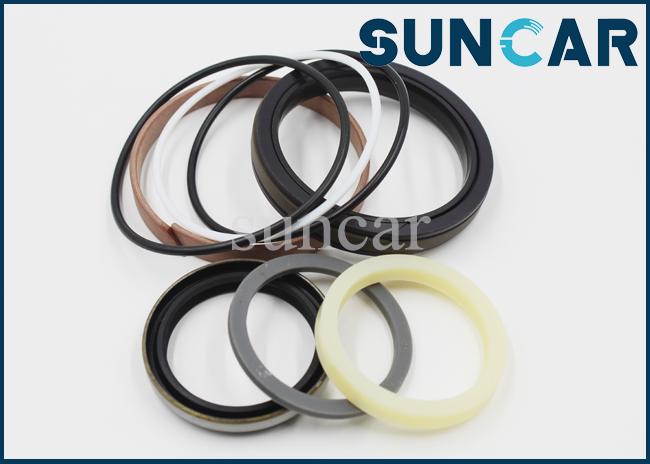

707-98-24120 Lift Cylinder Seal Kit For Wheel Loader WA80-3 Komatsu Machinery Hydraulic Cylinder
| Model No. | WA80-3 | Packing | PP bag inside, carton box outside or as your required |
| Material | NBR+KFM+PTER+PU | MOQ | 1set |
| Size | Standard | Brand | SUNCAR |
| Hardness | 700degree~95degree | Temperature | -35~220℃ |
| Pressure | 0~0.05Mpa | Feature | Oil-resistant, heat resistant,Durable |
| Color | as your request | Loading Port | Huangpu port,China |
| AppliC.A.Tion | Komatsu wheel loader seal kit | Payment terms | T/T, Western union, paypal, |
| trade assurance or as require | |||
| CertifiC.A.Tes | ISO9001 | Delivery time | Within 5-7 days |
| Warranty | 1 months | Shipment | By sea, by air, by express or as required |
Our Advantage:
Experienced sealing products supplier.
Professional design team and sales department for your service.
All the questions will be dealt in 24 hours.
Stable quality---coming from good materials.
Lower price---Not cheapest but the lowest at the same quality.
Good service---satisfied service before and after sale.
Your inquiry will be replied in one working day.
Order Process:
- Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
- Quoting our competitive price for you
- Place an order after approving the quotation or products
- We will send Proforma Invoice or sales confirmation
- You prepay by T/T or L/C or Western Union or ESCROW through bank
- We will starting to produce after we get your kind payment
- Packing
- Shipping the goods to your(our)forwarder
- Sending all doc for your custom clearance
- Time to reorder

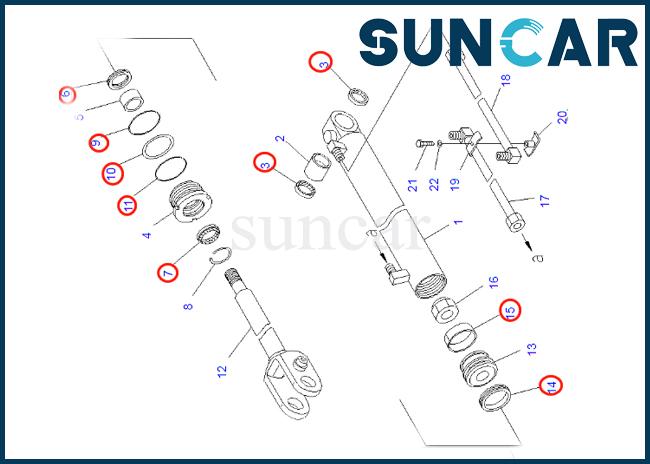

| Pos. | Part No | Qty | Parts name | Comments |
| G1. | 707-00-X2360 | [1] | CYLINDER | |
| 707-00-02360 | [2] | CYLINDER ASSEMBLY | ||
| 1. | 721-11-80720 | [1] | CYLINDER | |
| 2. | 707-76-45060 | [1] | BUSHING | 0.285 kg. |
| 3. | 07145-00045 | [2] | SEAL,DUST (KIT) | 0.014 kg. |
| 4. | 707-29-80730 | [1] | HEAD,CYLINDER | |
| 5. | 07177-04530 | [1] | BUSHING | 0.09 kg. |
| 6. | 707-51-45030 | [1] | PACKING,ROD (KIT) | 0.014 kg. |
| 7. | 112-63-15370 | [1] | SEAL,DUST (KIT) | 0.23 kg. |
| 8. | 07179-12057 | [1] | RING,SNAP | 0.005 kg. |
| 9. | 07000-12075 | [1] | O-RING (KIT) | 0.03 kg. |
| 10. | 07146-02076 | [1] | RING,BACK-UP (KIT) | 0.018 kg. |
| 11. | 07000-02080 | [1] | O-RING (KIT) | 0.003 kg. |
| 12. | 707-59-45230 | [1] | ROD,PISTON | |
| 13. | 707-36-80230 | [1] | PISTON | 1.3 kg. |
| 14. | 707-44-80180 | [1] | RING,PISTON (KIT) | 0.027 kg. |
| 15. | 07156-00810 | [1] | RING,WEAR (KIT) | 0.008 kg. |
| 16. | 01580-03024 | [1] | NUT,NYLON | 0.203 kg. |
| 17 | 707-86-45680 | [1] | TUBE | |
| 18 | 707-86-36051 | [1] | TUBE | |
| 19 | 707-88-94220 | [1] | CLIP | |
| 20 | 707-88-94230 | [1] | CLIP | |
| 21 | 01010-81020 | [1] | BOLT | 0.161 kg. |
| 22 | 01643-31032 | [1] | WASHER | 0.054 kg. |
| K. | 707-98-24120 | [1] | SERVICE KIT | 0.5kg |
