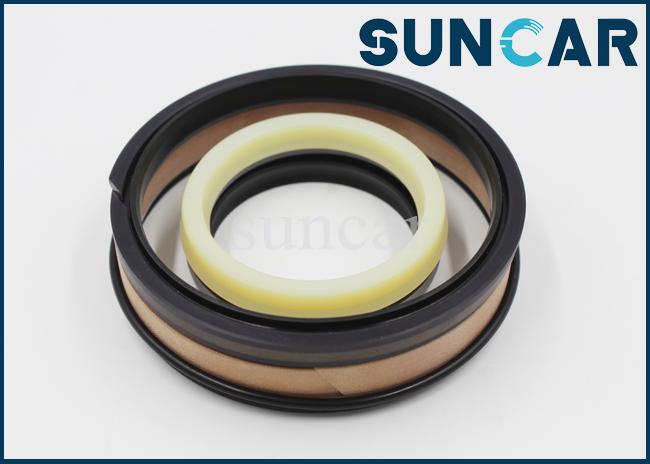

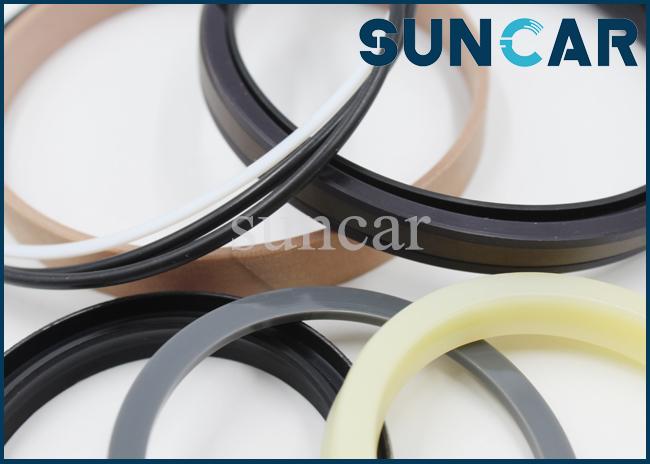

707-98-42150 Lift Cylinder Service Kit WA200-6 Hydraulic Cylinder Inner Oil Seal Replacement
707-98-42150 Lift Cylinder Service Kit WA200-6 Hydraulic Cylinder Inner Oil Seal Replacement
| Products Name: | 707-98-42150 Lift Cylinder Service Kit WA200-6 Hydraulic Cylinder Inner Oil Seal Replacement |
| Material: | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type: | Wheel Loader Inner Spare Parts |
| Model Number: | Komatsu WA200-5,WA200-6, WA200L,WA200PT,WA200PTL |
| Color: | As your require |
| Payment Terms: | Western Union, L/C, T/T, , D/A, D/P |
| Supply Ability: | 3000 Piece/Pieces per Month |
| MOQ: | 1 SET(negotiation) |
| Feature: | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name: | Suncar/OEM |
| CertifiC.A.Tion: | ISO9001 |
| Shipping Mode: | By air, by sea ,by express (DHL,Fedex,UPS ,TNT etc.) |
| Size | Standard Size |
| Weight | 0.3~0.5kg |
Our Service:
Experienced Sealing Products Supplier.
Professional Design Team And Sales Department For Your Service.
All The Questions Will Be Dealt In 24 Hours.
Stable Quality---Coming From Good Materials.
Lower Price---Not Cheapest But The Lowest At The Same Quality.
Good Service---Satisfied Factory Service Before And After Sale.
Delivery Time---7-15 Days For Mass Production.
Your Inquiry Will Be Replied In One Working Day.
Komatsu Relation Model:
| WA100-1 | WA115-3 | WA200-5 | WA270-5 | WA320-8 |
| WA100-3A | WA120-1 | WA200-6 | WA270-7 | WA350-1 |
| WA100-5 | WA120-3 | WA200-7 | WA300-1 | WA350-3 |
| WA100M-3 | WA150-1 | WA200-8 | WA300-3 | WA380-1 |
| WA100M-5 | WA150-3 | WA200PT-5 | WA300-5 | WA380-3 |
| WA100M-6 | WA150-5 | WA250-1 | WA320-1 | WA380-5 |
| WA100M-7 | WA180-1 | WA250-3 | WA320-3 | WA380-8 |
| WA100M-8 | WA180-3 | WA250-5 | WA320-5 | WA380-6 |
| WA100SS-1 | WA200-1 | WA250-6 | WA320-6 | WA380-7 |
| WA100SS-3 | WA200-3 | WA270-3 | WA320-7 | WA400-1 |
Komatsu WA200-5 S/N 65001-UP BOOM CYLINDER (INNER PARTS) :
| Pos. | Part No | Qty | Parts name | Comments |
| G1. | 707-00-XZ730 | [1] | CYLINDER ASSEMBLY,L.H. | |
| G1. | 707-00-XE720 | [1] | CYLINDER GROUP,L.H. | |
| G1. | 707-00-XZ740 | [1] | CYLINDER ASSEMBLY,R.H. | |
| G1. | 707-00-XE730 | [1] | CYLINDER GROUP,R.H. | |
| 707-00-0E720 | [1] | CYLINDER ASSEMBLY,L.H. | ||
| 707-00-0E730 | [1] | CYLINDER ASSEMBLY,R.H. | ||
| 1. | 721-11-12820 | [1] | CYLINDER,L.H. | |
| 721-11-12830 | [1] | CYLINDER,R.H. | ||
| 2. | 707-76-65580 | [1] | BUSHING | |
| 3. | 417-09-11120 | [2] | SEAL,DUST | 0.1 kg. |
| 4. | 707-29-12380 | [1] | HEAD,CYLINDER | |
| 5. | 707-52-10660 | [1] | BUSHING | 0.14 kg. |
| 6. | 707-51-65030 | [1] | PACKING,ROD (KIT) | 0.031 kg. |
| 7. | 144-63-92170 | [1] | SEAL,DUST (KIT) | 0.03 kg. |
| 8. | 07179-12079 | [1] | RING,SNAP | 0.011 kg. |
| 9. | 07000-12115 | [1] | O-RING (KIT) | 0.004 kg. |
| 10. | 07146-02116 | [1] | RING,BACK-UP (KIT) | 0.028 kg. |
| 11. | 07000-12120 | [1] | O-RING (KIT) | 0.004 kg. |
| 12. | 707-59-65070 | [1] | ROD,PISTON | |
| 13. | 707-36-12130 | [1] | PISTON | |
| 14. | 707-44-12180 | [1] | RING,PISTON (KIT) | 0.05 kg. |
| 15. | 07156-01215 | [1] | RING,WEAR (KIT) | 0.022 kg. |
| 16. | 707-67-45010 | [1] | NUT,NYLON | |
| 17. | 02896-11015 | [2] | O-RING (KIT) | 0.21 kg. |
| 18 | 707-86-47620 | [1] | TUBE | |
| 19 | 707-86-47630 | [1] | TUBE | |
| 21 | 707-88-86550 | [1] | PLATE | |
| 22 | 07283-32244 | [2] | CLIP | 0.086 kg. |
| 23 | 07283-52232 | [2] | SEAT | 0.029 kg. |
| 24 | 01597-01009 | [4] | NUT | 0.011 kg. |
| 25 | 01643-31032 | [4] | WASHER | 0.054 kg. |
| KIT. | 707-98-42150 | [2] | SERVICE KIT,LIFT CYLINDER | 0.2 kg. |
Contact Information:
If you are looking for a company to help you building your own brand of seals/ seal kits/ o-ring kits, or any other OEM services for other items. You have found the right one! Guangzhou Suncar Construction Machinery Co., Ltd. provides professional OEM services on seals/ seal kits/ o-ring kits and excavator spare parts. For more details, please contact us. We will reply you as soon as possible.
